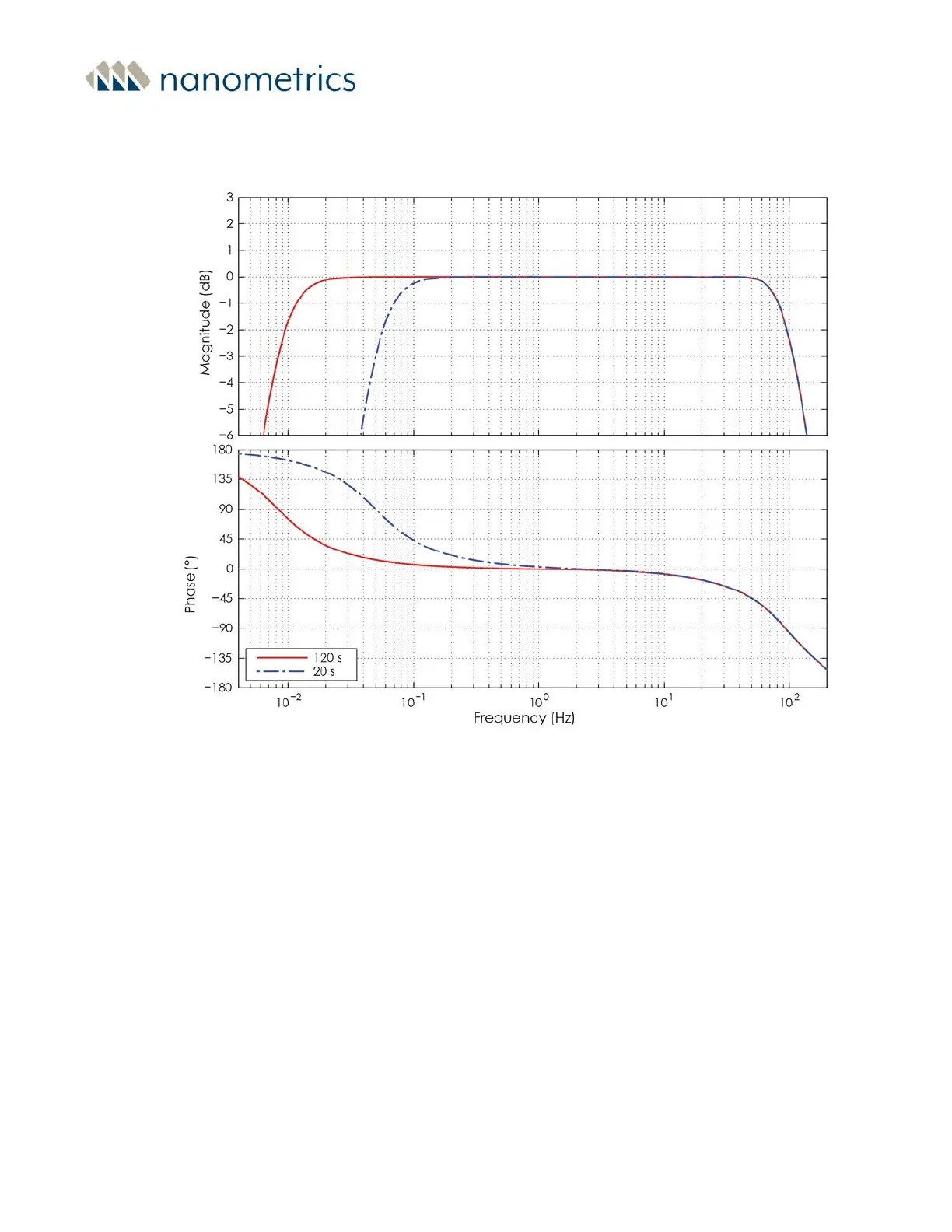

Figure 10-1 - Bode plot for 120 s and 20 s models
Table 10-1 provides the ground motion response nominal parameters for 120 s and 20 s
models. The ground motion sensitivity at f
0
assumes an infinite input impedance at the
digitizer.
Chapter 10 - Performance
16889R10 • 2020-11-12 Page 73
