12.2 Trillium Compact Posthole - models TC120-PH2, TC120-
PH2-XC, TC20-PH2 and TC20-PH2-XC
All dimensions are in millimeters unless otherwise stated.

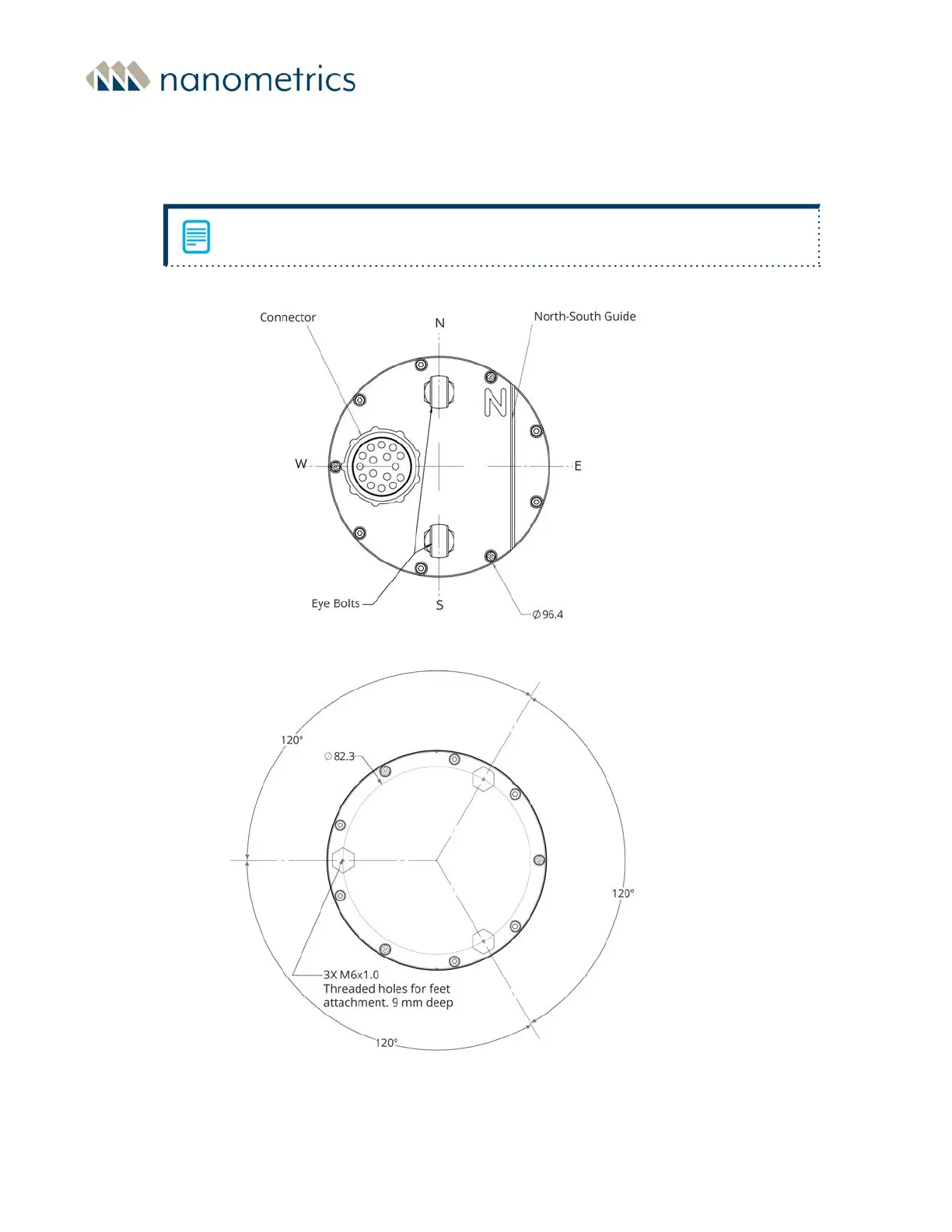

Figure 12-4 - Top view
Figure 12-5 - Bottom view
Chapter 12 - Features and Dimensions
16889R10 • 2020-11-12 Page 84
