EN
W415-3150 / B / 03.15.23
41
finishing
9.5 installing non-combustible board
Door
Top of
appliance
0” (0mm)
4” (101.6mm)
6” (152.4mm)
2” (50.8mm)
5” (127mm)
3”(76.2mm)
44.4
Non-combustible facing material must not project more than 4” (101.6mm) from the face of the door (all four
sides). If greater projections are desired, increase the clearance to the sides, bottom and top by 2” (50.8mm) for
every additional 1” (25.4mm) of projection. If using an optional surround, the same rule applies, starting from the
top of the surround. Ensure clearances are maintained for surround removal, as it must lift off the appliance for
maintenance.
Door
Optional
surround
Top of
appliance
4” (101.6mm)
6” (152.4mm)
2” (50.8mm)
5” (127mm)
B
B
A
A
Section A - A Section B - B
4”
(101.6mm)
Non-combustible panel shipped loose in carton.
note:
Joint Compound where required
Joint compounds such as Durabond 90 and tapes that are resilient to heat and cracking should be used when
taping and mudding seams.
Setting tiles and grouting
We recommend you use tiles with a dry butt joint to be installed using a two-part mortar with an acrylic latex
additive, such as Mapei Kerabond/Kerlastic, to allow for slight movement in the normal operation of the appliance.
If grout is used between the tiles, a polymer-based grout, such as Mapei Ultracolour plus, is recommended.
Primer/Paint
For a painted surface, use a 100% acrylic latex primer and finish coat. Light coloured paints may discolour.

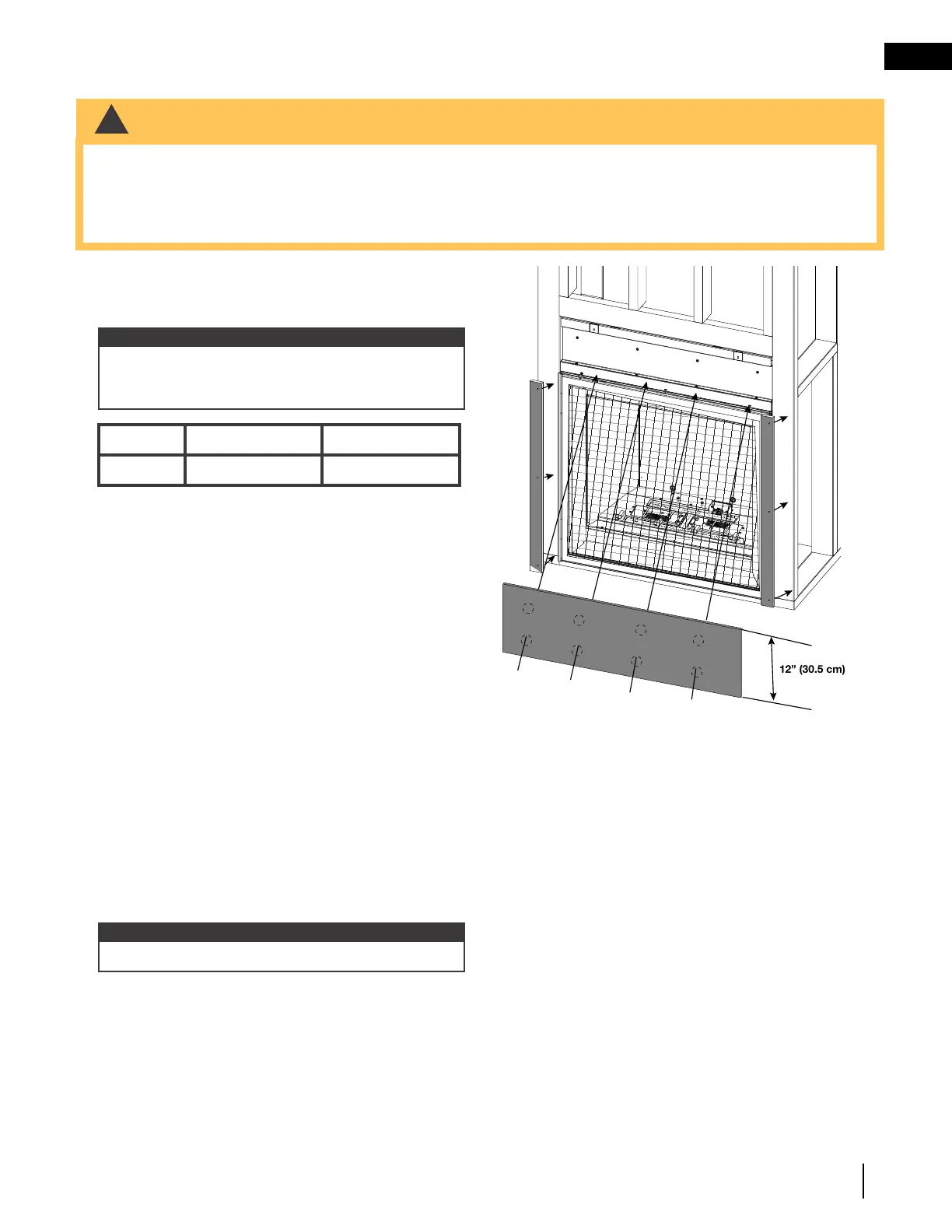

1. Align the non-combustible panel against the appliance.
2. Mark the non-combustible panel to pre-drill holes.
3. Secure the non-combustible panel to the appliance.
AX36-1 AX42-1
WIDTH
35 1/4” (89.5cm) 42 1/4” (107.3cm)
Do not notch the framing around the appliance
standoffs. Failure to maintain air clearance space
could cause overheating and/or fire.
note:
