Napoleon BHD4N - Framing Requirements

W415-1285 / A / 11.03.14
27
EN
45 1/2"
[1156mm]
46 1/2"
[1181mm]
A
46 1/2"
[1181mm]
A
B

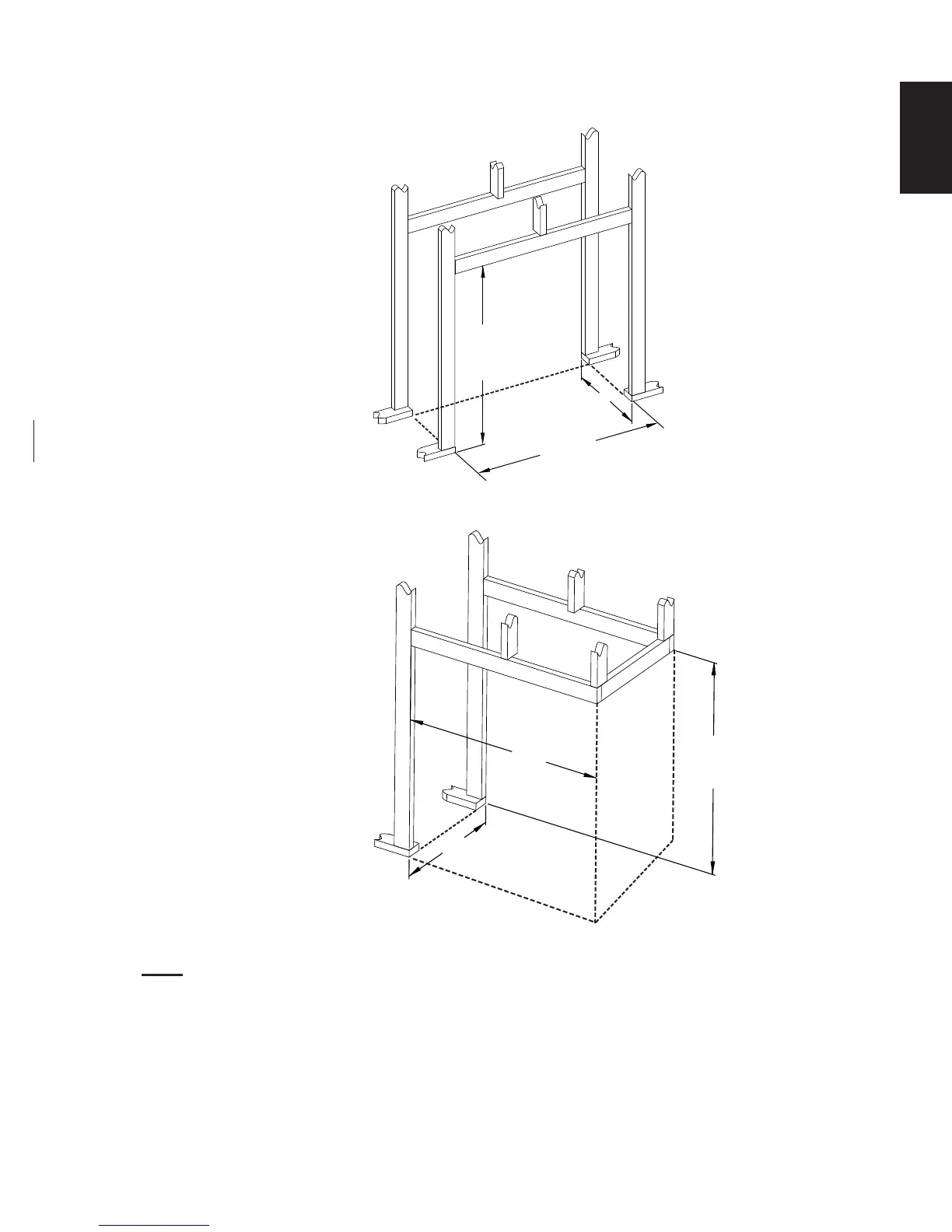

5.1 FRAMING
5.1.1 SEE-THRU FRAMING (BHD4ST)
5.1.2 PENINSULA FRAMING (BHD4P)
A: MIN 22 5/8" (575mm)
MAX 24 1/8" (613mm)
NOTE: All framing dimensions are based on the fi nishing material supports position. Framing may change
depending on the fi nishing material thickness. (See "FINISHING SUPPORT ADJUSTMENT" section).
A: MIN 22 5/8" (575mm)
MAX 24 1/8" (613mm)
B: MIN 42 1/2" (1080mm)
MAX 43 1/2" (1105mm)
