W415-1285 / A / 11.03.14
38
EN

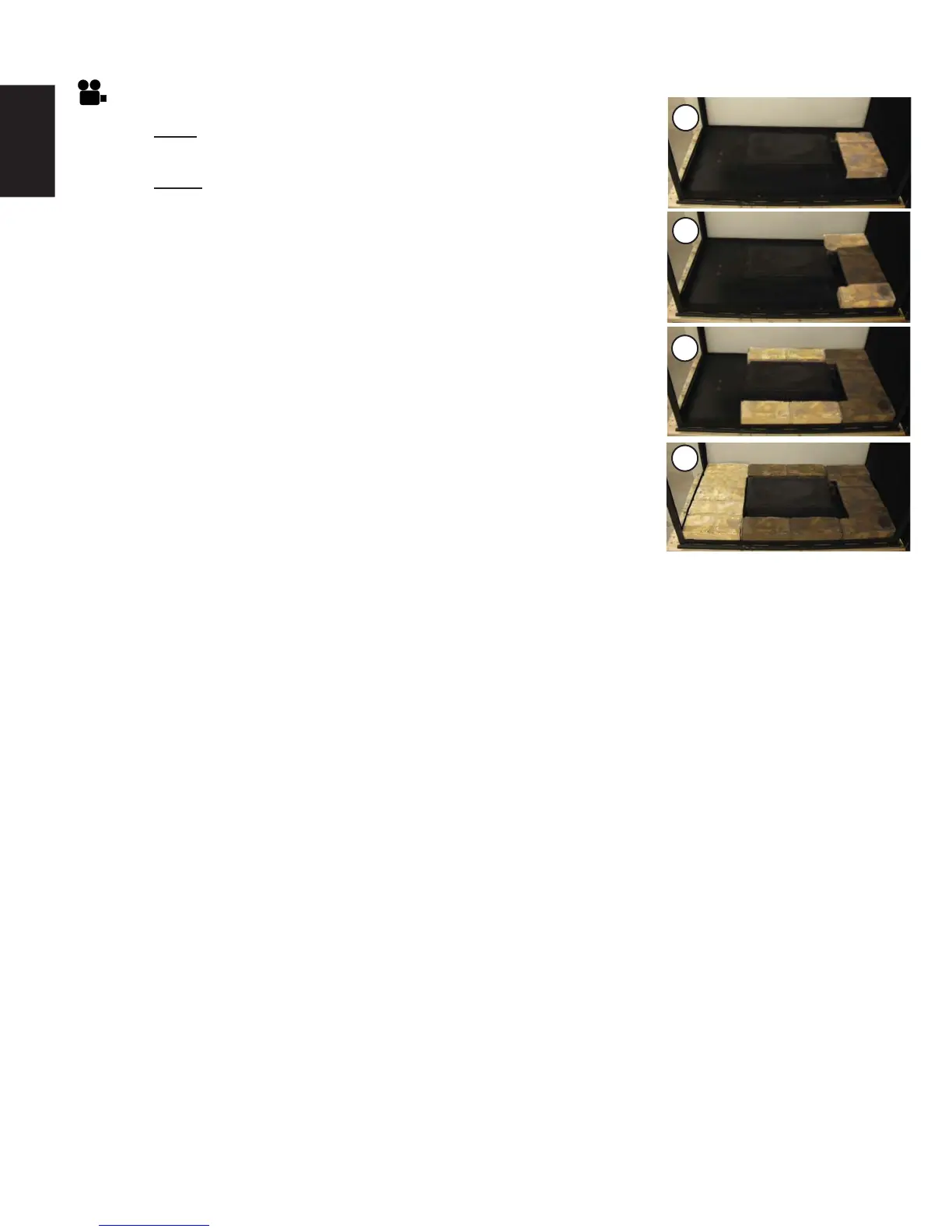

6.6 HEARTH PAD INSTALLATION
NOTE: The individual hearth pads can be easily identifi ed by the
numbers cast on the underside of each pad.
NOTE: The pilot is located on the right end in these instructions.
A. Remove the main doors from the appliance, refer to the "DOOR
REMOVAL/INSTALLATION" section.
B. Place the #3 hearth pad on the pilot side of the burner, as shown
in Figure B.
C. Place the #1A hearth pad on the right side and the #1 hearth pad
on the left side of appliance, as shown in Figure C.
D. Place the two #2 hearth pads on the right and left sides, as
shown in Figure D.
E. Place the #4 hearth pad on the left end, as shown in Figure E.
B
C
D
E
