Napoleon BHD4N - Wiring Diagram

W415-1285 / A / 11.03.14
44
EN

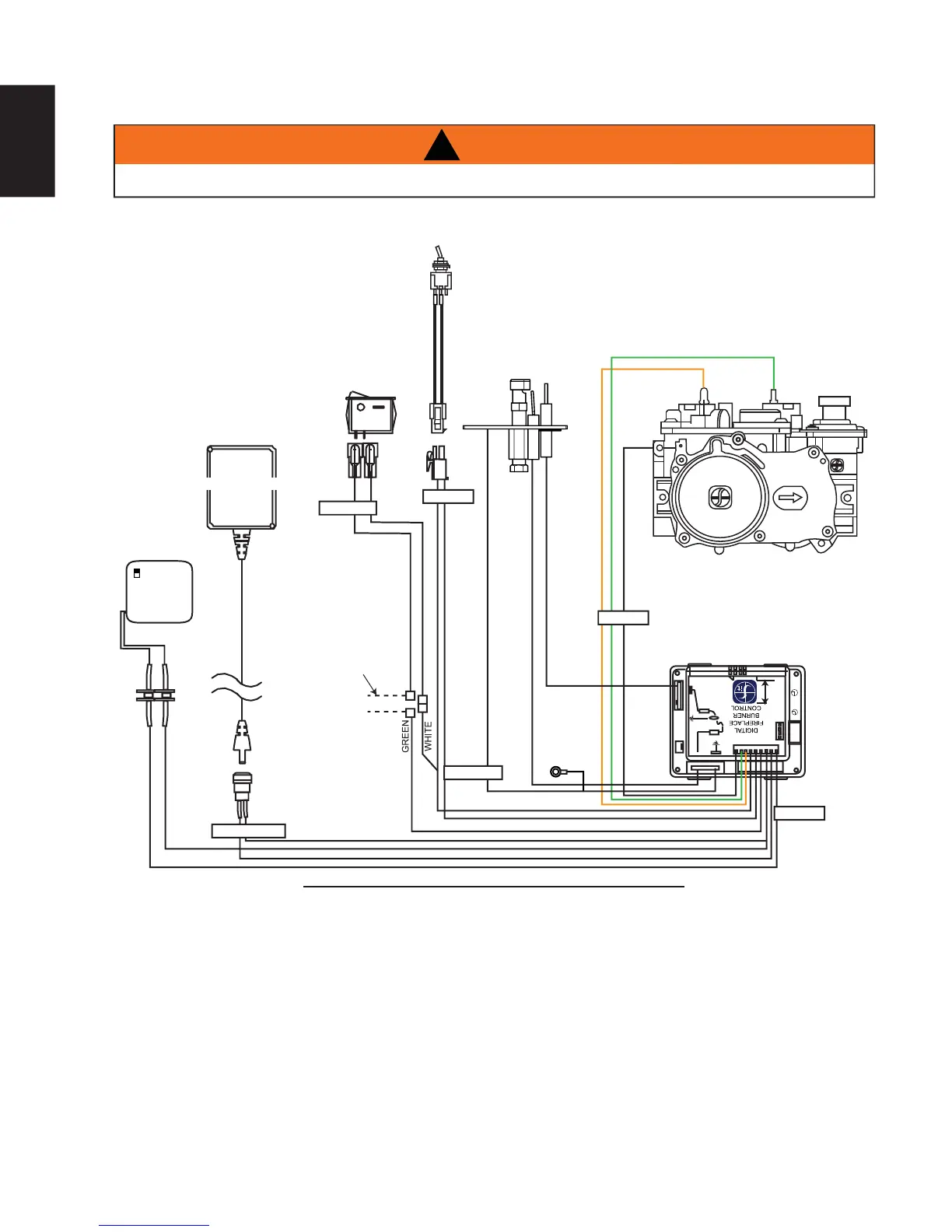

7.4 WIRING DIAGRAM
69.7
!
WARNING
DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH.
ON / OFF
SWITCH
ACS/IPI
SWITCH
BATTERY
HOUSING
(SUPPLIED IN
MANUAL BAGGIE)
GROUND
DFC
VALVE
ORANGE
GREEN
GROUND
EYELET
ON / OFF
IPI / CPI
DISCONNECT THESE
CONNECTIONS TO THE
ON/OFF SWITCH AND
CONNECT TO AN
OPTIONAL THERMOSTAT.
IPI BOARD
DC SUPPLY
TRANSFORMER
VALVE
ELECTRONIC
OFF ON
This appliance comes equipped with a battery back-up. If this back-up is used, install 4AA batteries (not
supplied) into the holder and connect to the wire harness.
