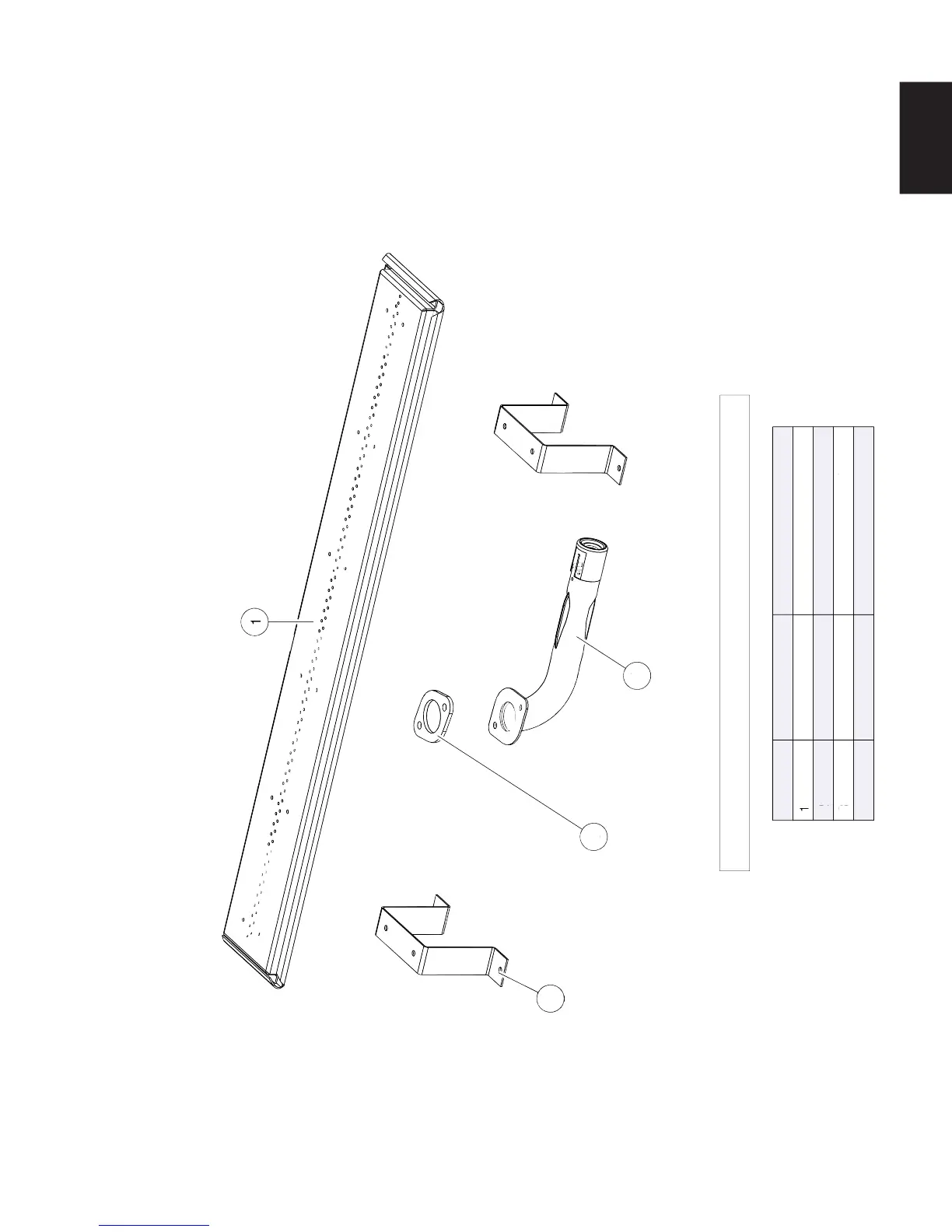

BHD4 GLASS BURNER (W100-0160)
REF. NO. PART NUMBER DESCRIPTION 1 W010-2954 BURNER ASSEMBLY 2 W080-1400 BURNER BRACKET (X2) 3 W290-0018 VENTURI GASKET 4 W720-0005 VENTURI
