3.3 SPECIAL VENT INSTALLATIONS
3.3.1 PERISCOPE TERMINATION

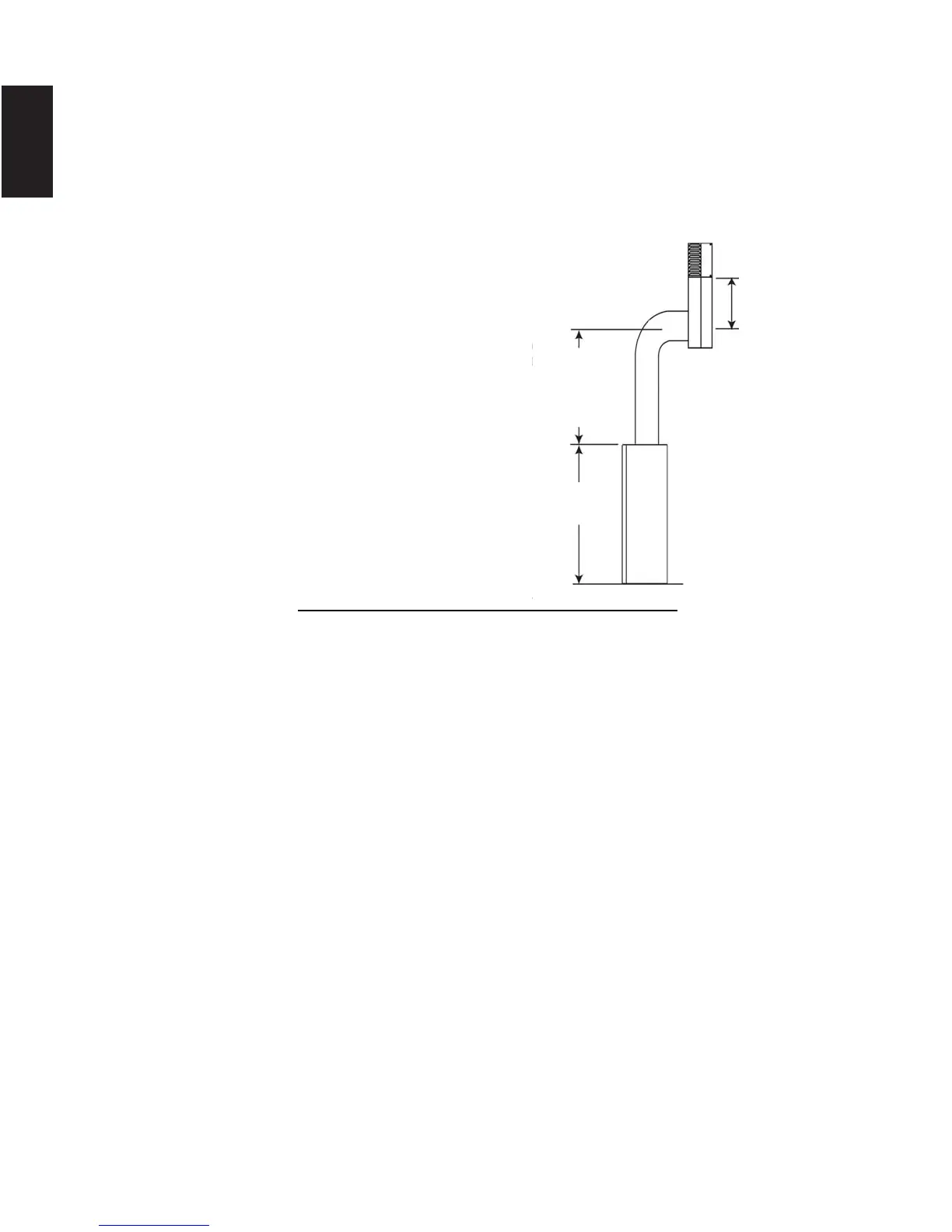

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that
when fi nal grading is completed, the bottom air slot is located a minimum 12” (304.8mm) above grade.
The maximum allowable vent length is 10’ (3.1m).
9.4B
12" (305MM)
MINIMUM
TO GRADE
30" (762MM)
MINIMUM
33 1/8"
(841MM)
