34
W415-1442 / C / 06.06.16
EN

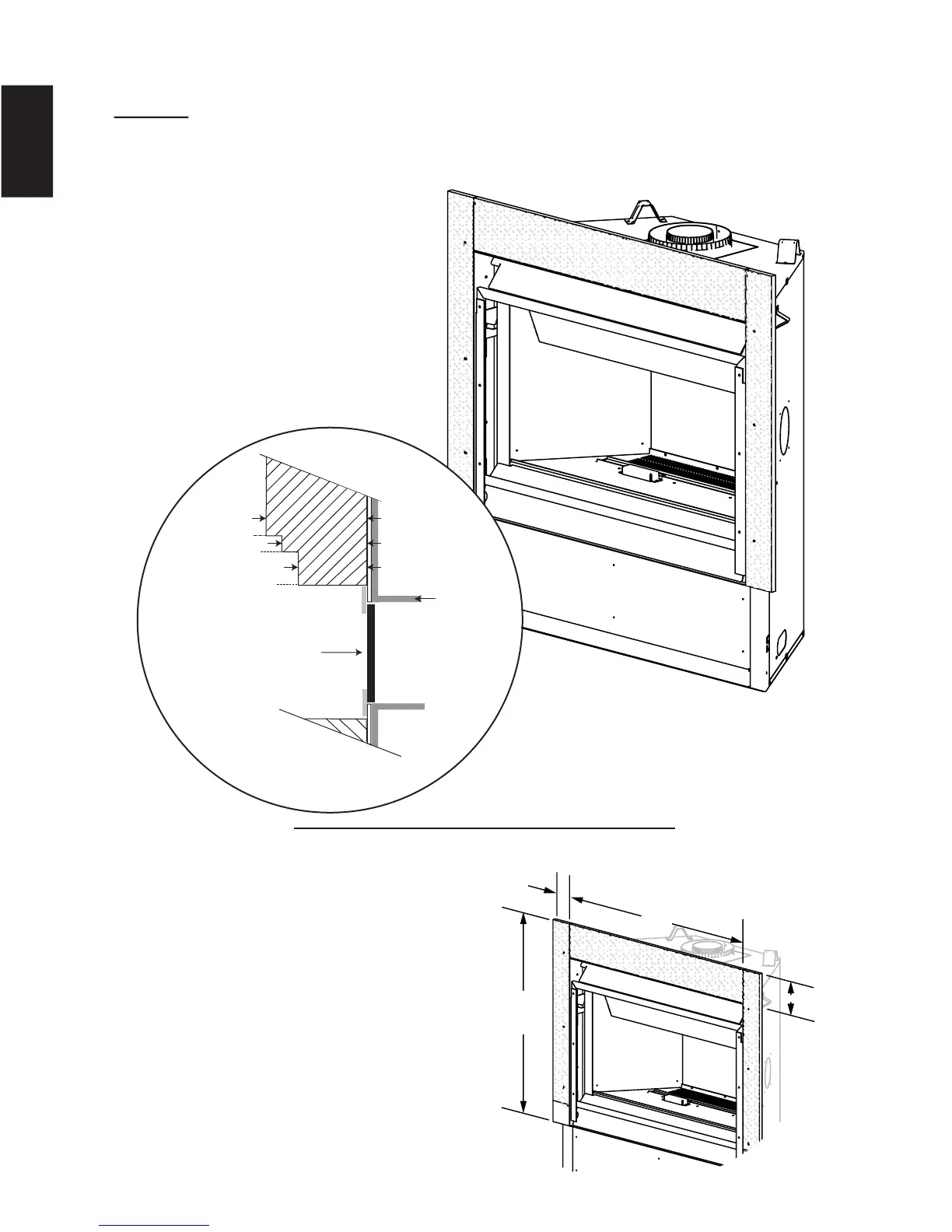

5.4 INSTALLATION OF NON-COMBUSTIBLE BOARD
71.8
WARNING: Non-combustible facing material must not project more than 4" (102mm) from the face of the door
(all three sides). If greater projections are desired, increase the clearance to the sides and top by 2" (51mm)
for every additional 1" (25mm) of projection. If using an optional surround, the same rule applies, starting from
the top of the surround. Ensure clearances are maintained for surround removal, as it must lift off the
appliance for maintenance.
DOOR WITH
SAFETY
BARRIER
TOP OF
APPLIANCE
4” (101.6mm)
6” (152.4mm)
2” (50.8mm)
0” (0mm)
5” (127mm)
3”(76.2mm)
4 1/2"
[ 144mm ]
3"
[ 76mm ]
31 1/2"
[ 800mm ]
27 1/8"
[ 689mm ]
