The minimum clearances required for installation and accessibility are shown below. These clearances should
NOTE
IMPORTANT: Prior to constructing interior closet walls in close proximity to the wall sleeve, the sealing of the wall sleeve and cabinet should be
completed. Sealing after the walls are constructed can be difficult. Poor sealing will result in cold air infiltration that will affect Condo Pack.
Refer to section "Sealing: Wall Sleeve and Condo Pack cabinet".
MINIMUM CLEARANCE
ADEQUATE SERVICE CLEARANCE MUST BE PROVIDED IN FRONT OF THE UNIT.
R
EQUIRED
DUE
TO
UNIT
’
S
DIMENSION
&
SAFETY
STANDARD
** A clear and unobstructed passageway (dimension AxB) shall be provided to the unit, in accordance with the requirements
of the local authorities having jurisdiction and with the National Electrical Code in the United States and the Canadian
Electrical Code CSA C22.1 Part 1 (latest edition) in Canada.
* The 32 " x 40 " unobstructed clearance is required in front of the unit for complete removal of heating module and the cabinet to access cooling
section components. Check local building codes for other applicable requirements.
0 "
MIN. CLEARANCE
2 "
MIN. CLEARANCE
DOOR OPENING
29 " REF.
DRAIN REQUIRED
(1.5" Ø MIN.)
FOR REMOVAL OF
AC CONDENSATE
Exterior wall Exterior wall
OUTSIDE
1 " REF.
CLEARANCE BETWEEN
LEFT (HINGE)
SIDE DOOR JAM
AND CONDO PACK
1.5 " Ø
0.25 "
MIN.
CLEARANCE
*32 "
**
A
8 " MIN.
2 " MIN.
CLEARANCE TO
COMBUSTIBLE
***
SECURE
TO WALL
FLOOR
**B
*
40 "
***Engineer/Architect - to consult with customer solutions if clarication is required to determine bracket location for setting the desired depth
of Wall Sleeve into wall.
FABRICATED WOOD OR STEEL SUPPORT
(Refer to the manual for design options).

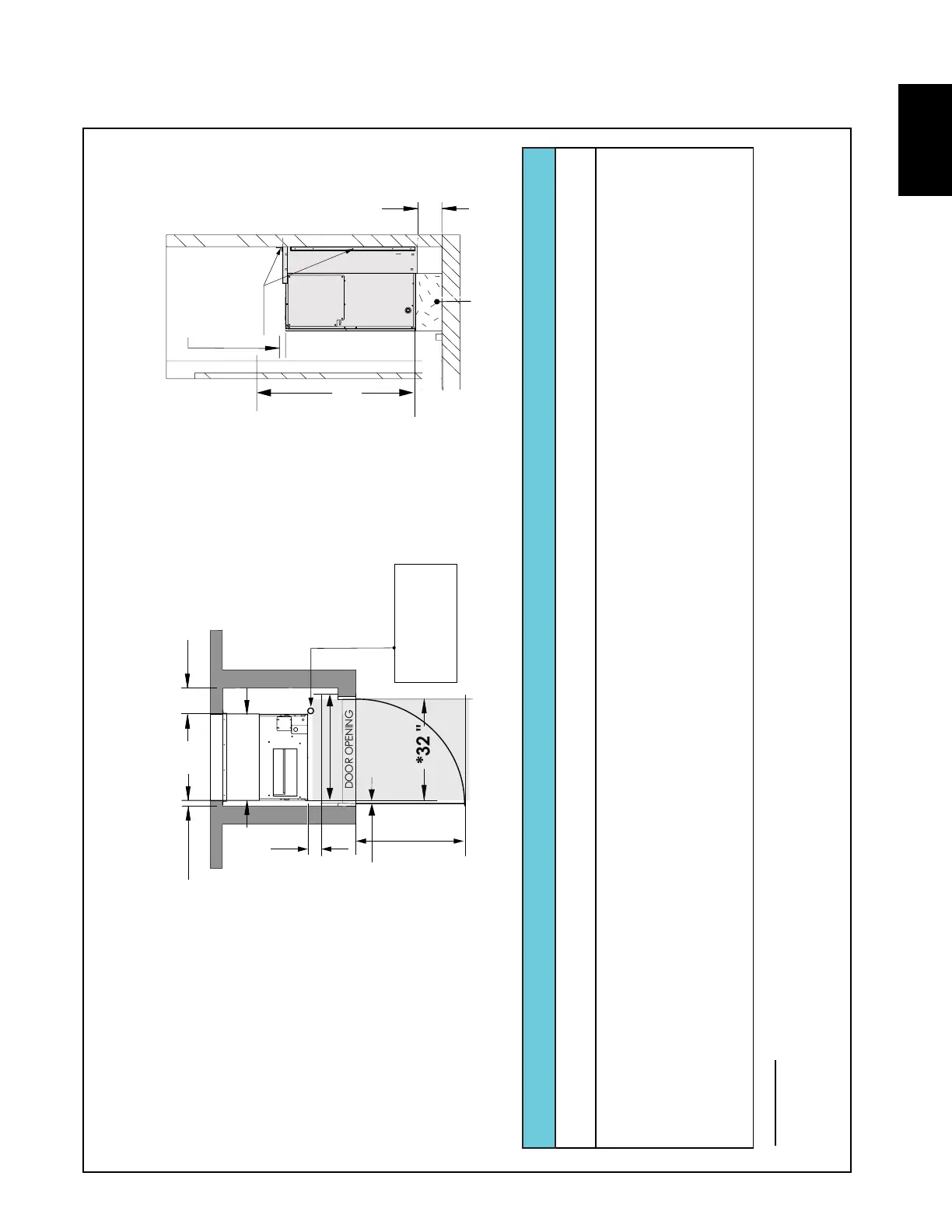

FIG. 4.2.1.A
