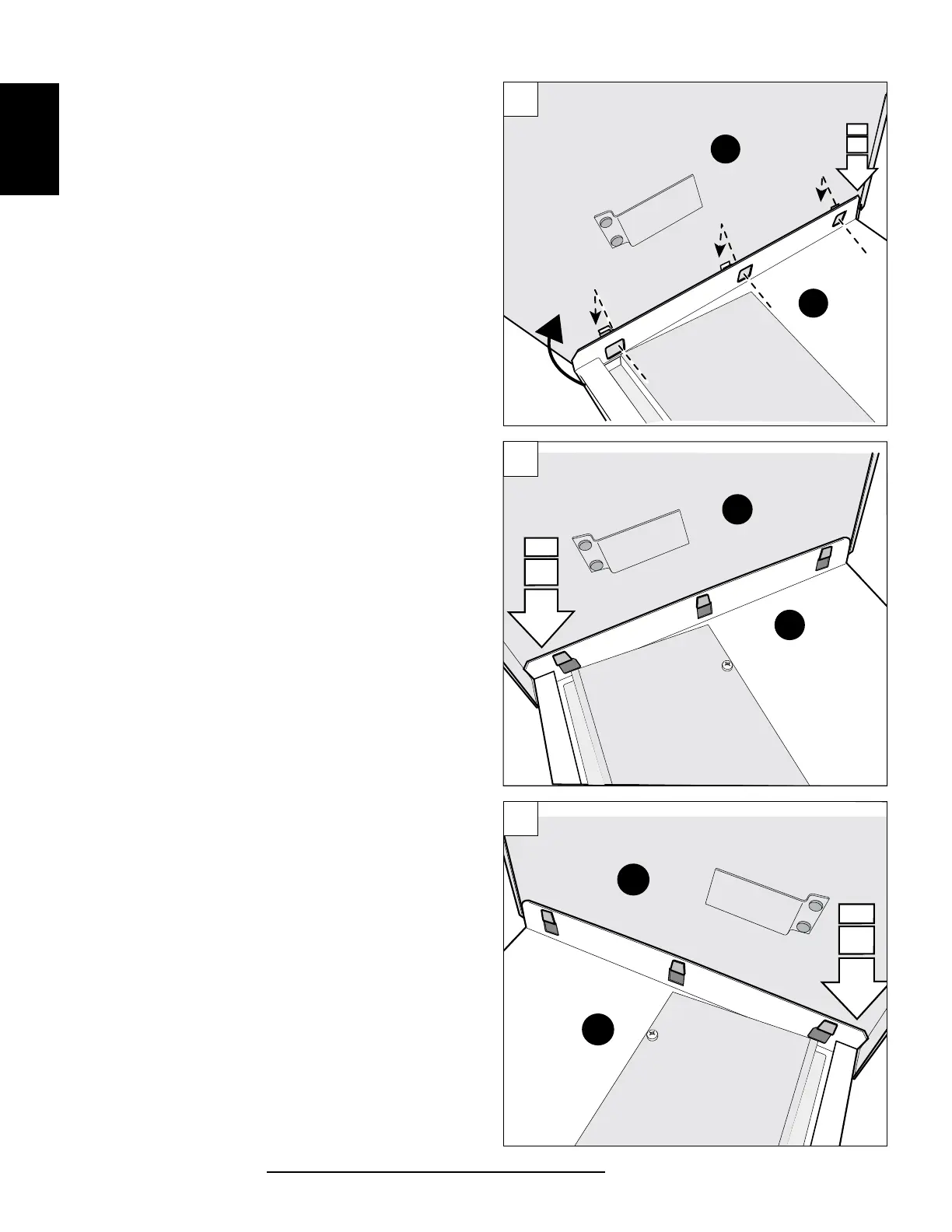

1. Place Base part (2) on the  oor
and attach Right Side Panel (3):
a. Position Base Panel (2)
to seat behind  anges
on the Side Panel (3).
b. Bring together panel
clips and the openings
(FIG. 1).
2. Press down  rmly to lock base
panel (2) into place (FIG. 2).
3. Attach Left Side Panel (4) to
Base Panel (2) (FIG. 3). Repeat
procedure from step 2.
a
b
3
2
2
Press down
4
3
2
1
a
b
3
2
2
Press down
4
3
2
2
a
b
3
2
2
Press down
4
3
2
3
4.4.1 Wall Sleeve Assembly
