Napoleon Condo Pack - Page 37

37
IOM
W415-2288 / 08.29.2019

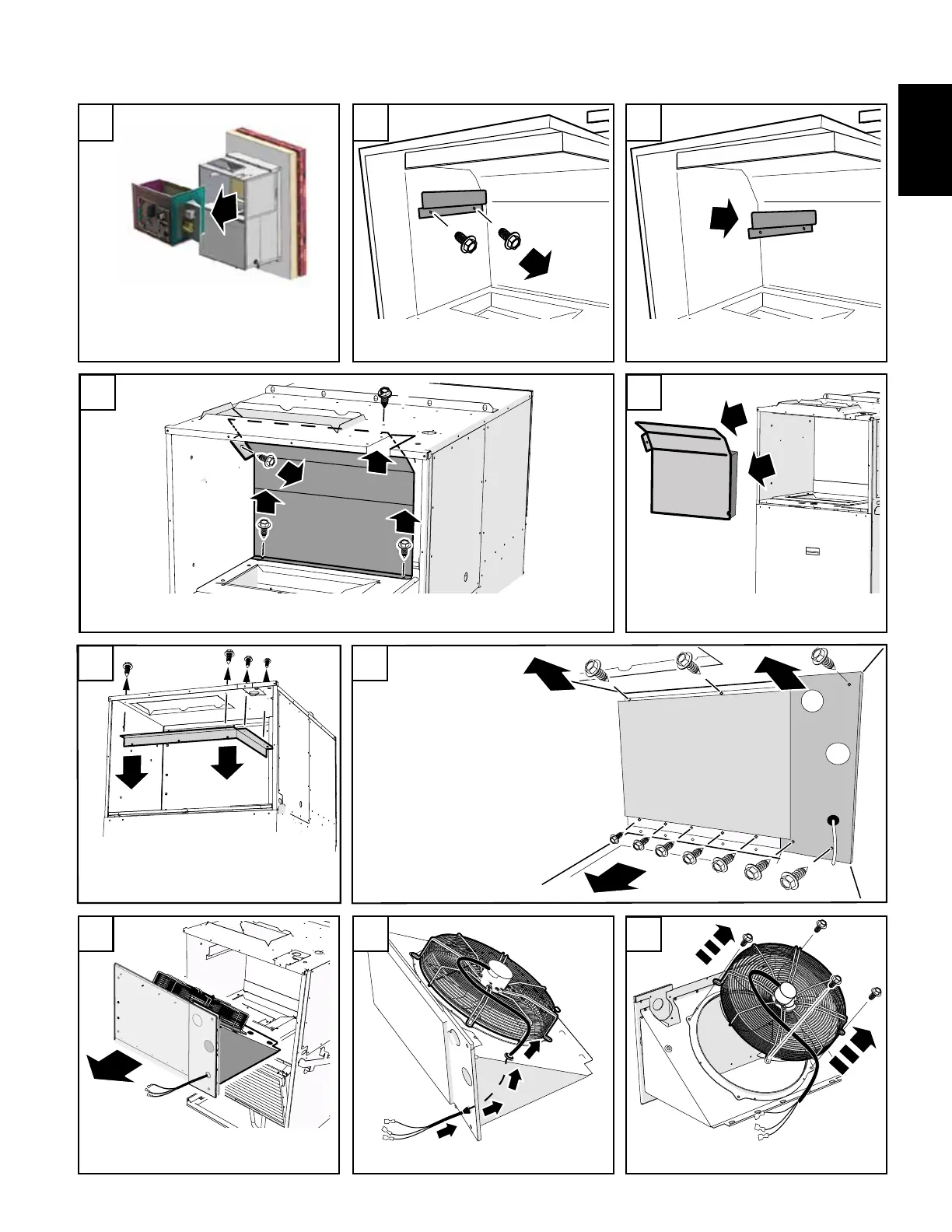

5.2.2 Condenser Fan Removal
Thread the wiring out from both holes
completely out of the fan module.
To remove condenser fan, heating
module must be removed first.
Refer to steps 1-16 shown in “Heating
Module Removal”.
Remove two screws holding
side manifold cover baffle.
Remove side manifold cover baffle.
Un-install four screws that holding
heating module upper bracket .
Remove the bracket.
Pull out condenser fan assembly. Remove condenser fan part.
Remove condenser fan shroud
mounting screws
(3 on the top and 7 at the bottom).
Remove rear manifold cover baffle.
Remove 4 rear manifold screws (one from the top).
21
24
25
22
23
26
27
302928
