3-4 EHP-TS
softw
are

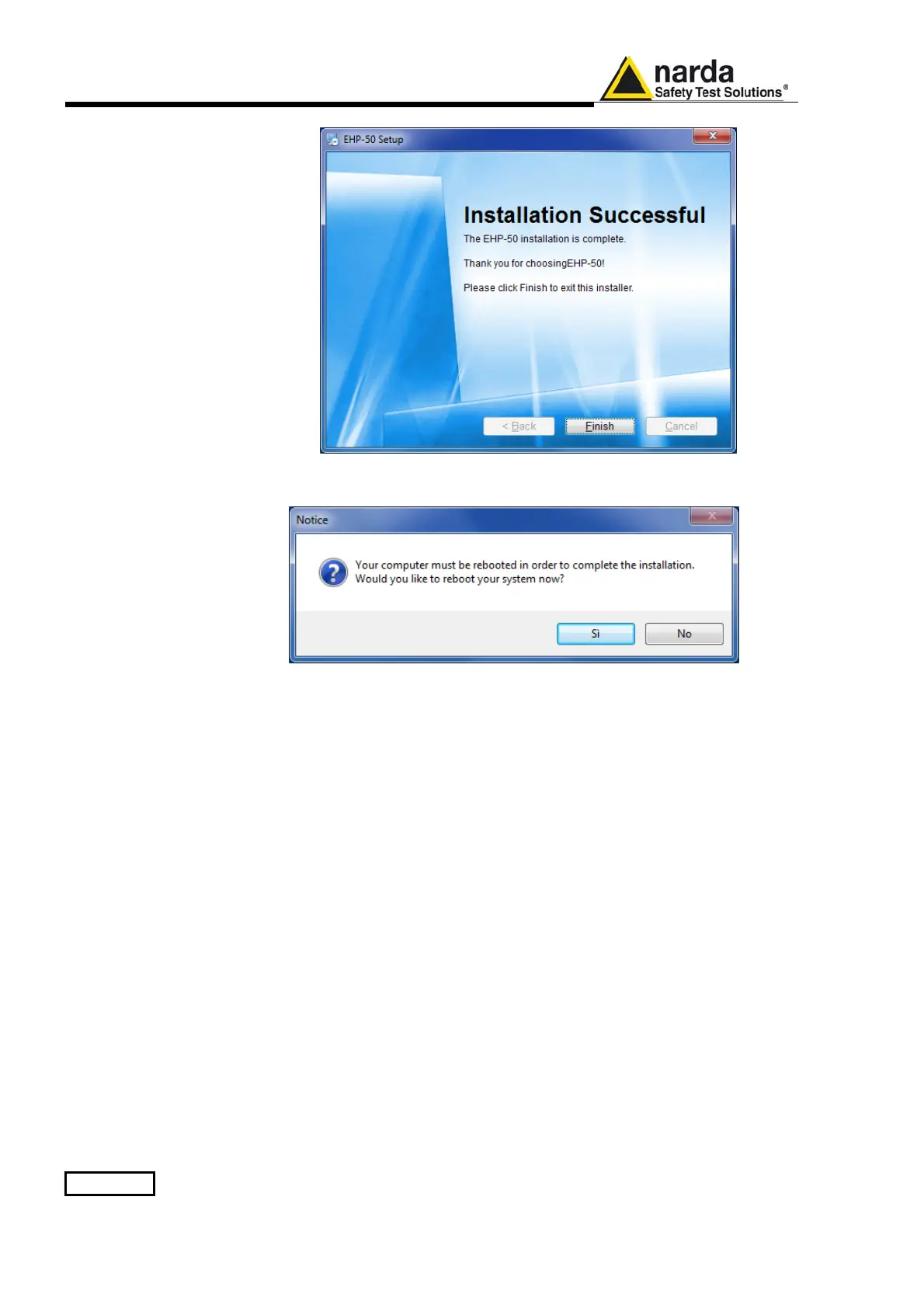

When asked for, reboot your system to complete installation
EHP50-TS software is now installed in
your PC, you can remove it, if
needed, simply running the “Uninstall
EHP50-TS” application (see cap.8).
27
29
Table of Contents
Table of Contents
6
Block Diagram of the EHP-50G
10
Technical Specifications of the EHP-50G
12
EHP-50G Axes
17
Overload Level EHP-50G (B Field, RMS)
19
Overload Level EHP-50G (E Field, RMS)
19
EHP-50G Panel
20
8053B
23
Autonomy of the Battery
23
EHP-TS Installation
25
Defining Frequency Band through the PC Mouse
33
Zoom Window
34
Data Section
37
Waterfall - Graph 2D
41
Waterfall Main Window
42
Waterfall - Graph 3D
43
Power Density Spectrum
57
New Wave Impedance Function
58
Shorting Loop
59
EHP-50G Upgrading Utility Main Window
65
EHP-50G Options Activation Utility Main Window
68
Uninstalling EHP-TS
71
Uninstalling USB-OC
73
USB-OC Adapter
77
Technical Specifications of the USB-OC
77
Technical Specifications of the 8053-OC
78
Technical Specifications of the 8053-OC-PS
79
EHP-200A Electric and Magnetic Field Probe
81
TR-02A Tripod
86
Technical Specifications of the TR-02A
86
Fiber Glass Telescopic Support
88
Technical Specifications of the TT-01
88
