9-10 Accessories
9.5.6 Front
panel

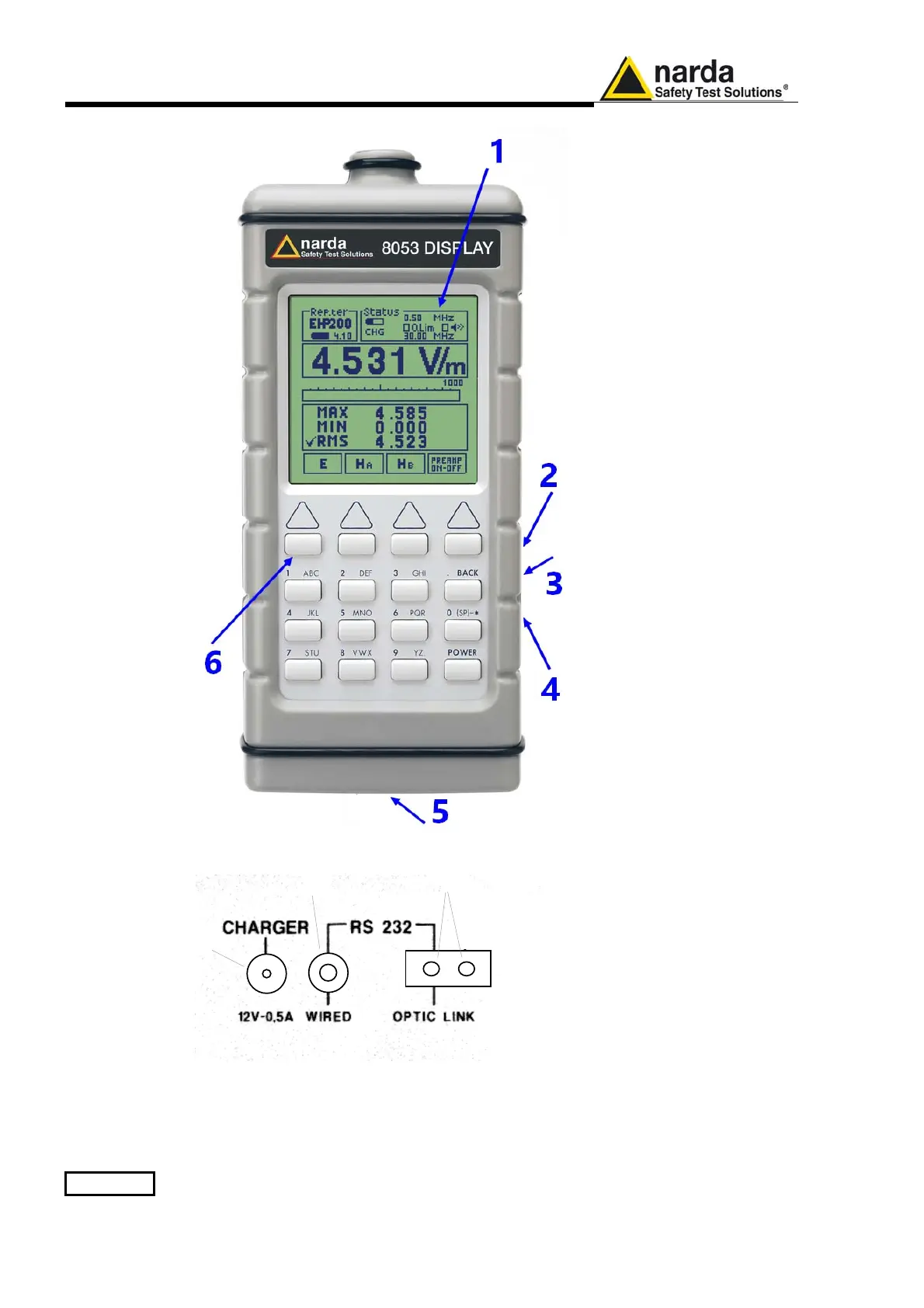

Fig. 9-6 Front panel
Key:
1. Display
2. Fiber optic Input/Output for
additional probes, USB or
RS232 interface via fiber
optic link
3. RS232 interface
4. Battery charger input, from
10 to 15V DC, 500 mA
5. Securing screws to tripod
6. Alphanumeric keyboard
9.5.7 Side
panel
Fig. 9-7 Side panel
Key:
1. Connection EHP-50G or
EHP200A fiber optic link
2. Wired RS232 interface for
direct connection to the PC
3. Battery charger connector
(12V, 0.5A)
