Chapter 3 I/O Information
NI 8352/8353 User Manual 3-2 ni.com

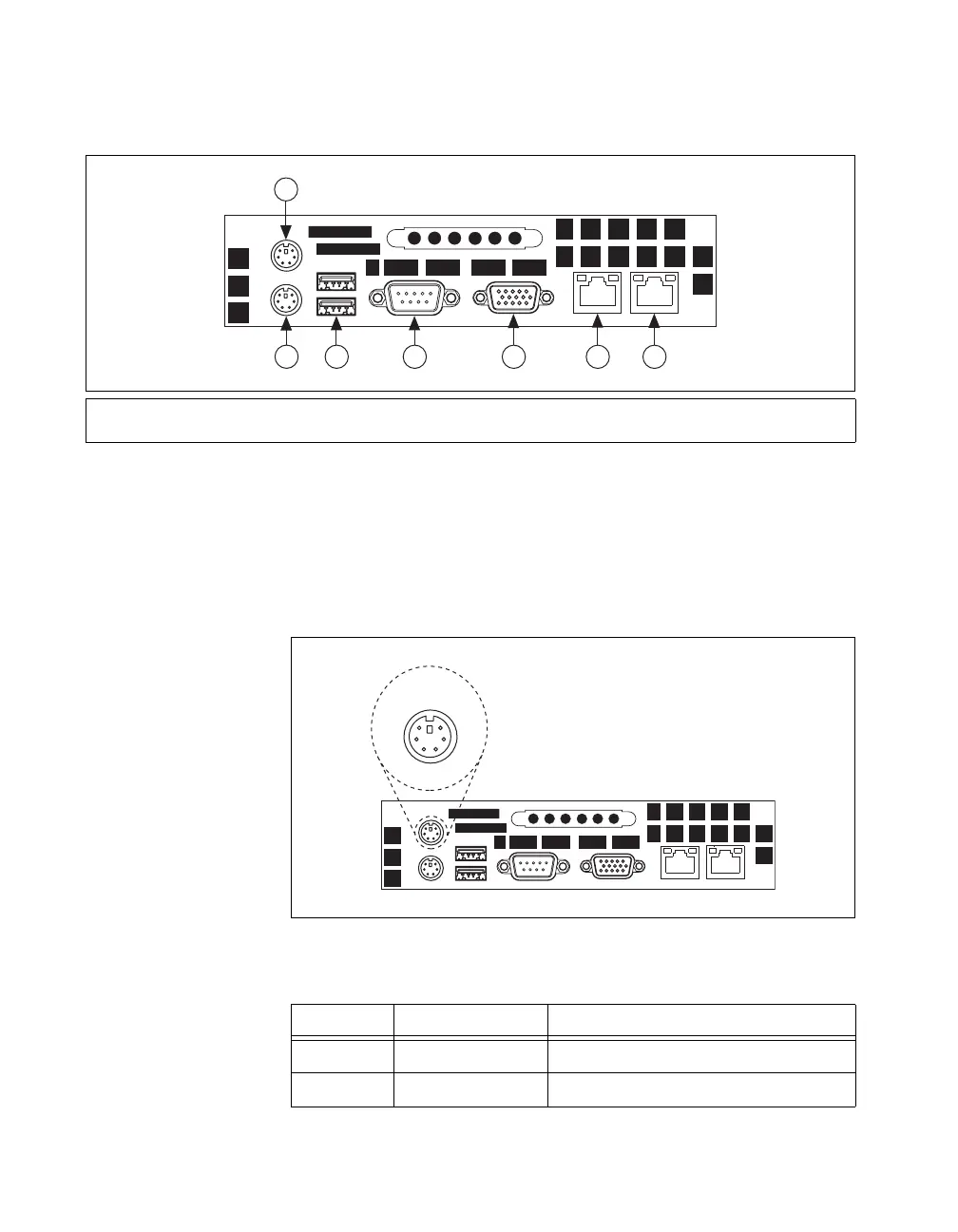

Figure 3-1 shows the rear panel layout of the NI 8352/8353.
Figure 3-1. NI 8352/8353 Rear Panel Layout
PS/2
Figure 3-2 shows the location and pinouts for the PS/2 keyboard and mouse
connectors on the NI 8352/8353. Table 3-2 lists and describes the PS/2
connector signals.
Figure 3-2. PS/2 Connector Location and Pinout
1 PS/2 Mouse Connector
2 PS/2 Keyboard Connector
3 USB Ports
4 Serial Port
5VGA Port
6LAN 1
7LAN 2
Table 3-2. PS/2 Connector Signals
Pin Signal Name Signal Description
1 DATA Data Keyboard
2 NC Data Mouse
1
7
65
4
3
2
P
S/2
1
2
4
3
5
6
