Chapter 3 I/O Information
© National Instruments Corporation 3-7 NI 8352/8353 User Manual
Ethernet
Figure 3-6 shows the location and pinouts for the Ethernet connectors
on the NI 8352/8353. Table 3-6 lists and describes the Ethernet connector
signals.
AMP manufactures a mating connector, part number 554739-1.

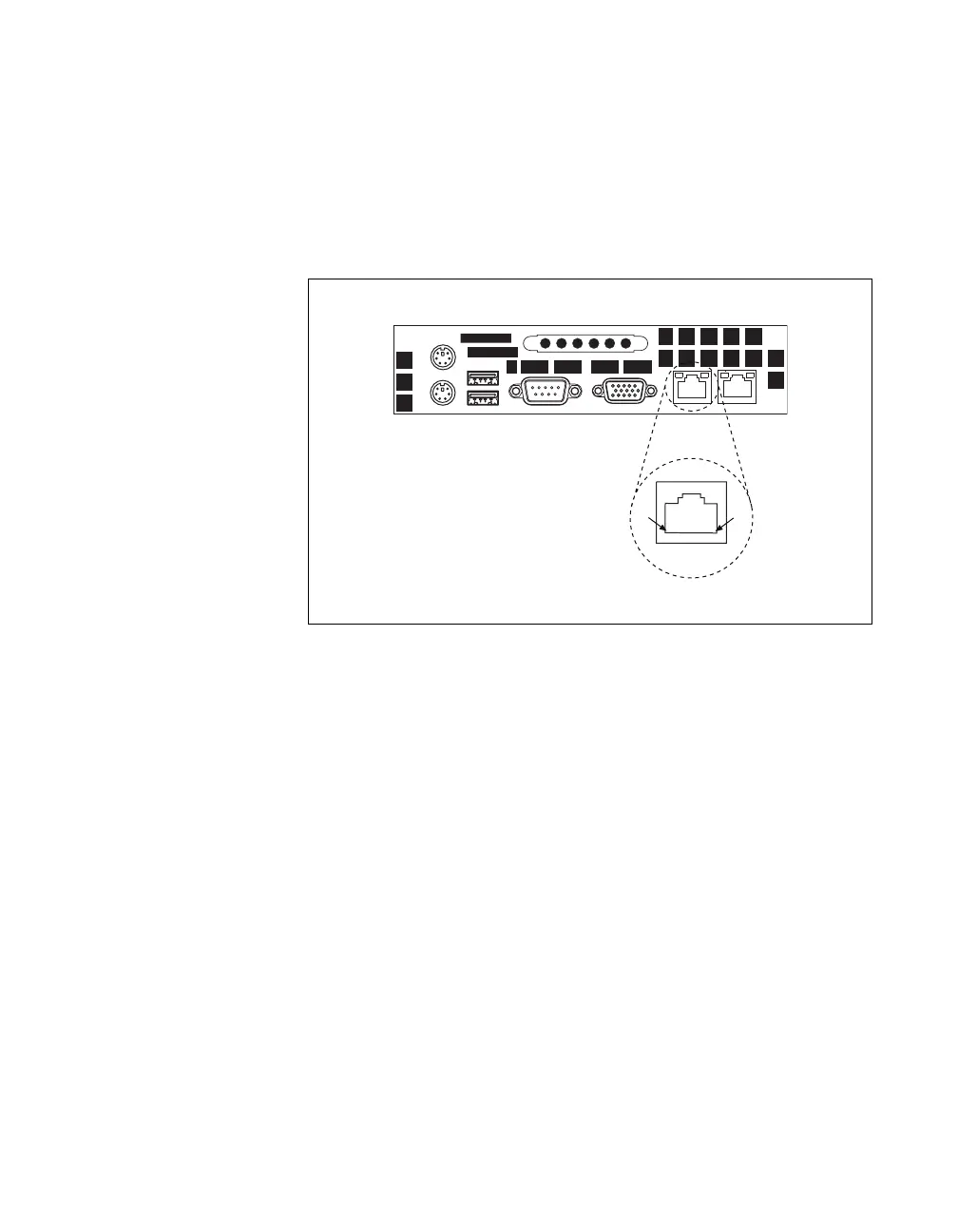

Figure 3-6. Ethernet Connector Location and Pinout
Ethernet
1
8
