Appendix B Hardware Configuration
NI 8352/8353 User Manual B-2 ni.com

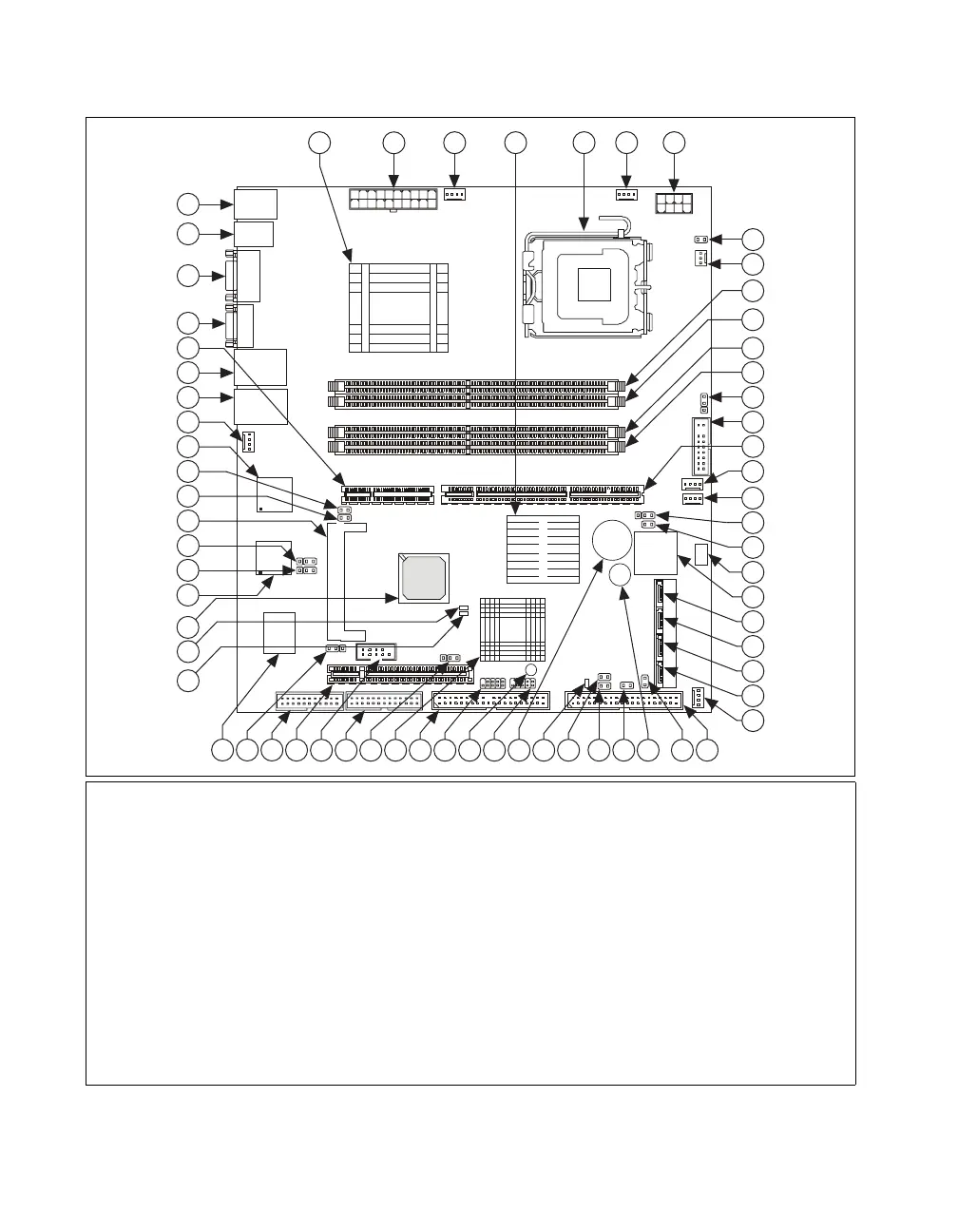

Figure B-1. NI 8352/8353 Mainboard Layout
1 Intel 3000 North Bridge
2 24-Pin ATX PWR/
JPW1
3 Fan6/CPU Fan
4 PXH-V
5 Pentium Core2 Duo
CPU LGA 775
6Fan1
78-Pin PWR/JPW2
8JPR1
9PW3
10 DIMM 1A/DIMM 1
11 DIMM 1B/DIMM 2
12 DIMM 2A/DIMM 3
13 DIMM 2B/DIMM 4
14 JLED
15 FP CTRL/JF1
16 PCI-X 133 MHz/Slot6
17 Fan2
18 Fan3
19 JWD
20 JPF
21 WOL
22 BIOS
23 SATA3
24 SATA2
25 SATA1
26 SATA0/JS1
27 Fan4
28 IDE1/J3
29 JP3
30 Buzzer
31 JWF1
32 JL1
33 JWOR
34 LE1
35 Battery
36 USB5/6 J46
37 JBT1
38 USB3/4 J45
39 J4 IDE (Compact Flash
Card Only)
40 ICH7R South Bridge
41 J9
42 J27/Floppy
43 COM2
44 PCI 32-Bit 33 MHz/Slot1
45 J30/Printer
46 JPG1
47 S I/O
48 LE 4
49 LE 3
50 VGA CTRL
51 LAN CTRL
52 JPL2
53 JPL1
54 IPMI
55 JI
2
C2
56 JI
2
C1
57 LAN CTRL
58 Fan5
59 GLAN2
60 GLAN1
61 SXB-E1 PCI-Ex8/J42
62 VGA/J6
63 COM1/J31
64 USB 1/2/J15
65 PS/2 KB/Mouse/J28
2
3
5 6 7
1
8
9
13
14
12
11
10
15
17
19
18
16
20
21
22
23
24
25
26
27
31 28
2930
32
3334353637383940414243
44
454647
50
48
49
52
53
54
55
56
57
58
59
60
61
62
63
64
65
4
51
