Chapter 1 Getting Started
X Series User Manual 1-6 ni.com
DIN Rail Mounting
Complete the following steps to mount your USB X Series device to a
DIN rail using the USB X Series mounting kit with DIN rail clip (part
number 781515-01 not included in your X Series USB device kit).
1. Fasten the DIN rail clip to the back of the backpanel wall mount
using a #1 Phillips screwdriver and four machine screws (part
number 740981-01), included in the kit as shown in Figure 1-4.
Tighten the screws to a torque of 0.4 N · m (3.6 lb · in.).

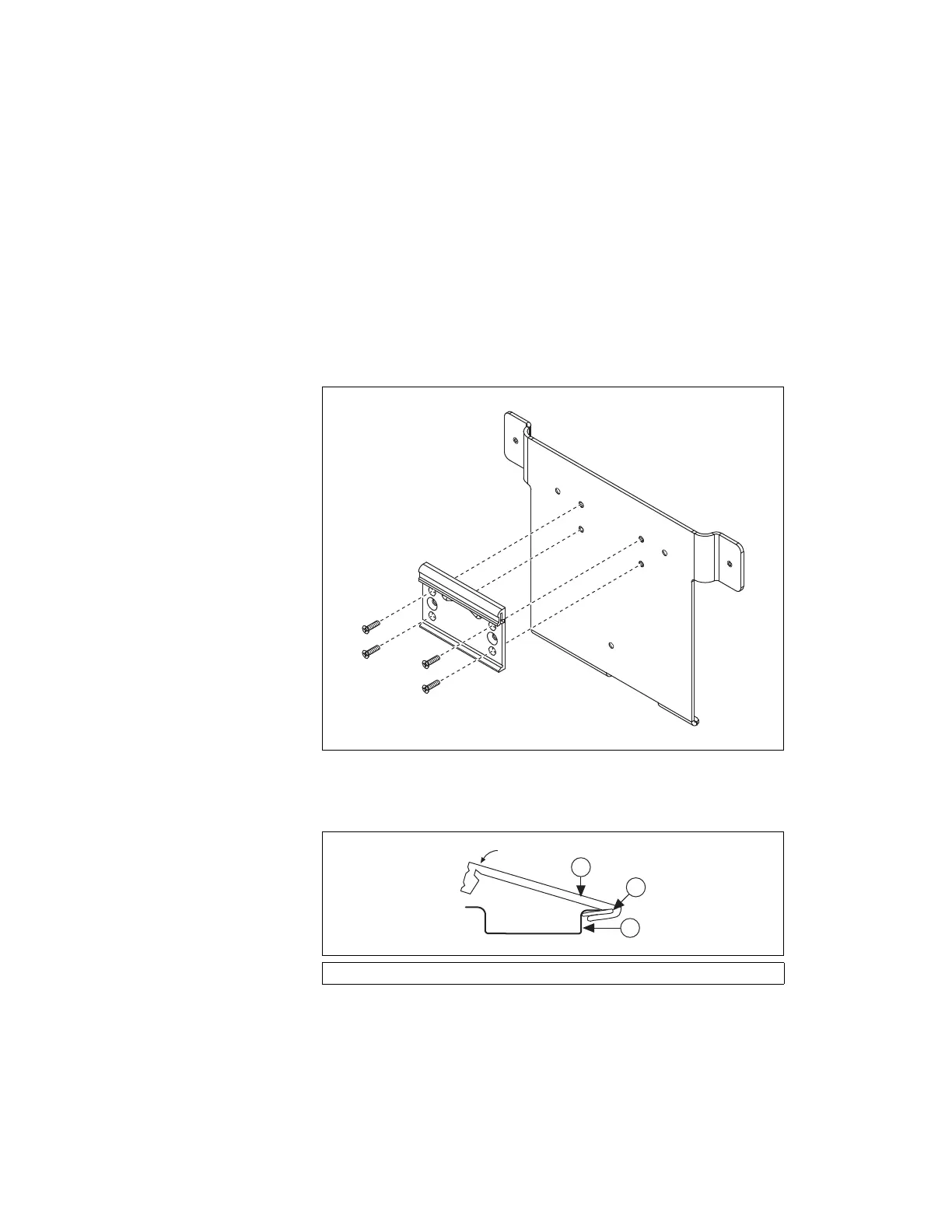

Figure 1-4. Attaching the DIN Rail Clip to the Backpanel Wall Mount
2. Clip the bracket onto the DIN rail as shown in Figure 1-5.
Figure 1-5. DIN Rail Clip Parts Locator Diagram
1 DIN Rail Clip 2 DIN Rail Spring 3 DIN Rail
