Chapter 1 Getting Started
© National Instruments 1-7 X Series User Manual
3. Place the USB X Series device on the backpanel wall mount with the
signal wires facing down and the device bottom sitting on the
backpanel wall mount lip.
4. While holding the USB X Series device in place, attach the front bracket
to the backpanel wall mount by tightening the two thumbscrews.
USB Device LEDs
(NI USB-634x/635x/636x Devices) Refer to the USB Device LED Patterns
section of Chapter 3, Connector and LED Information, for information
about the X Series USB device READY and ACTIVE LEDs.
USB Cable Strain Relief
(NI USB-634x/635x/636x Devices) You can provide strain relief for the USB
cable by using the jackscrew on the locking USB cable (included in the
X Series USB device kit) to securely attach the cable to the device, as
shown in Figure 1-6.

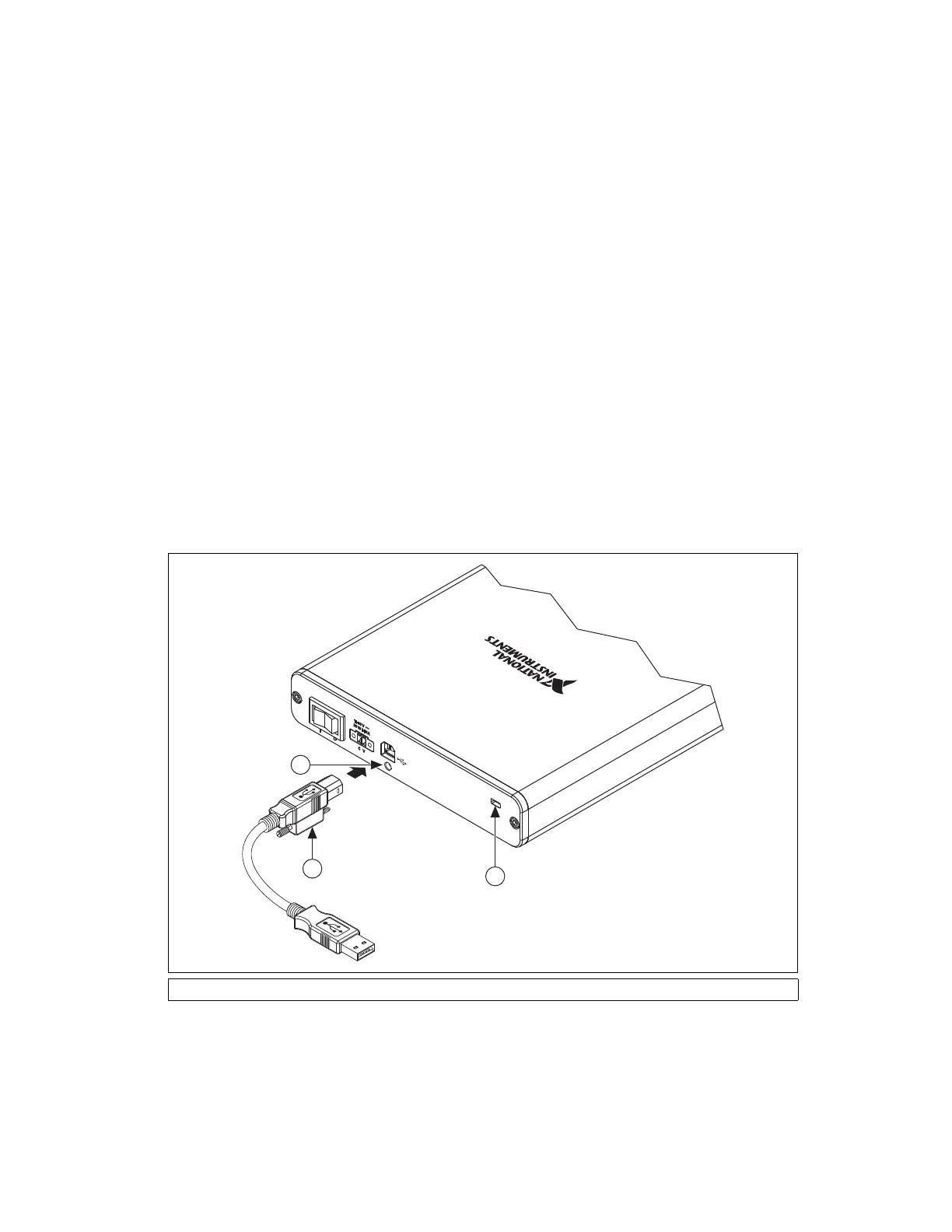

Figure 1-6. USB Cable Strain Relief on X Series USB Devices
1 Locking USB Cable Jackscrew 2 Jackscrew Hole 3 Security Cable Slot
1
3
2
