Chapter 2 Analog Input

E Series User Manual 2-44 ni.com

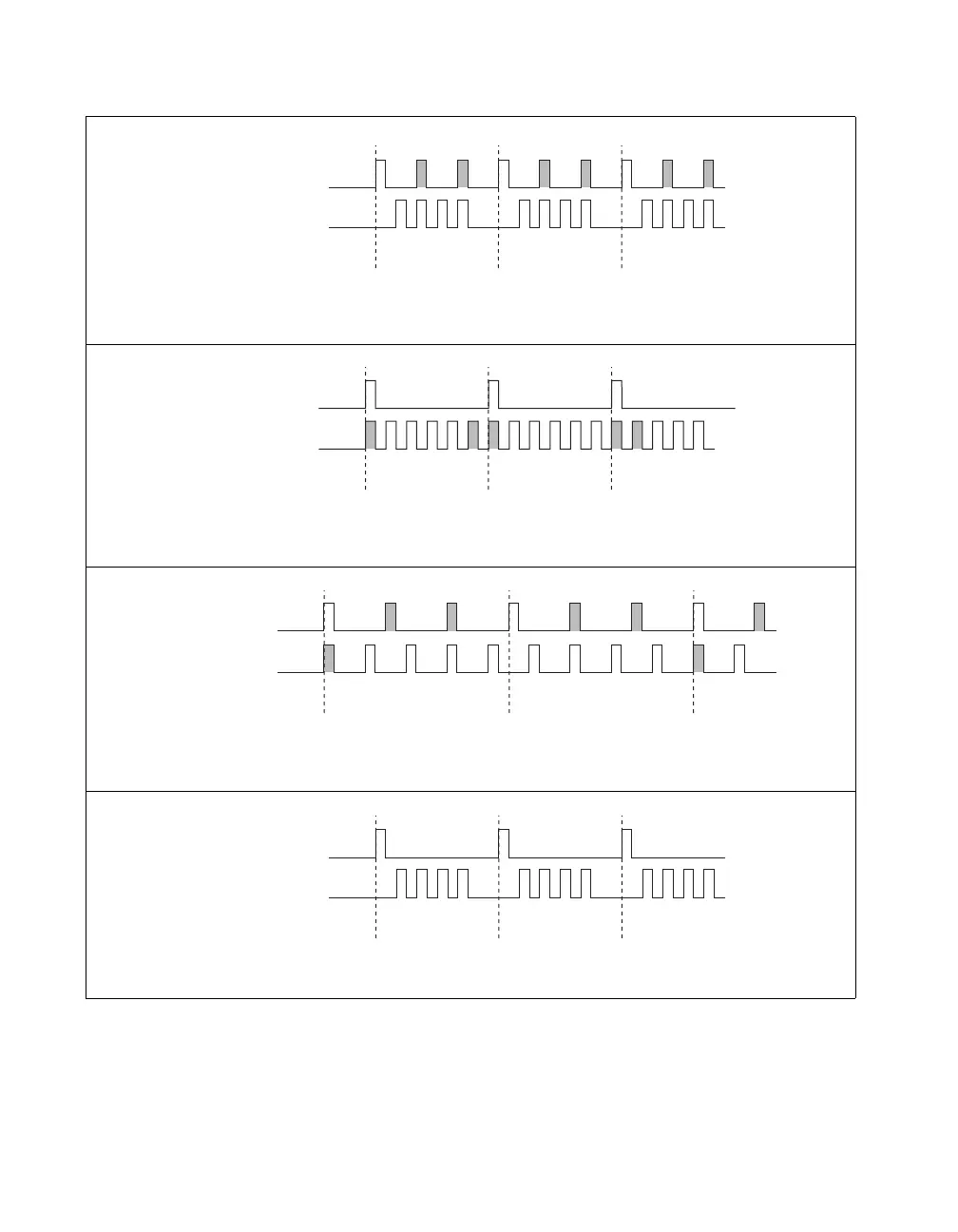

Figure 2-32. ai/SampleClock and ai/ConvertClock Signals

ai/ConvertClock

ai/SampleClock

12 3

Sample Clock too fast for Convert Clock.

Sample Clock pulses are gated off.

ai/ConvertClock

ai/SampleClock

12 3

Convert Clock too fast for Sample Clock.

Convert Clock pulses are gated off.

ai/ConvertClock

ai/SampleClock

123

Improperly matched Sample Clock and Convert Clock.

Leads to aperiodic sampling.

ai/ConvertClock

ai/SampleClock

12 3

Properly matched Sample Clock and Convert Clock.
