Chapter 3 I/O Information
© National Instruments 3-3 NI PXI-8109 User Manual
DVI-I
Figure 3-2 shows the location and pinouts for the DVI-I connector on the
NI PXI-8109. Table 3-2 lists and describes the DVI-I connector signals.

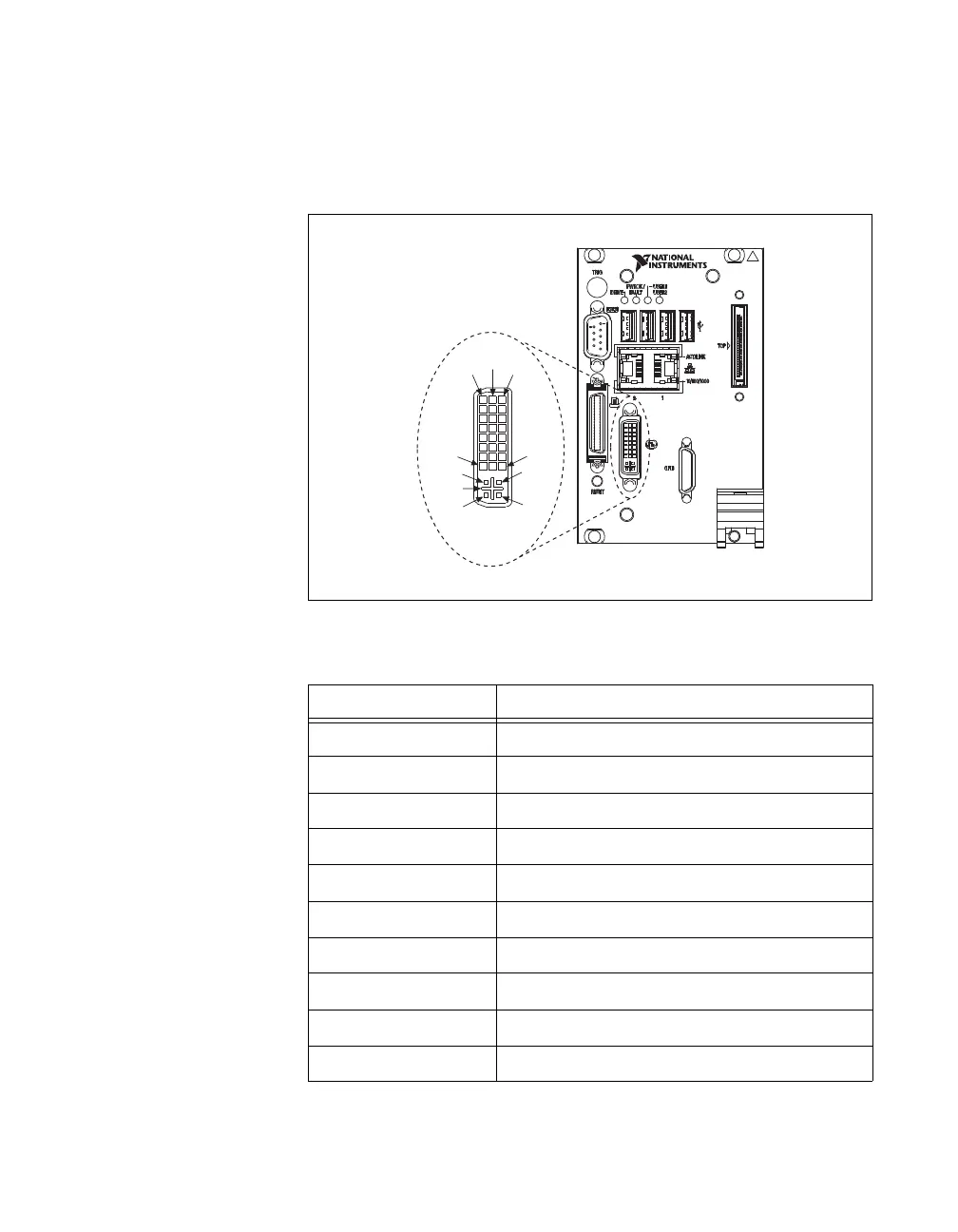

Figure 3-2. DVI-I Connector Location and Pinout
Table 3-2. DVI-I Connector Signals
Pin Signal Name
1 TMDS Data2–
2 TMDS Data2+
3 TMDS Data2/4 Shield
4 Reserved
5 Reserved
6 DDC Clock [SCL]
7 DDC Data [SDA]
8 Analog vertical sync
9 TMDS Data1–
10 TMDS Data1+
NI PXI-8109
Embedded Controller
1
9
17
C4
8
24
C3
C2
C1
C5

National Instruments PXI Series Specifications

General

Form Factor	PXI
Slot Count	4, 8, 18 slots
Cooling	Forced air
Compatibility	PXI modules
Operating Temperature	0 °C to 55 °C
Relative Humidity	10% to 90%, non-condensing
Dimensions	Varies depending on the specific chassis model
Weight	Varies depending on the specific chassis model
