PXIe-4466/4467 Calibration Procedure
10 ni.com/services
Initial Test Connection

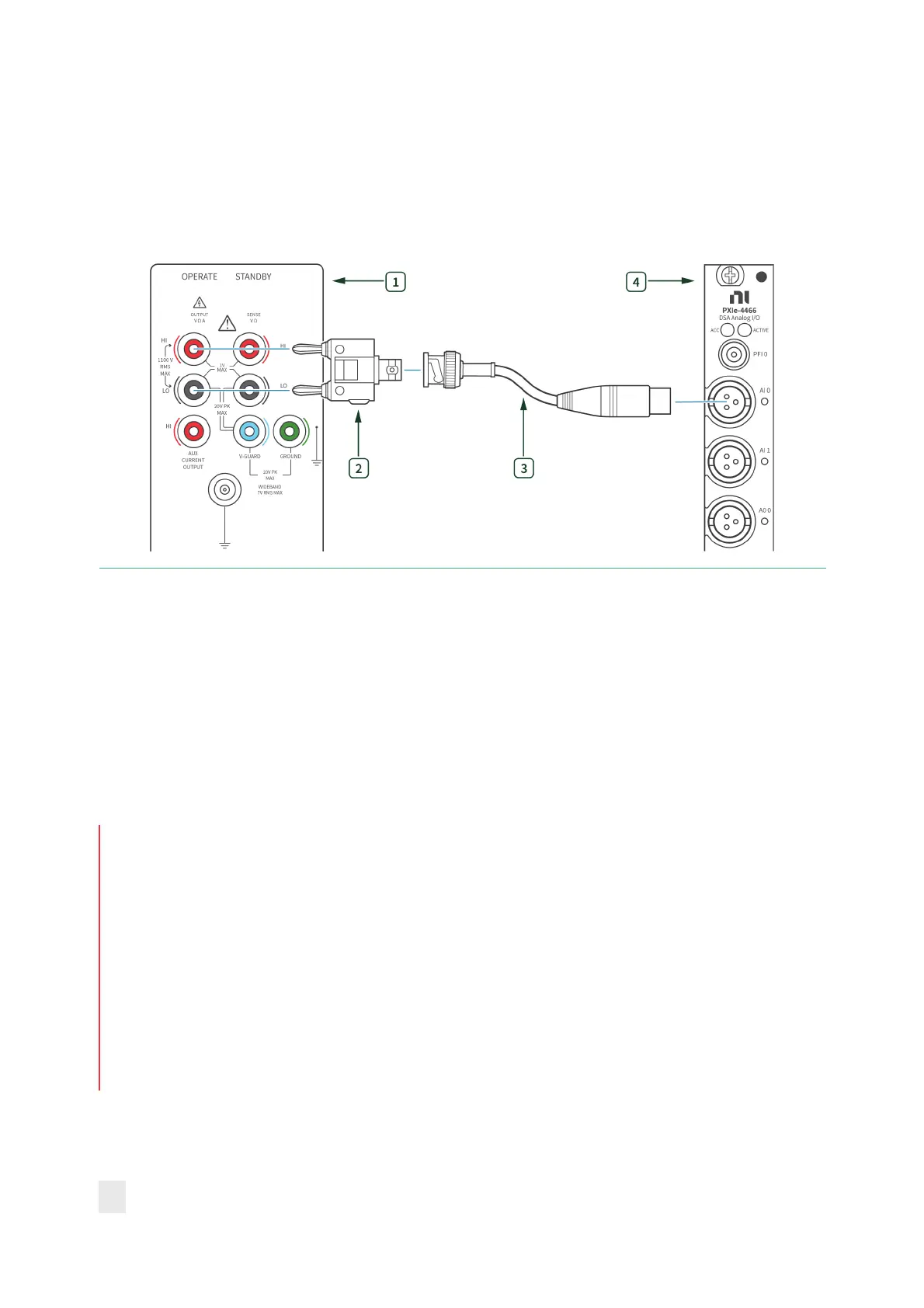

Figure 1. Initial Connection for AI Offset
1. Calibrator 3. BNC – mXLR Cable
2. Banana – BNC Adapter 4. PXIe-4466/4467 with mXLR
Verification Procedure
Complete the following procedure to verify the AI offset accuracy.
Repeat 2 times, once for each channel.
1. Connect the AI channel under test to the Calibrator as shown in
Figure 1.
2. Configure the calibrator to output 0V DC, with GND engaged.
Repeat 6 times, once for each gain setting.
