PXIe-4466/4467 Calibration Procedure
32 ni.com/services
Initial Test Connection

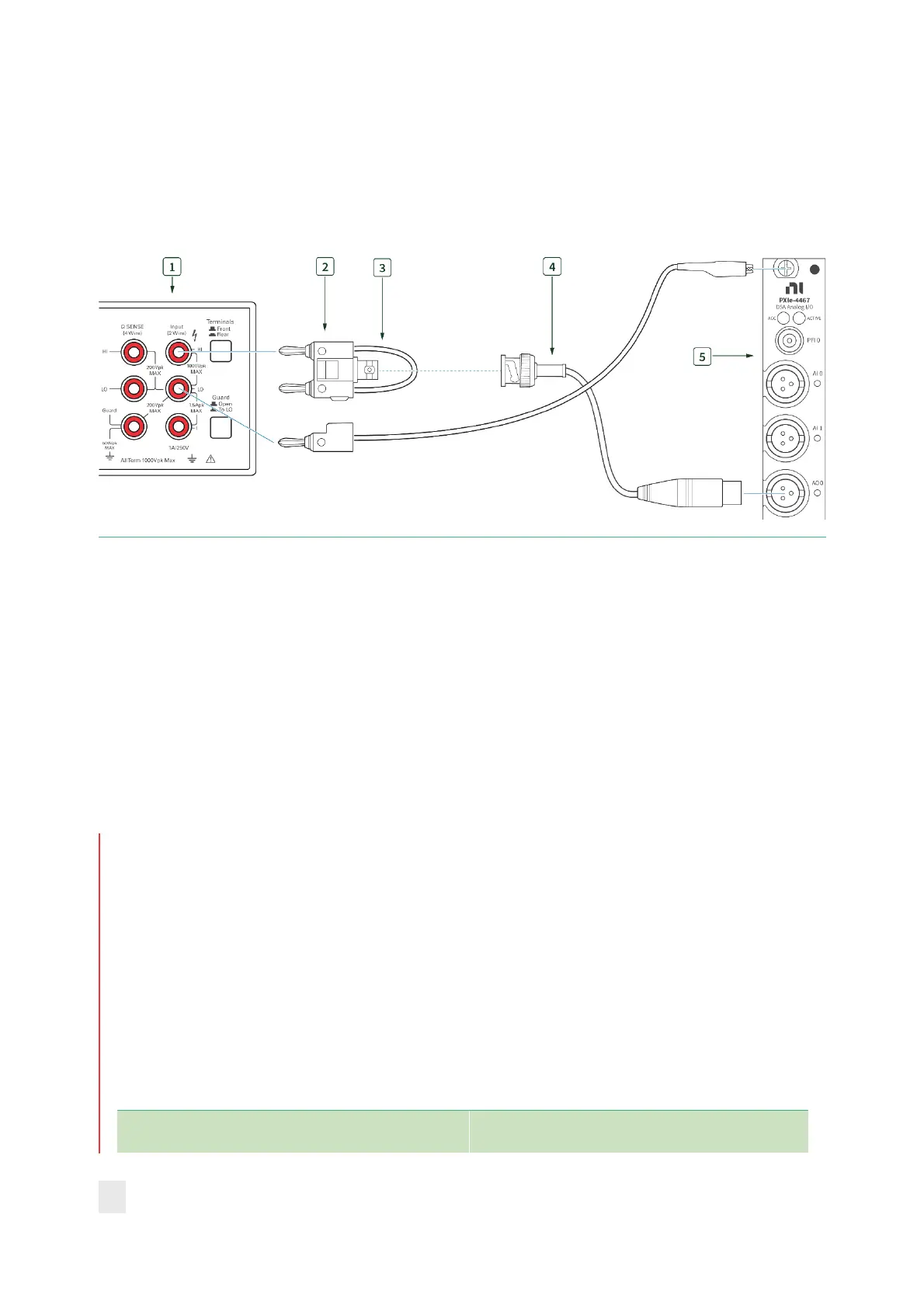

Figure 4. Initial Connection for AO Common-Mode Gain and Offset
1. DMM 4. BNC – mXLR Cable
2. Banana – BNC Adapter 5. PXIe-4466/4467 with mXLR
3 Shorting Cable (Banana – Banana)
Verification Procedure
Complete the following procedure to verify common-mode gain and offset.
Repeat 2 times, once for each channel.
1. Connect the AO channel under test to the DMM as shown in Figure 4.
Repeat 6 times, once for each test point.
2. Configure the DMM using the information in Table 12.
Table 24: DMM Configuration
Configuration Value
