National Instruments sbRIO-9607 Getting Started

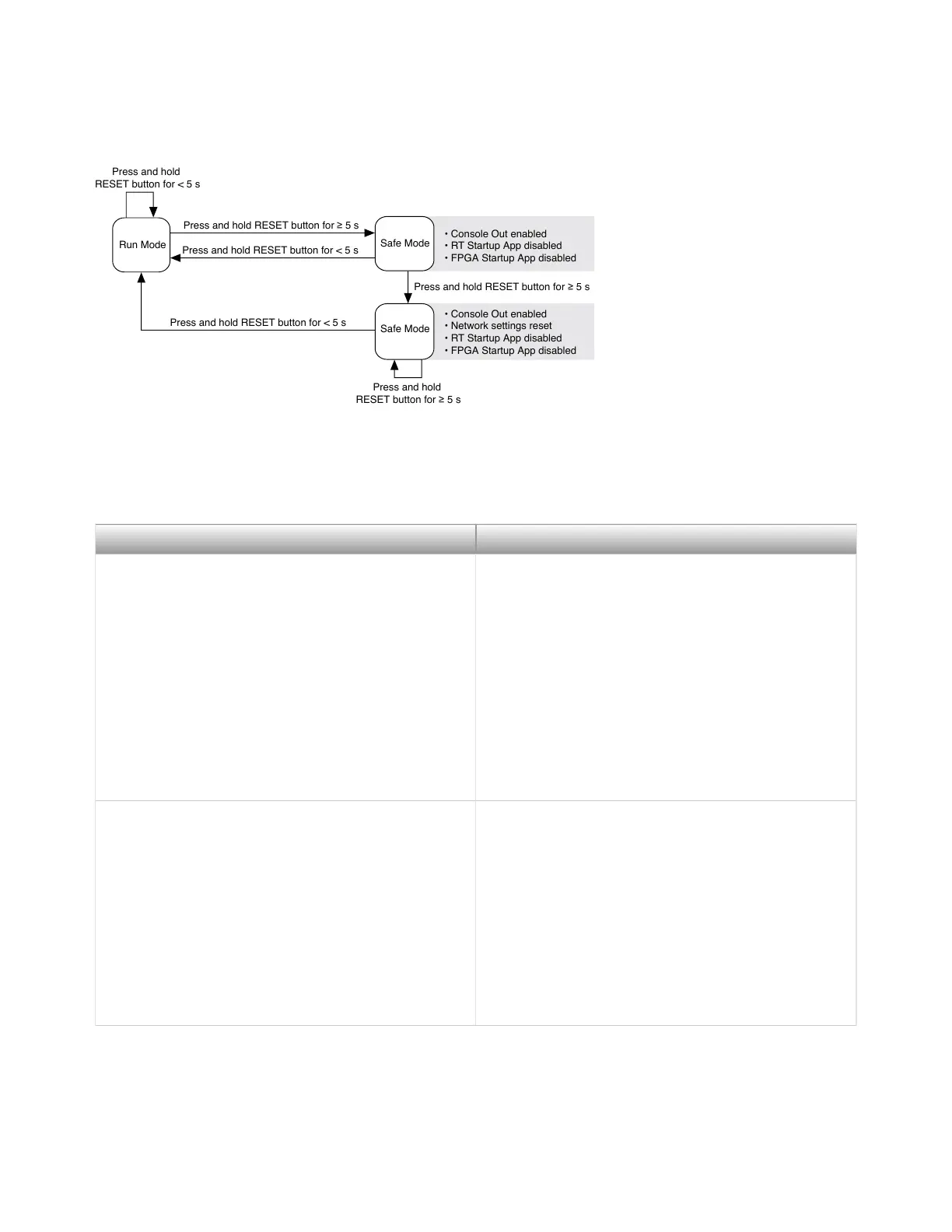

Figure 3. Reset Button Behavior
Press and hold RESET button for ≥ 5 s
Press and hold RESET button for < 5 s
Run Mode
Safe Mode
Press and hold RESET button for < 5 s
Press and hold RESET button for ≥ 5 s
Press and hold
RESET button for ≥ 5 s
Press and hold
RESET button for < 5 s
• Console Out enabled
• Network settings reset
• RT Startup App disabled
• FPGA Startup App disabled
• Console Out enabled
• RT Startup App disabled
• FPGA Startup App disabled
Safe Mode
STATUS LED Indicators
The following table lists the STATUS LED indicators.
Table 1. STATUS LED Indicators
LED Pattern Indication
Blinks twice and pauses The sbRIO-9607 is in safe mode. Soware is not
installed, which is the factory default state, or
soware has been improperly installed on the
sbRIO-9607.
An error can occur when an attempt to upgrade
the soware is interrupted. Reinstall soware
on the sbRIO-9607. Refer to the Measurement
& Automation Explorer (MAX) Help for
information about installing soware on the
sbRIO-9607.
Blinks three times and pauses The sbRIO-9607 is in user-directed safe mode, or
the sbRIO-9607 is in install mode to indicate
that soware is currently being installed.
This pattern may also indicate that the user has
forced the sbRIO-9607 to boot into safe mode by
pressing the reset button for longer than five
seconds or by enabling safe mode in MAX. Refer
to the Measurement & Automation Explorer
(MAX) Help for information about safe mode.
