Chapter 1 Getting Started
© National Instruments Corporation 1-7 NI USB-621x User Manual
Panel Mounting
(USB-621x Screw Terminal/Mass Termination Devices) To mount the USB-621x
to a board or panel, complete the following steps while referring to
Figure 1-5.

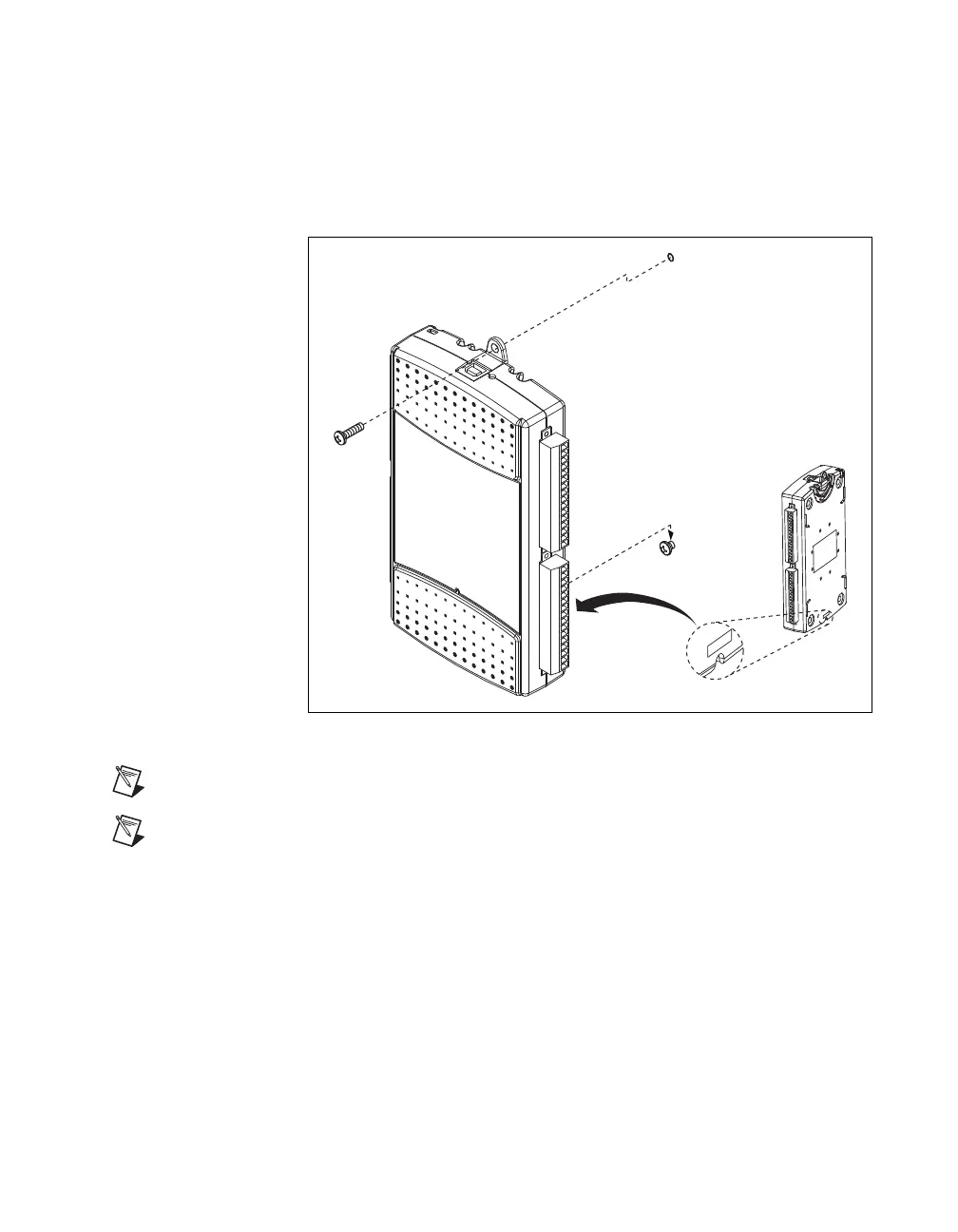

Figure 1-5. Mounting the USB-621x on a Panel
Note
Do not apply the rubber feet to the USB-621x when panel mounting the device.
Note Apply strain relief, as described in the USB Cable Strain Relief section, before panel
mounting the USB-621x.
1. Download and print the panel mounting template PDF attached in the
KnowledgeBase document, USB-621x Panel Mounting Template.
Go to
ni.com/info and enter the info code ex3x98 to locate the
KnowledgeBase.
2. Using the template, mark the bottom point and top point on the panel.
(USB-621x Screw Terminal Devices) The points will be 171.45 mm
(6.75 in.) from each other.
(USB-621x Mass Termination Devices) The points will be 182.56 mm
(7.188 in.) from each other.
