Log Book
The Log Book keeps a record of all notes that are added to the test, as well as the particular waveform, if
any, that each note is associated with.
Note that the Log Book feature is also available in Recording mode.

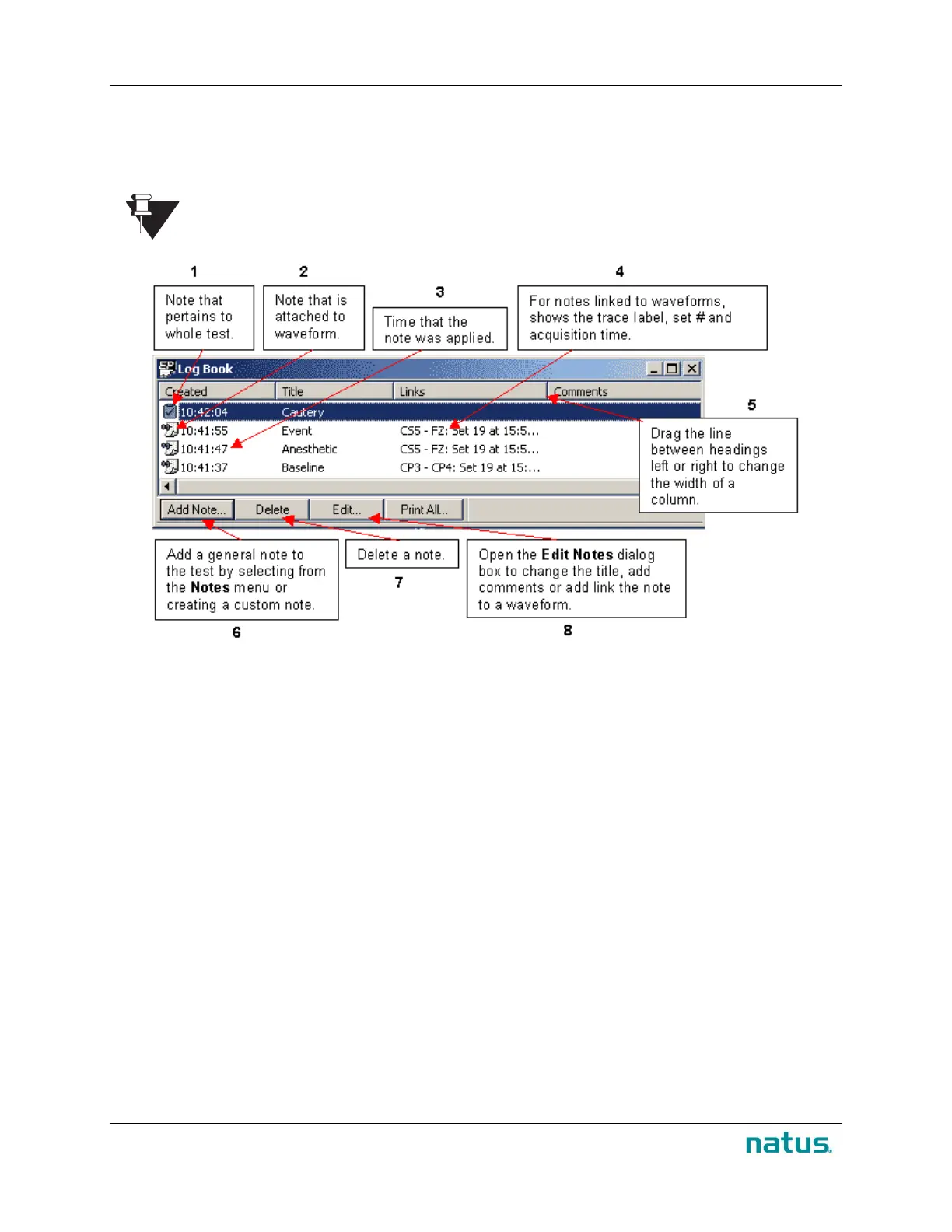

1. Note that pertains to whole test. 2. Note that is attached to the waveform.
3. Time that the note was applied. 4. For notes linked to waveforms, shows the trace
label, set number and acquisition time.
5. Drag the line between headings left or
right to change the width of a column.
6. Add a general note to the test by selecting from the
Notes menu or creating a custom note.
7. Delete a note 8. Open the Edit Notes dialog box to change the title,
add comments or link the note to a waveform.
