XLTEK Protektor32 Instructions for Use
51

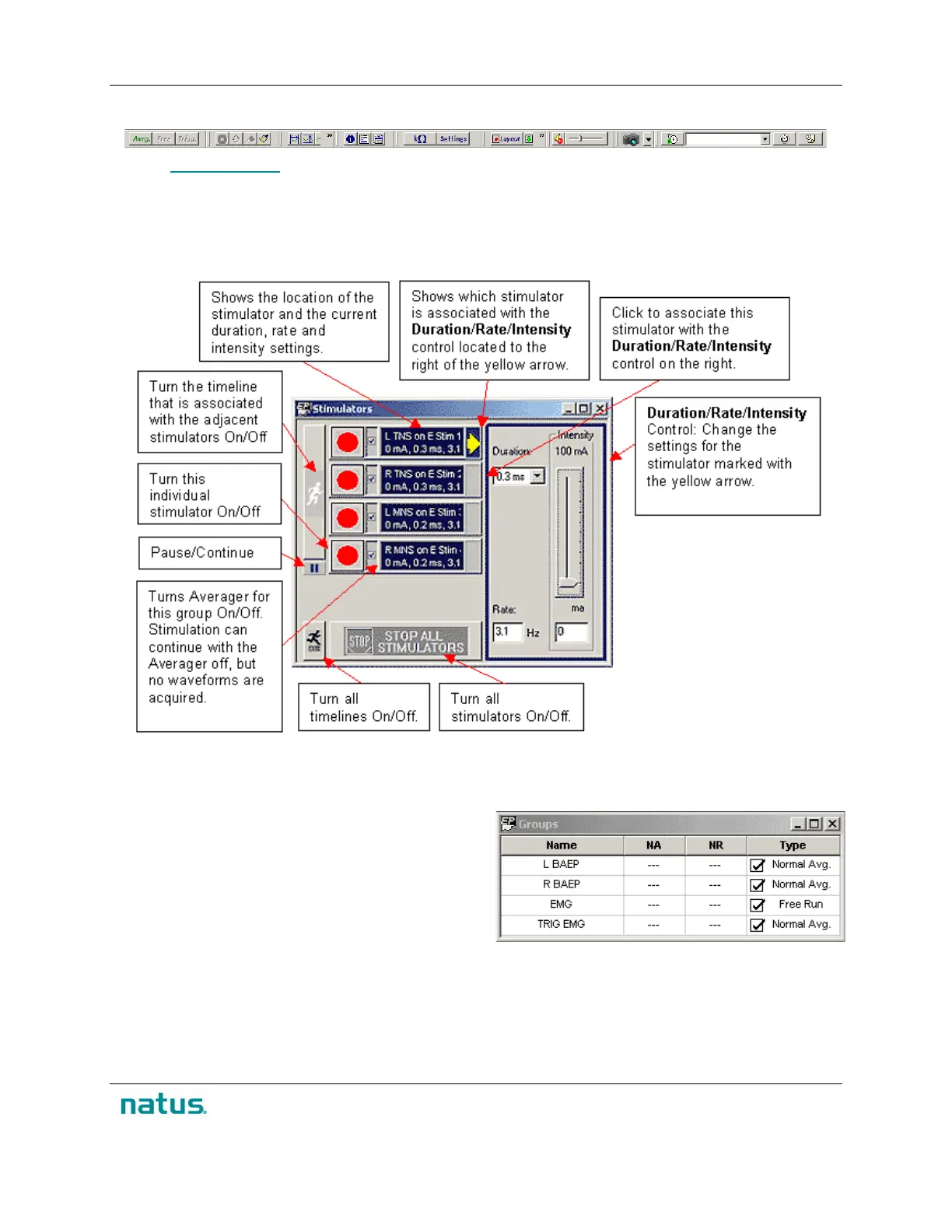

Acquisition Toolbar
See the Toolbar Buttons
chapter for the definition of the buttons.
Stimulators Window
The Stimulators Window allows you to set the duration, rate, and intensity of individual stimulators while
the study is on-going.
Groups Window
The Groups window allows you to start and stop the recording of data /acquisition of data. For each
group in your test, the Groups window reports the
number of sweeps accepted (NA column) and the
number of sweeps rejected (NR column) for the
current set being acquired / recorded. To start or
stop acquisition for a specific group, click the check
box in the Type column. For triggered or averaged
groups, you must also start the appropriate stimulator
in the Stimulators window in order to acquire waveforms.
