NV10LT/NV7.5LT INSTALLATION MANUAL UNPACKING AND POSITIONING
PAGE 2.2.4 VERSION 5.0 2021-03-01

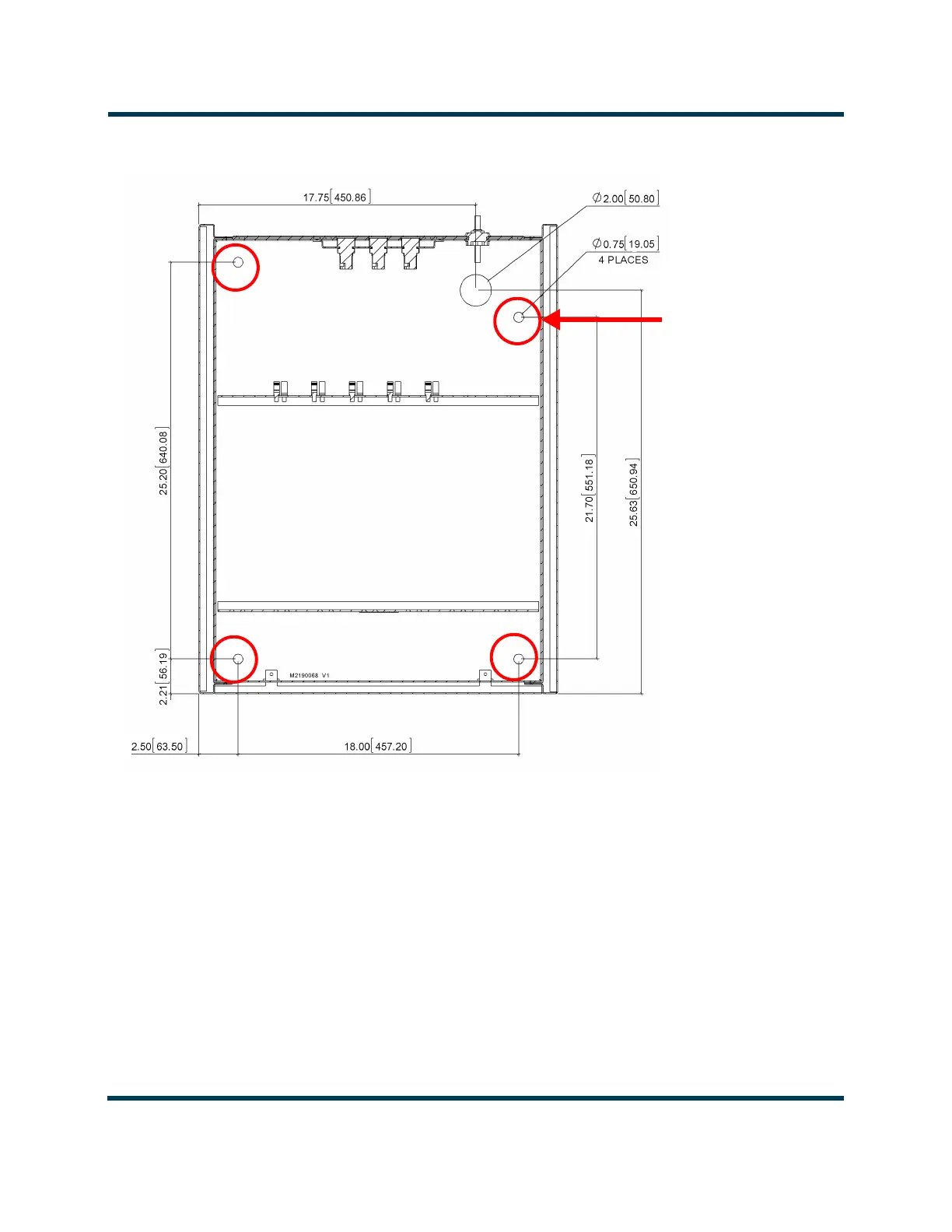

Figure 2.2.2: Seismic Anchoring Hole Locations
SEISMIC ANCHOR-
ING
HOLES
4 places (3/4 in holes)
FLOOR VIEW OF CABINET FROM ABOVE
FRONT
