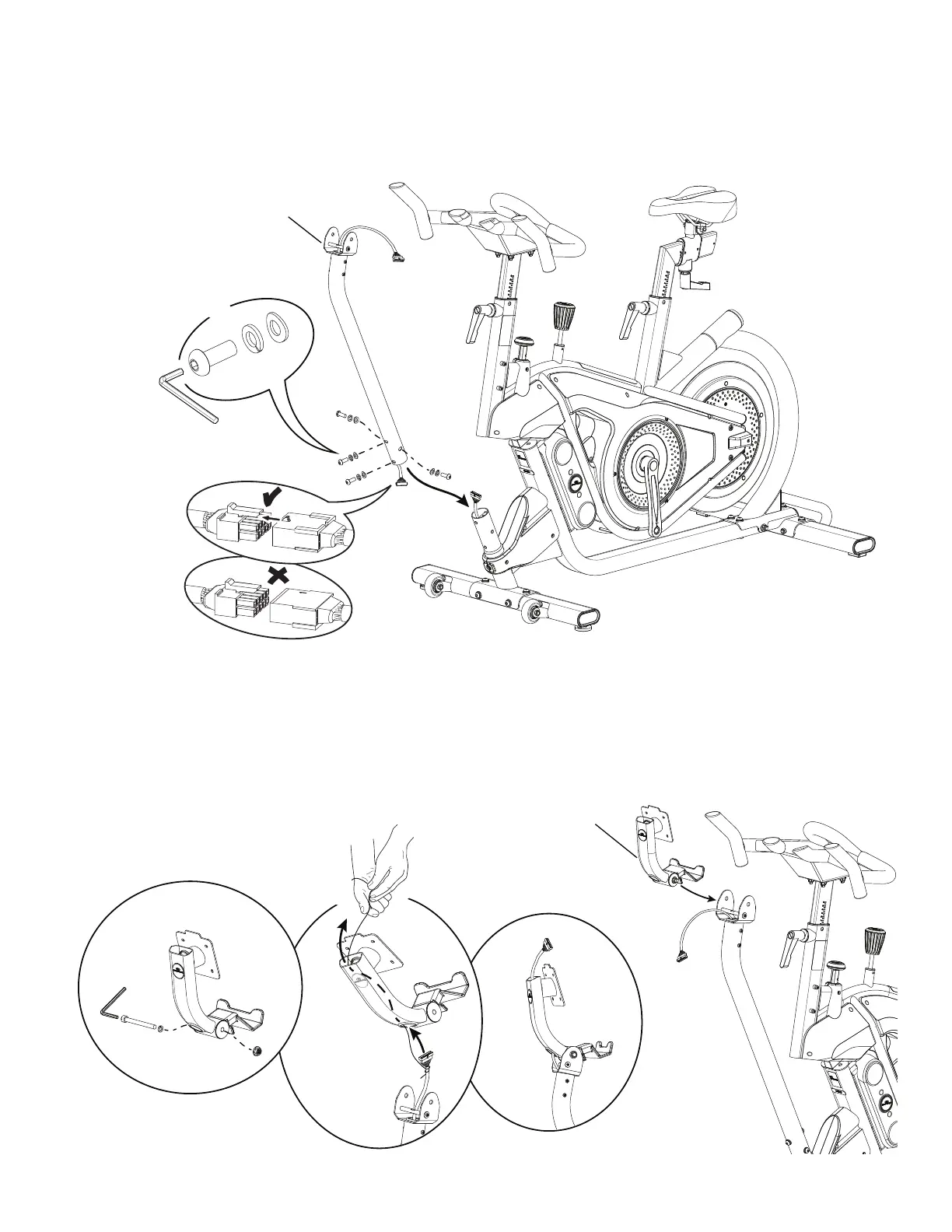

5. Attach the Console Mast to the Frame Assembly
NOTICE: Connect the Frame cable to the Console Mast cable. Remove the wire from the Console Mast cable and pull the connector out of the
Console Mast tube. Gently pull the cable from the top of the Console Mast to remove all slack. Do not crimp the cables.
The hardware is pre-installed (*). Hand tighten the screws at the base of the Console Mast.
6. Attach the Adjustable Console Mast to the Frame Assembly
NOTICE: Remove the pre-installed hardware (*) from the Adjustable Console Mast. Use the pull cable in the Adjustable Console Mast to route the
Console Mast cable through the round hole at the base of the Adjustable Console Mast tube to the opening at the top. Attach the Adjustable Console
Mast with the hardware (*). Do not crimp the cables. The ease of Console rotation can be adjusted by the tightness of the pivot screw.
10
*
*
*
6mm
X4
11
11
11
*
*
*
6mm
To Next Page
