Nautilus E10 - Swingarm Component Installation; Installing Swingarm Bearing Cups

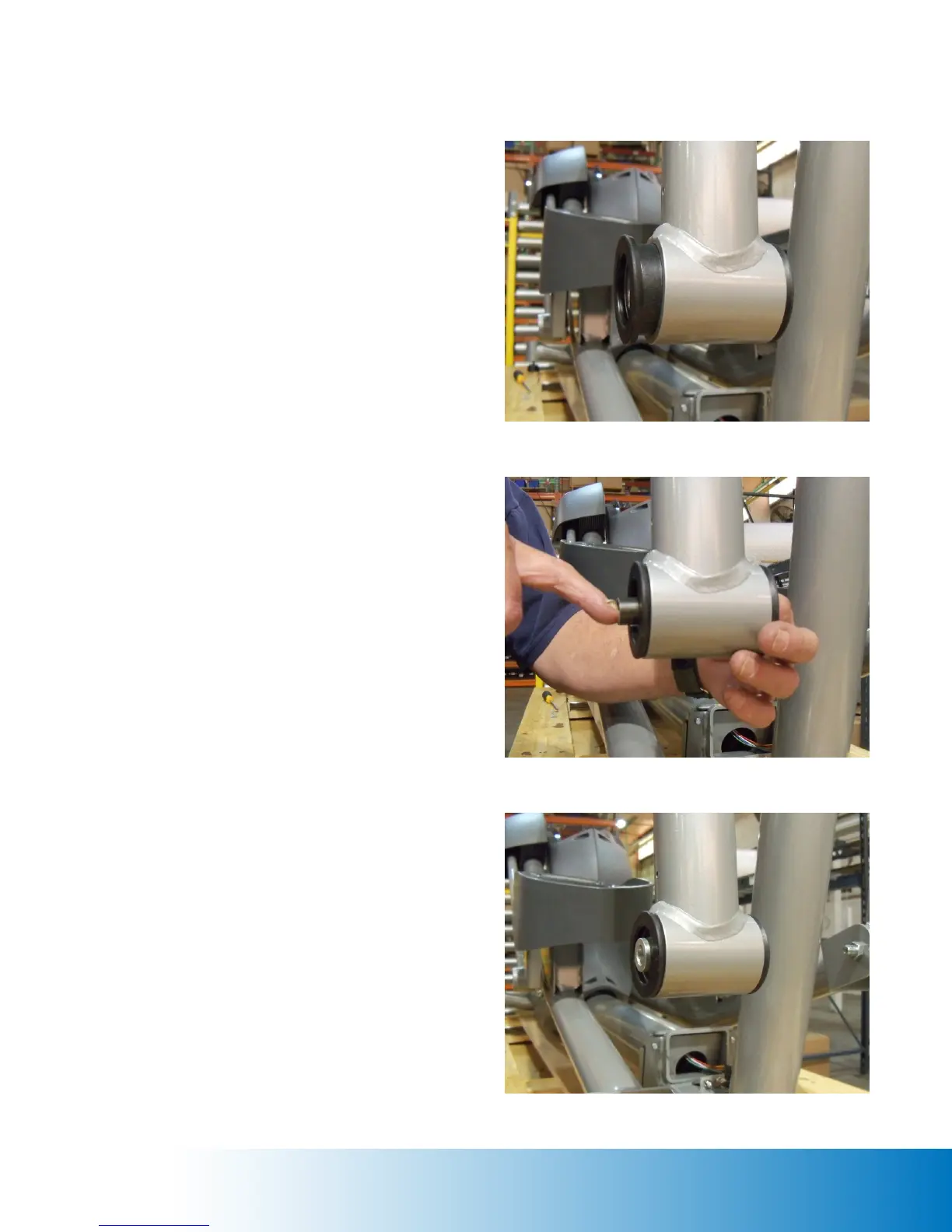

12. Insert (2) molded bearing cups into the
lower swingarm as shown in Figure 2a.
13. Slide (1) lower swingarm spacer
through the bearing cups as shown in
Figure 2b.
14. Insert (2) pulley spacers into the
bearing cups as shown in Figure 2c.
Figure 2a
Figure 2b
Figure 2c
