16
Note: Your machine may not match the image. For reference only.
1. Disconnect and reconnect the AC Adapter from the wall outlet
to turn the power off and on.
2. Push QuickStart and verify that the console shows that the
default resistance level is 4.
Disconnect all power and allow to sit for 5 minutes.

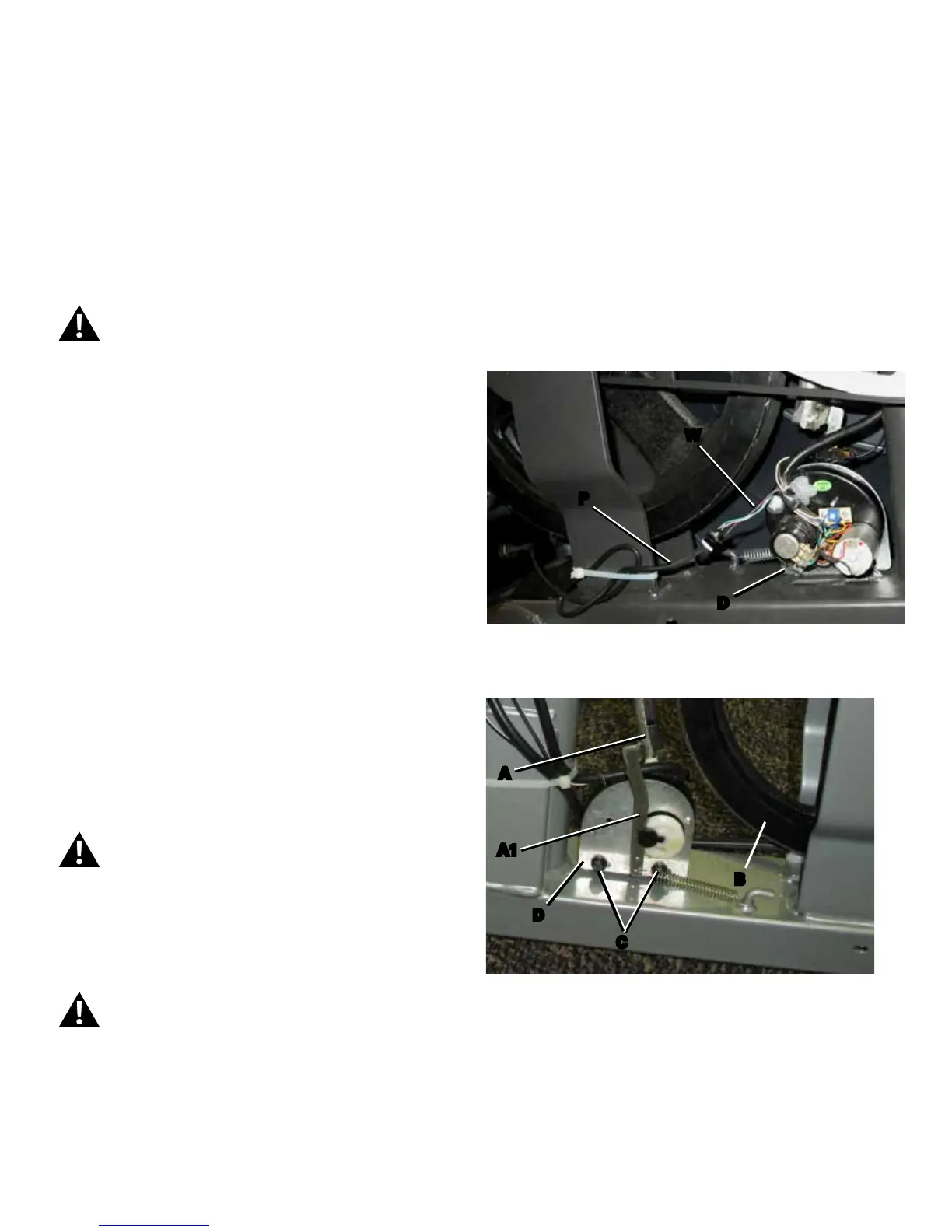

3. Carefully remove the Left Shroud and Right Shroud. (Refer to
the “Replace the Shrouds” procedure.) Turn the Top Shroud to keep
it clear of the pulley assembly. Keep the Power Inlet cable (P) in the
Shroud connected to the wiring harness (W) on the motor (D).
Note: If it is necessary to remove the Top Shroud, reinstall the
Console and Mast.
4. Insert 2.5” x 10” cardboard between the Brake Magnet (A) and
the Flywheel (B), and tape the cardboard to the Brake Magnet.
Note: Be sure the cardboard covers all of the Brake Magnet.
4. Turn the power on again.
Machine is on. Current is active. There is risk of electrical
shock.
5. Use the console to set the resistance to the highest level. This
moves the Brake Magnet Arm (A1) forward. After the Brake Mag-
net Arm stops at the highest resistance level, turn power off.
Disconnect all power and allow to sit for 5 minutes.
6. To adjust the Brake tension, loosen the 2 hex head bolts (C)
and move the Servo Motor assembly (D) until the closest point on
the Brake Magnet (A) is within 3.0 mm (1/8”) of the Flywheel (B).
Tighten the bolts.
NOTICE: It is necessary to remove the shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
Right side
B
D
A
A1
C
P
W
D
Left side
To Next Page
