Nautilus E614 User Manual

38

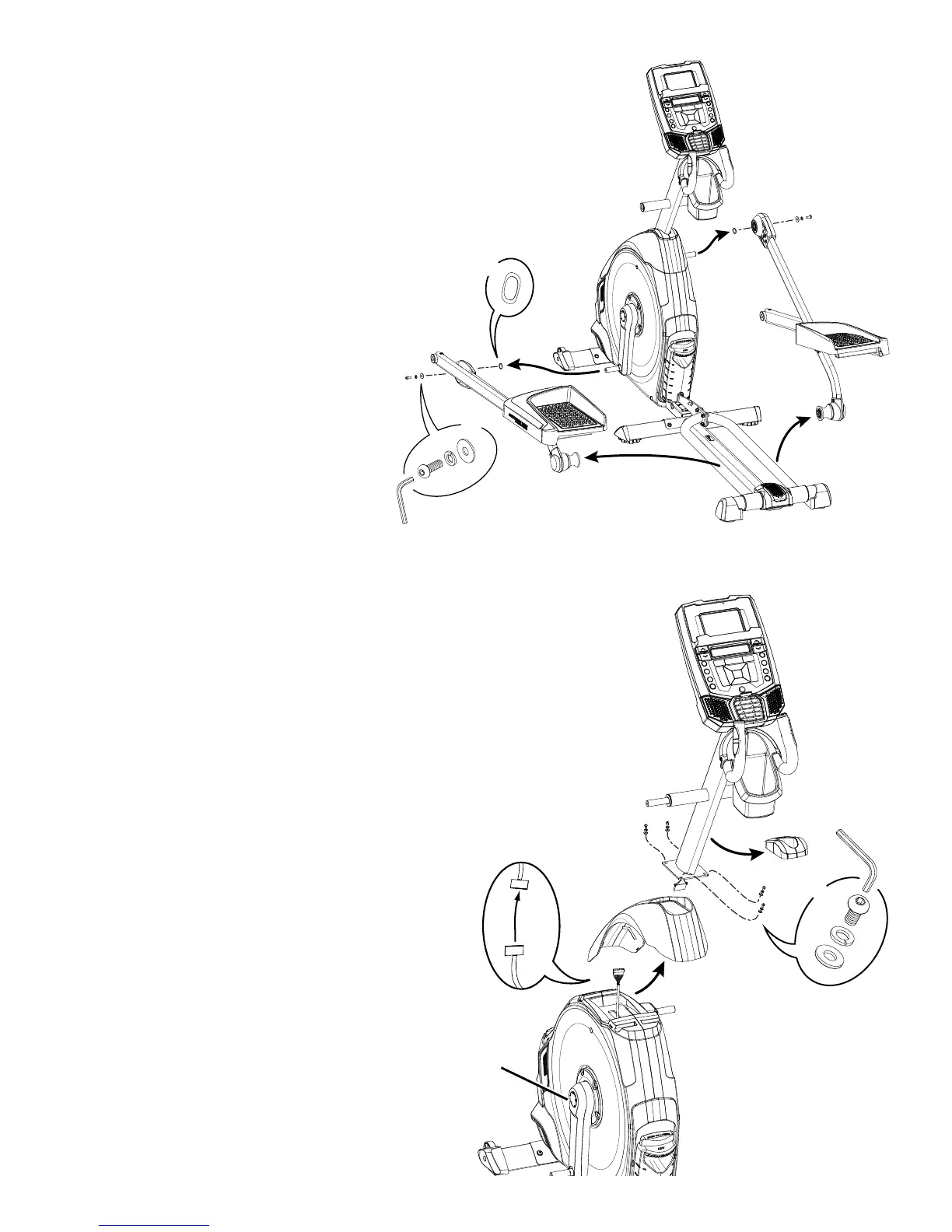

4. Using a 6mm hex key, loosen and remove the indicated hardware
from the Legs, and set it safely aside for reassembly. On each side of the
machine, remove the Leg and Pedal together from the Rail Assembly and
set them safely aside for reassembly.
NOTICE: This step may require two people.
5. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Shroud Cap and Top Shroud up the
Mast.
If you are not replacing the Top Shroud—go to Step 7.
If you are replacing the Top Shroud—continue to Step 6.
6. Remove the hardware (indicated) from the Mast. Gently pull the
Mast out and disconnect the cables. Set the hardware, Mast and Top
Shroud safely aside.
NOTICE: Do not crimp the cables. This step may require two people.
7. Using a flathead screwdriver, remove the Center Cap (A) from the
Crank Arm.
6mm
X4
A
X2
6mm
X2
