11. Attach the new Lift Assembly using the Arm Pivot Rod.
Note: Be sure Levelers are fully raised on Rail Assembly.
NOTICE: With the Arm Pivot Rod under the plate junction, push the Lift
Assembly toward the Frame Assembly and fully tighten hard-
ware. Remove the Arm Pivot Rod after tightening.
Keep fingers away from any pinch hazards when placing or removing
the Arm Pivot Rod.

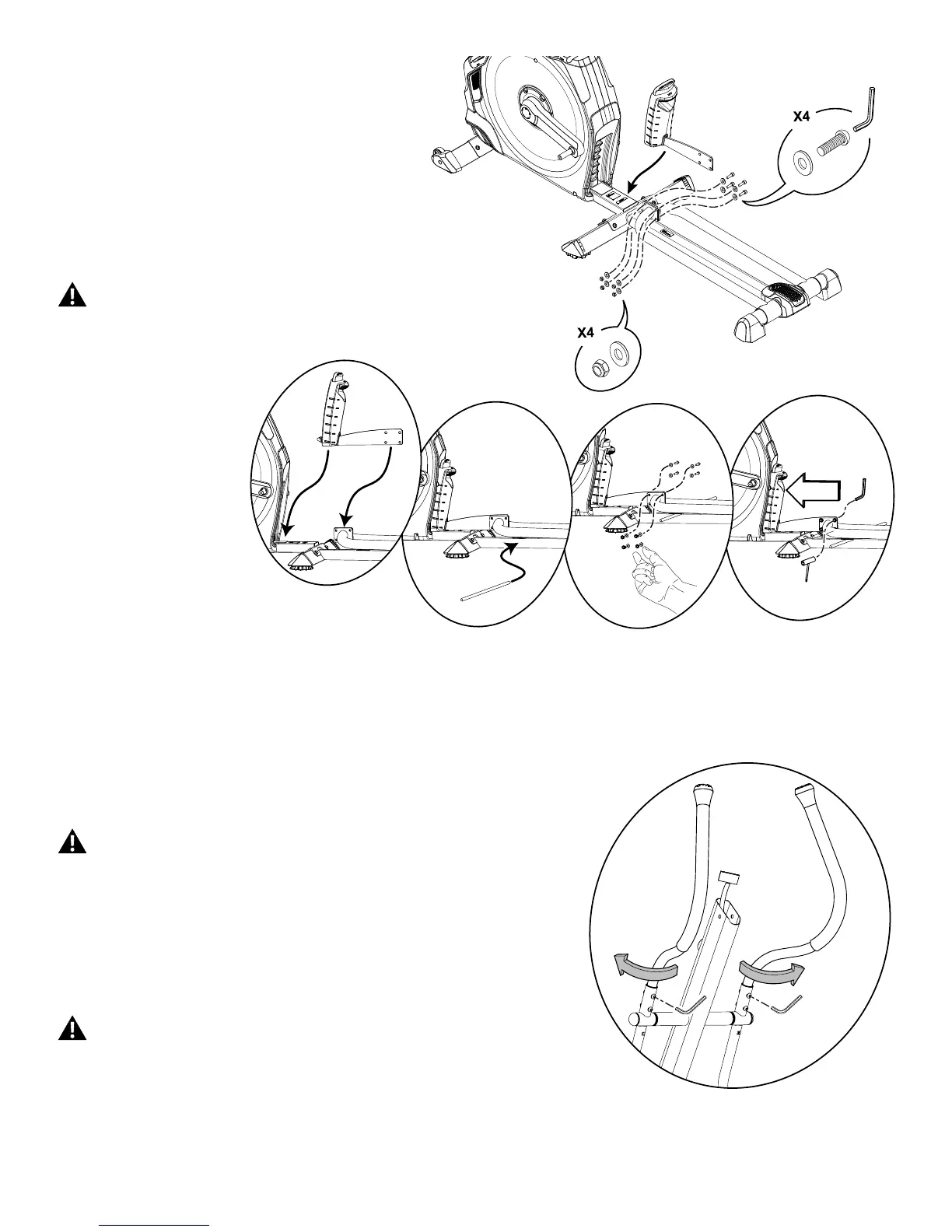

12. Using a 6 mm hex key and a 13 mm wrench, reinstall the Legs and Pedals,
Arm Pivot Rod, and Upper and Lower Handlebar Arms.
NOTICE: This step may require two people.
Make sure the Upper Handlebar Arms are secure before you exercise.
13. Dispose of the old parts.
14. Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and inspected
for correct performance in accordance with the Owner’s Manual.
6mm
6mm
