8. Tie the length of string to the end (A) of the Data Cable at the base
of the Mast. Hold the other end of the Data Cable (B) and carefully pull it
out of the Mast so that the string extends through the length of the Mast.
Untie the string from the old Data Cable and discard the old cable.
9. Tie the end of the string at the base of the Mast to one end of the
replacement Data Cable. Hold the other end of the string and carefully pull
the new Data Cable through the Mast.
NOTICE: Do not crimp the cables.
10. Connect the new Data Cable to the Data Cable from the Main Frame.
NOTICE: Do not crimp the cables. This step may require two people.
11. Reassembly is the reverse procedure.
NOTICE: Do not crimp the cables. Untie the string from the Data
Cable. Do not allow the cables to fall down into the
Console Mast.
Be sure the tabs in the Top Shroud snap into the Main
Assembly.
12. Dispose of the old parts.
13. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the Owner’s
Manual.

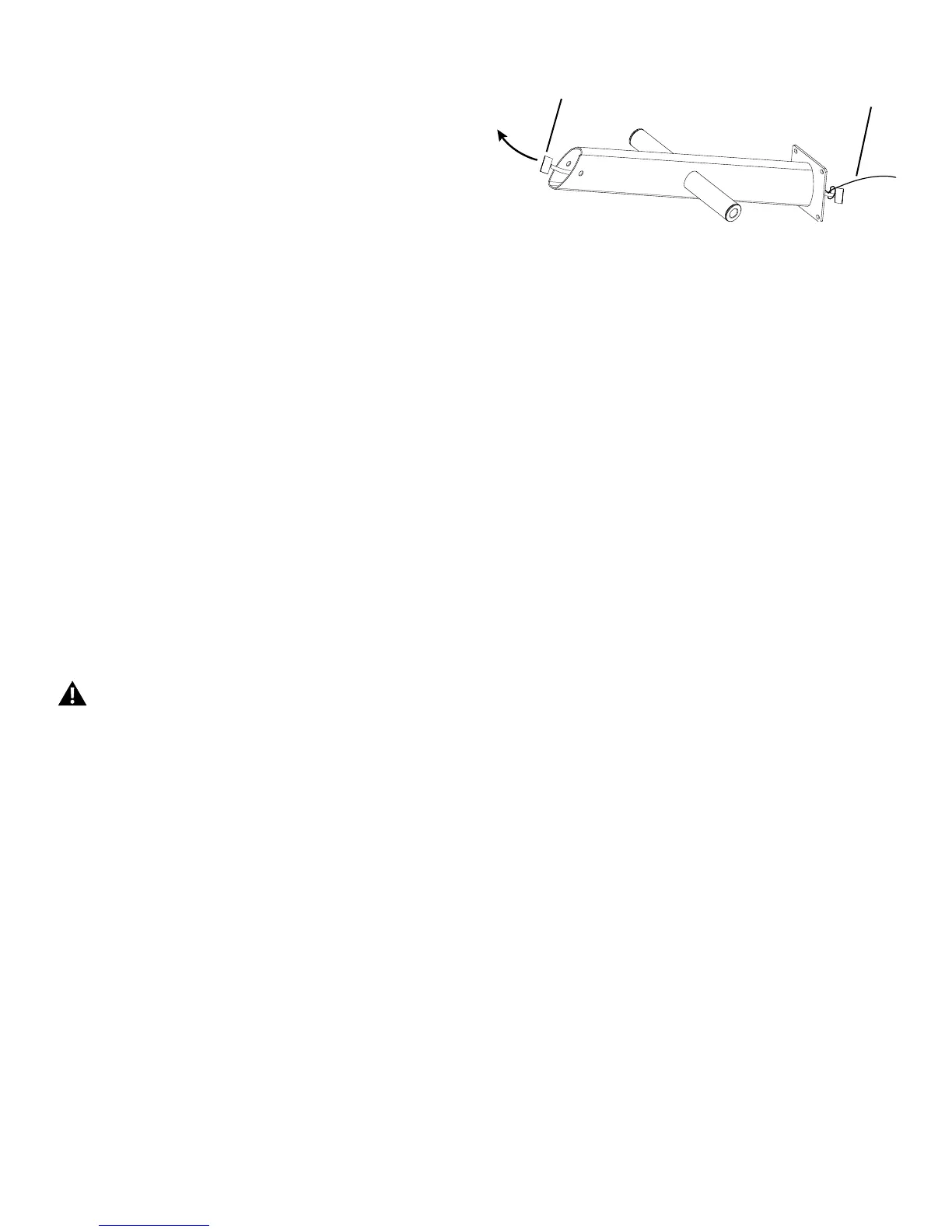

A
