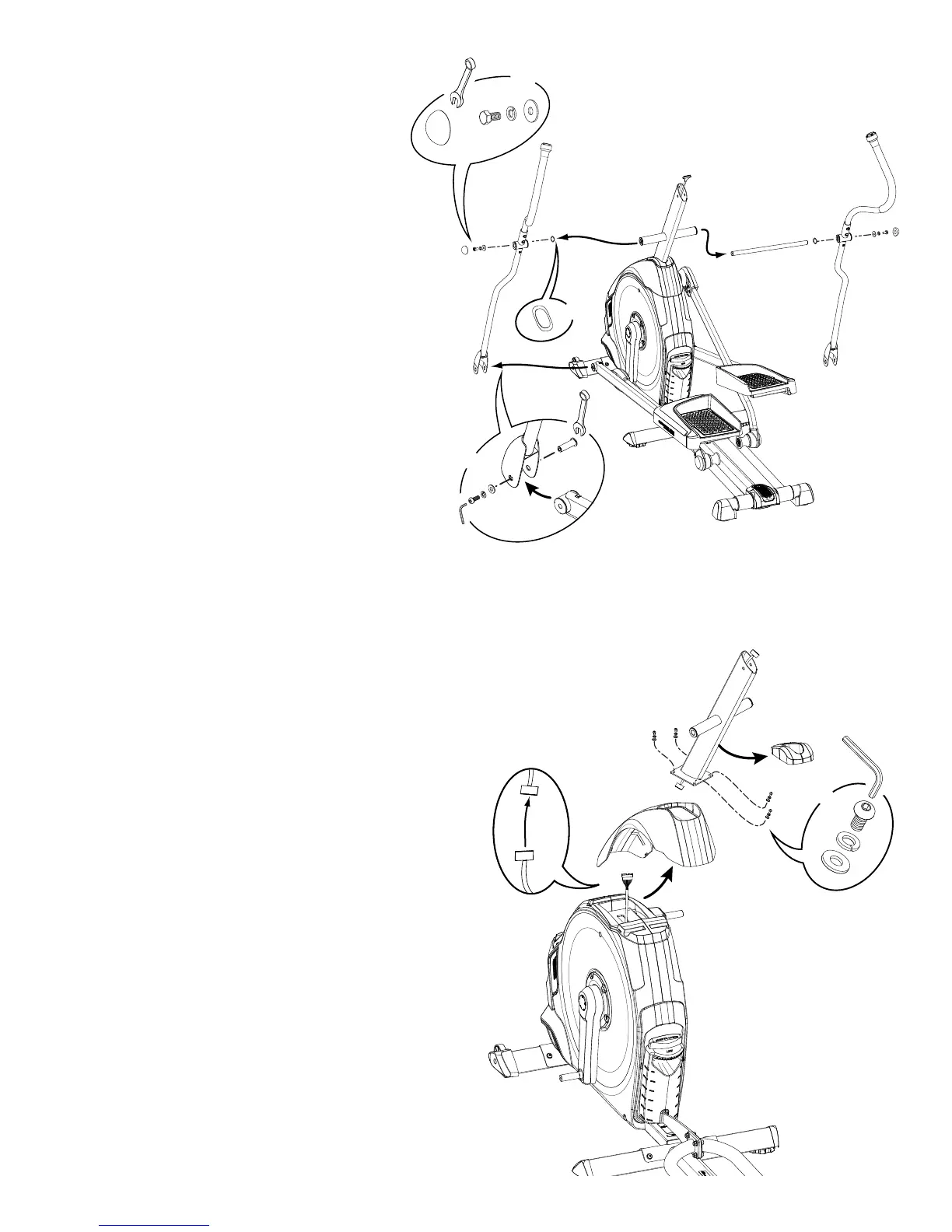

4. Using a small flathead screwdriver, pry the Caps from
the Lower Handlebar Arms.
5. Using a 13 mm wrench, remove the hardware from the
Lower Handlebar Arms and the Arm Pivot Rod. Remove the
hardware, Upper and Lower Handlebar Arms, and Arm Pivot
Rod. Set them safely aside for reassembly.
6. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Mast Boot and Top Shroud up the Mast.
7. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware and Top Shroud safely
aside for reassembly.
NOTICE: Do not crimp the cables. Do not allow the Data Cable to fall
down into the Main Unit. This step may require two people.
6mm
X4
X2
13 mm
X2
6mm
X2
To Next Page
