35
Note: Your machine may not match the image. For reference only.

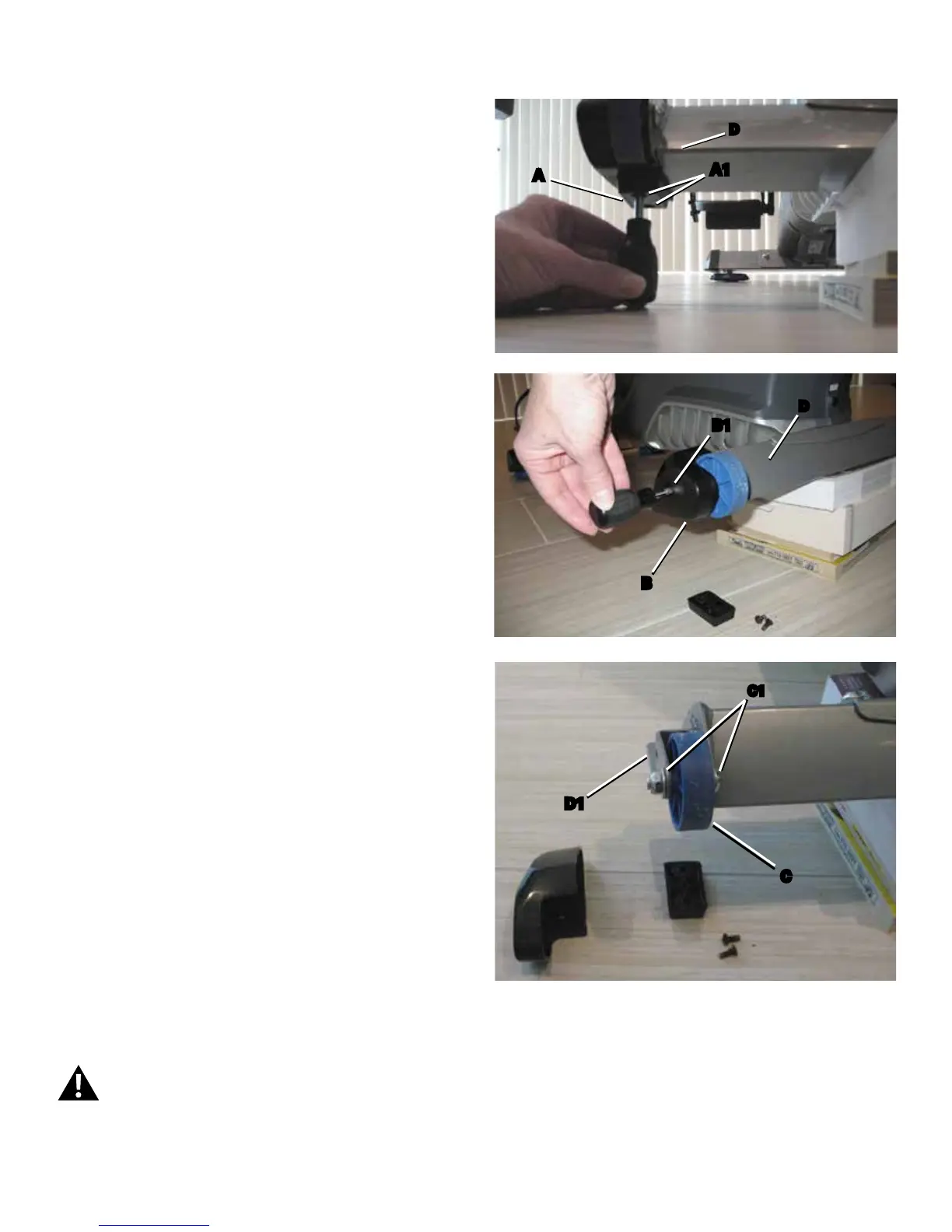

1. Place a static object (like a book or box) under the front
stabilizer (C). The static object should not be compressible.
2. Using a short #2 Phillips screwdriver, loosen and remove
the screws (A1) from the Footpad (A), and set them safely aside.
Remove the Footpad from the front stabilizer (D). Set the Footpad
and screws safely aside.
3. Loosen and remove the screw (B1) from the Endcap assembly
(B) and set it safely aside. Remove the Endcap from the front stabi-
lizer (D). Set the Endcap and screw safely aside.
4. Using the 6mm hex key and 13mm wrench, loosen and remove
the hardware (C1) from the old Transport Wheel assembly (C).
Remove the old Transport Wheel from the front stabilizer bracket
(D1). Set the Transport Wheel and hardware safely aside.
5. Installation is the reverse procedure.
NOTICE: Before fully attaching the Endcap, be sure that the
Transport Wheel can turn freely.
6. Dispose of the old parts.
7. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
