Nautilus E614 User Manual

52

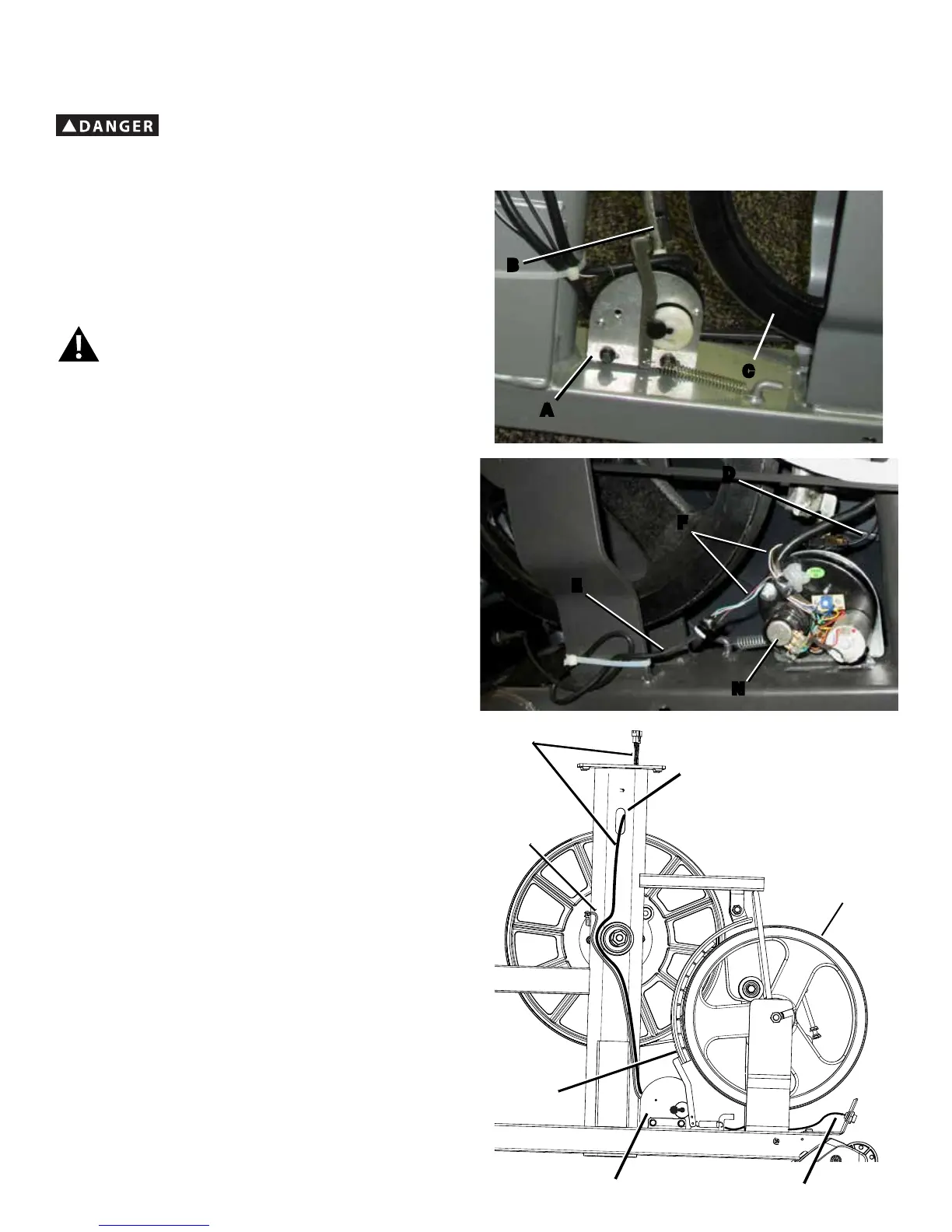

Note: Your machine may not match the image. For reference only.
1. Disconnect and reconnect the AC Adapter from the wall outlet
to turn the power off and on. Push QuickStart and verify that the
console shows that the default resistance level is 4. Set the resis-
tance to the highest level.
Disconnect all power and allow to sit for 5 minutes.
2. Carefully remove the Shrouds. Refer to the “Replace the
Shrouds” procedure in this manual.
3. Measure and mark the position of the Servo Motor bracket (A)
on the Main Frame.
4. Insert 2.5” x 10” cardboard between the Brake Magnet (B) and
the Flywheel (C), and tape the cardboard to the Brake Magnet.
Note: Be sure the cardboard covers all of the Brake Magnet.
5. Observe the cable routing to the wiring harness (F) on your
machine. Disconnect the Speed Sensor Cable (D) and Power Inlet
Cable (E) from the wiring harness.
6. Tie the length of string to the end of the lower Console Cable
(G) at the top of the Mast mount. Remove the zipties that attach the
lower Console Cable to the Frame. Pull the cable and string down
through the hole (H) on the side of the Frame so that the string
extends through the Frame.
7. Untie the string from the Console Cable (G).
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
It may be necessary to adjust the brake tension at the end of this procedure. Refer to the “Set the Brake Tension” procedure.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall
outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a
secure location.
C
A
B
C
E
A
G
H
B
D
D
E
F
N
