17
REPLACEMENT PROCEDURE SKILL LEVEL
Level I : Low - very little mechanical knowledge or exposure.
Level II : Intermediate - some experience with mechanical procedures
Level III : Advanced - knowledgeable about mechanical procedures
DANGER
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from
the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a
secure location.
!
When disposing of old parts, obey the applicable local and provincial requirements.
For instructions to replace the following parts, please refer to the Assembly Manual for your machine:
• Power Cord

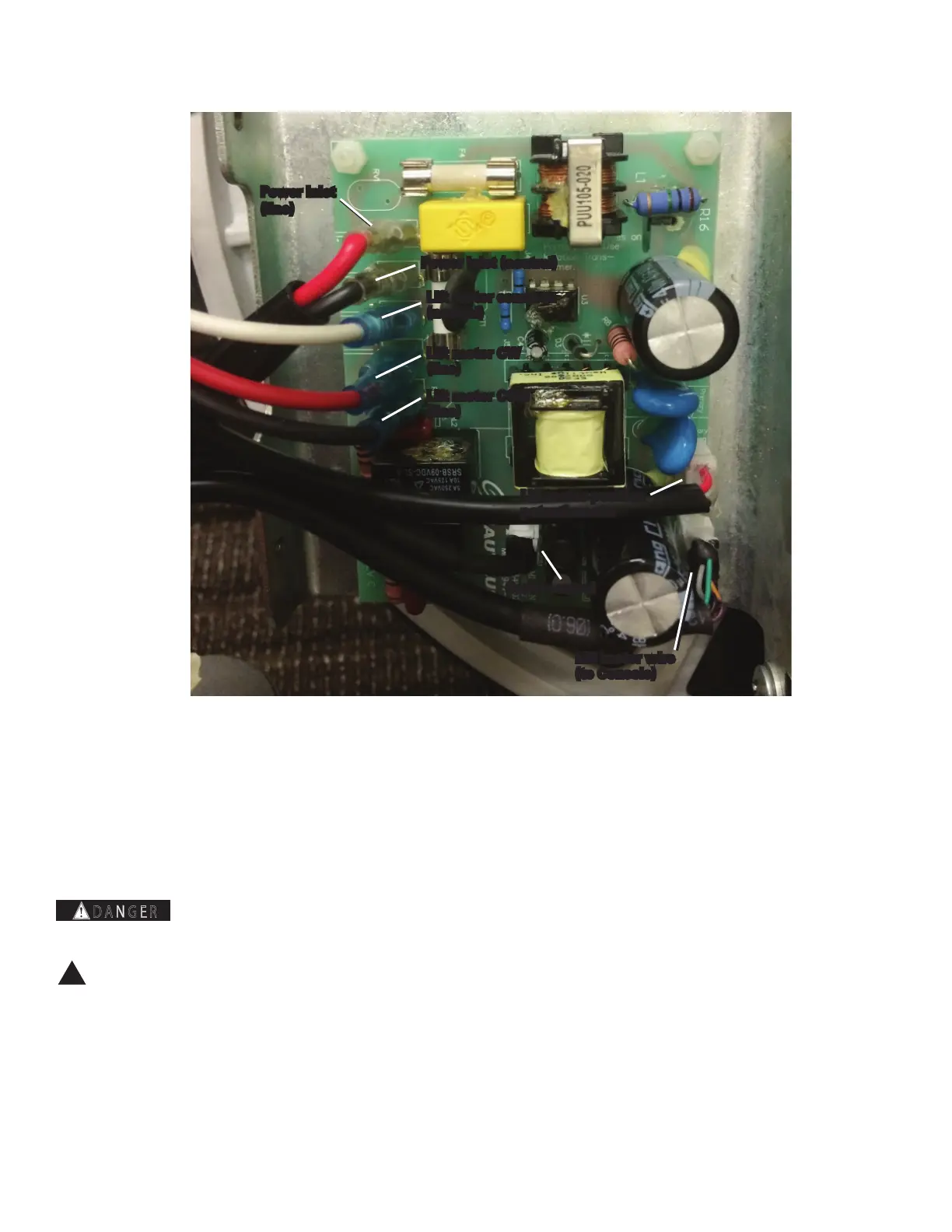

Motor Control Board (MCB)
The MCB shown is on an E626 (MY 2014) machine.
Power inlet
(line)
Power inlet (neutral)
Lift motor common
(neutral)
Lift motor CW
(line)
Lift motor CCW
(line)
Lift motor position
potentiometer
Lift motor wire
(to Console)
Servo control
