Nautilus E616 Service Manual

30
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a secure
location.
Note: Your machine may not match the image. For reference only.

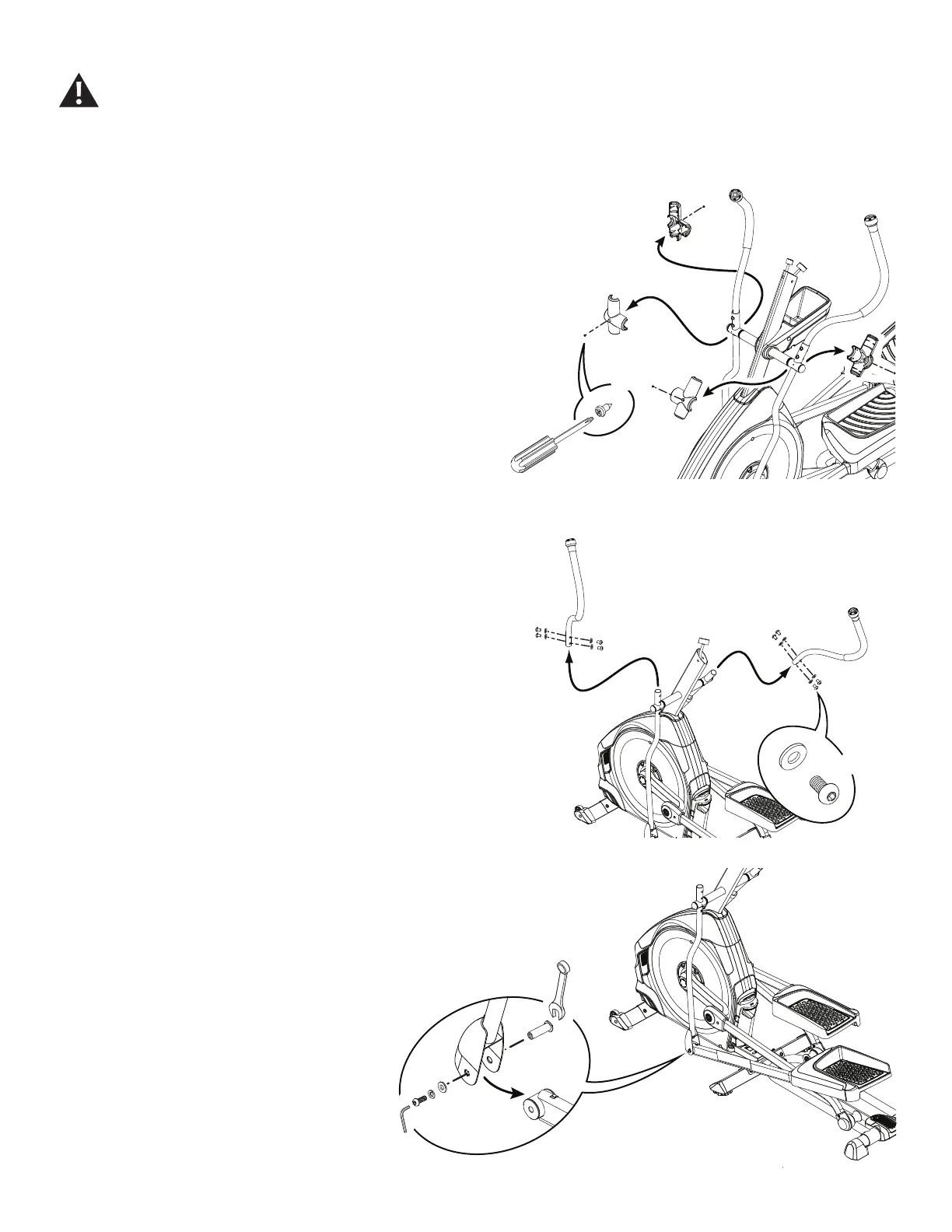

1. E616 only—loosen and remove the 4 screws from the Handlebar
Shrouds. Remove the Handlebar Shrouds and set them safely aside.
2. Using a 6 mm hex wrench, remove the 8 indicated bolts from the Upper
Handlebar Arms.
3. Remove the Upper Handlebar Arms and set them safely aside.
4. Using a 6 mm hex wrench and a 13 mm wrench, remove the 2 indicated
bolts from the Lower Handlebar Arms and Pedals.
X8
#2
X4
6mm
13mm
Console-static handlebar not shown for clarity
