Nautilus E616 Service Manual

14

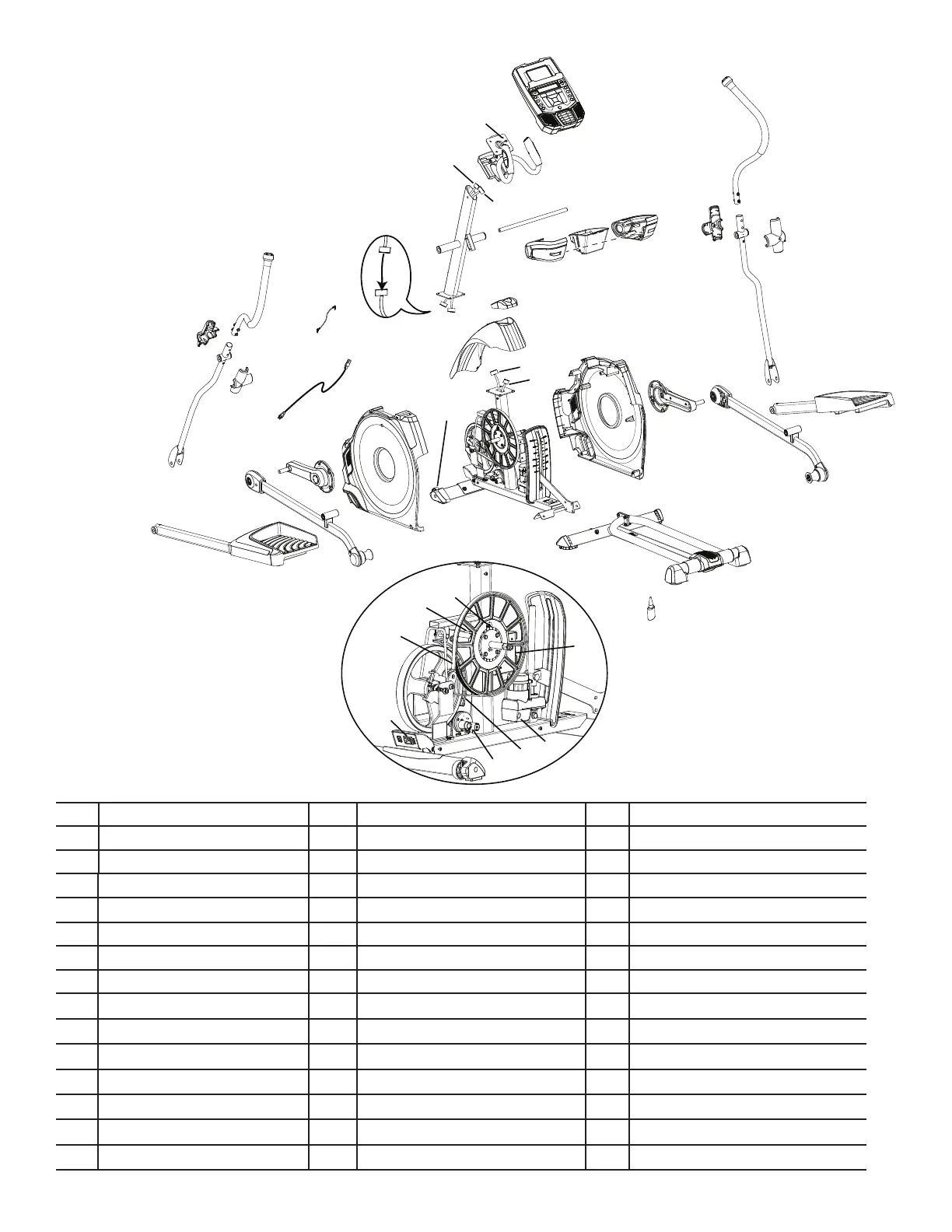

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
$ &RQVROH P 6KURXG8SSHU EE /LIW0RWRU:LUH8SSHU
B +HDUW5DWH+5&DEOH Q Shroud, Left FF /LIW0RWRU:LUH/RZHU
& +DQGOHEDU6WDWLF R +DQGOHEDU6KURXG2XWHU GG 'ULYH%HOW
D 'DWD,2&DEOH8SSHU S +DQGOHEDU6KURXG,QQHU ++ 'ULYH3XOOH\
E $UP3LYRW5RG T 'DWD,2&DEOH/RZHU ,, 6SHHG6HQVRU0DJQHW
F &RQVROH0DVW 8 ,QFOLQH$GMXVWHU$VVHPEO\ JJ 5306SHHG6HQVRU
G :DWHU%RWWOH+ROGHU 9 )UDPH$VVHPEO\ KK Flywheel
+ +DQGOHEDU$UP/RZHU5LJKW : )URQW6WDELOL]HU LL 0RWRU&RQWURO%RDUG0&%
, +DQGOHEDU$UP8SSHU5LJKW ; 5DLO$VVHPEO\ MM 6HUYR0RWRU
J 3HGDO$UP5LJKW Y &UDQN$VVHPEO\/HIW NN %UDNH$VVHPEO\
K &UDQN$VVHPEO\5LJKW Z Leg, Left OO ,QFOLQH0RWRU$VVHPEO\
L Leg, Right $$ 3HGDO$UP/HIW PP Power Switch
M Roller BB +DQGOHEDU$UP/RZHU/HIW QQ $&3RZHU&RUG
N Shroud, Right && +DQGOHEDU$UP8SSHU/HIW RR 0HGLD&DEOH
O 6KURXG&DS DD 7UDQVSRUW:KHHO$VVHPEO\ SS 6LOLFRQH/XEULFDQW%RWWOH
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
BB
CC
DD
R
S
T
D
QQ
EE
FF
GG
HH
II
KK
JJ
OO
MM
NN
PP
U
LL
SS
RR
E616 (MY14)

Nautilus E616 Specifications

General

Type	Upright
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Drive System	Belt
Display	LCD
Heart Rate Monitoring	Contact and Telemetry Enabled
Max User Weight	300 lbs
Warranty	10 years frame, 1 year labor
Flywheel	Perimeter Weighted
Product Weight	78.5 lbs (35.6 kg)
