16
Electrical Layout
M
N
AC

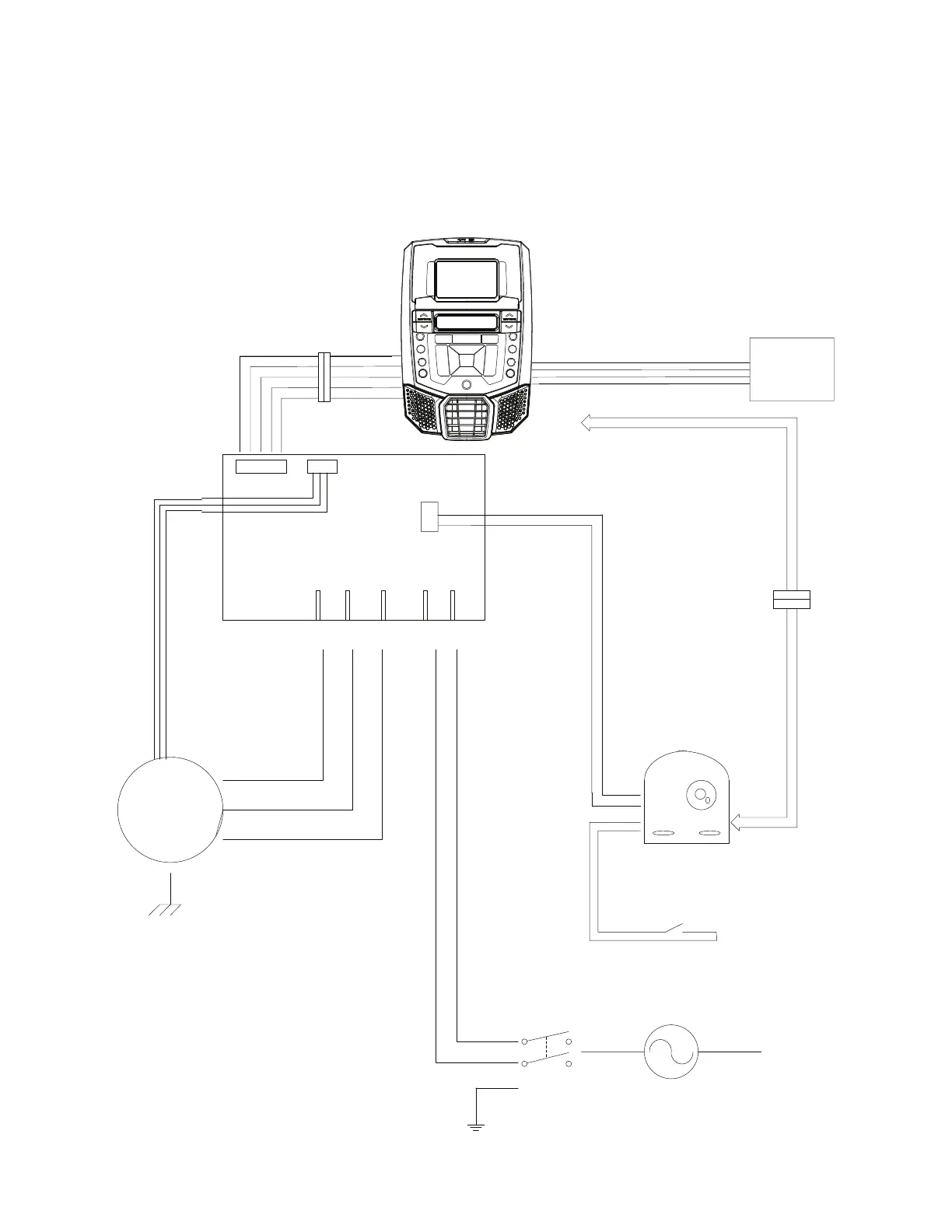

NLS E616 Wiring Diagram
Servo motor, 3V
AC Power input, 120V
Lift motor, 120V
MCB
Console
Contact
Heart Rate
(CHR) sensor
HR cable, 4Pin
Lift motor wire, 5Pin
Lift motor
cable, 3Pin
Lift motor
potentiometer
cable, 3Pin
Servo control
cable, 9VDC,
2Pin
I/O (Data)
cable, 12Pin
Red
Red
Black
Black
White
CCW CW N L
Power inlet
cable
RPM sensor
(magnetic reed switch)
