89
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power
cord in a secure location.
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
Note: Your machine may not match the image. For reference only.

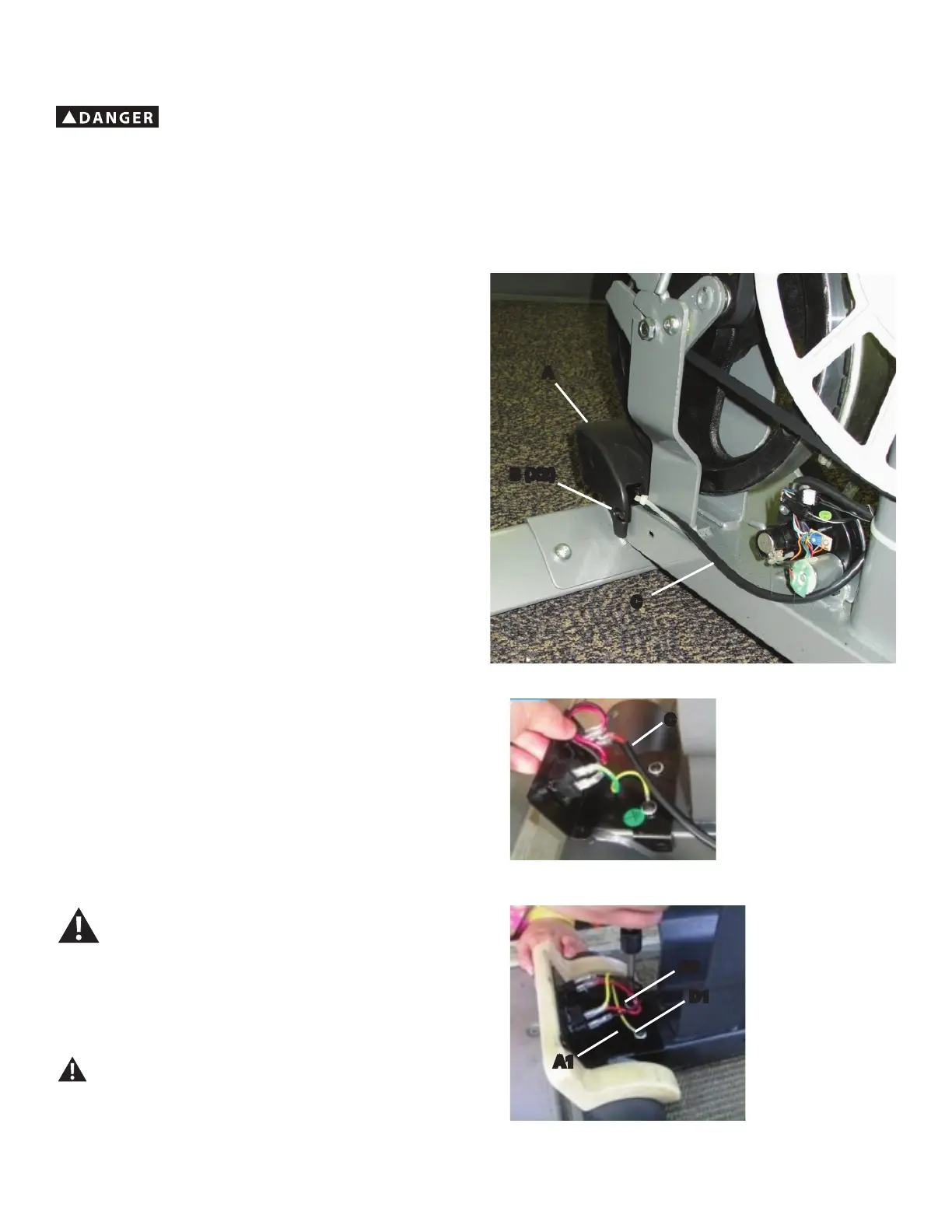

1. Remove the Shrouds. Refer to the “Replace the Shrouds” Procedure.
2. Loosen and remove the screws (B) that attach the back cover of the
Power Switch assembly (A) to the sides of the Frame. Remove the back
cover.
NOTICE:'RQRWFULPSWKHFDEOH
3. Carefully disconnect the Power Inlet cable (C) from the Power Switch
assembly.
4. /RRVHQDQGUHPRYHWKHVFUHZV''WKDWDWWDFKWKH3RZHU
Inlet bracket to the Frame. Remove and discard the old Power Switch
assembly.
5. Installation is the reverse procedure.
Use screw D1 to attach the green ground wire to the bracket
and Frame. Be sure not to crimp any cables.
6. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
C
A
B (X2)
C
D2
D1
A1
The Power Switch assembly shown is on a Schwinn
™
470 machine.
