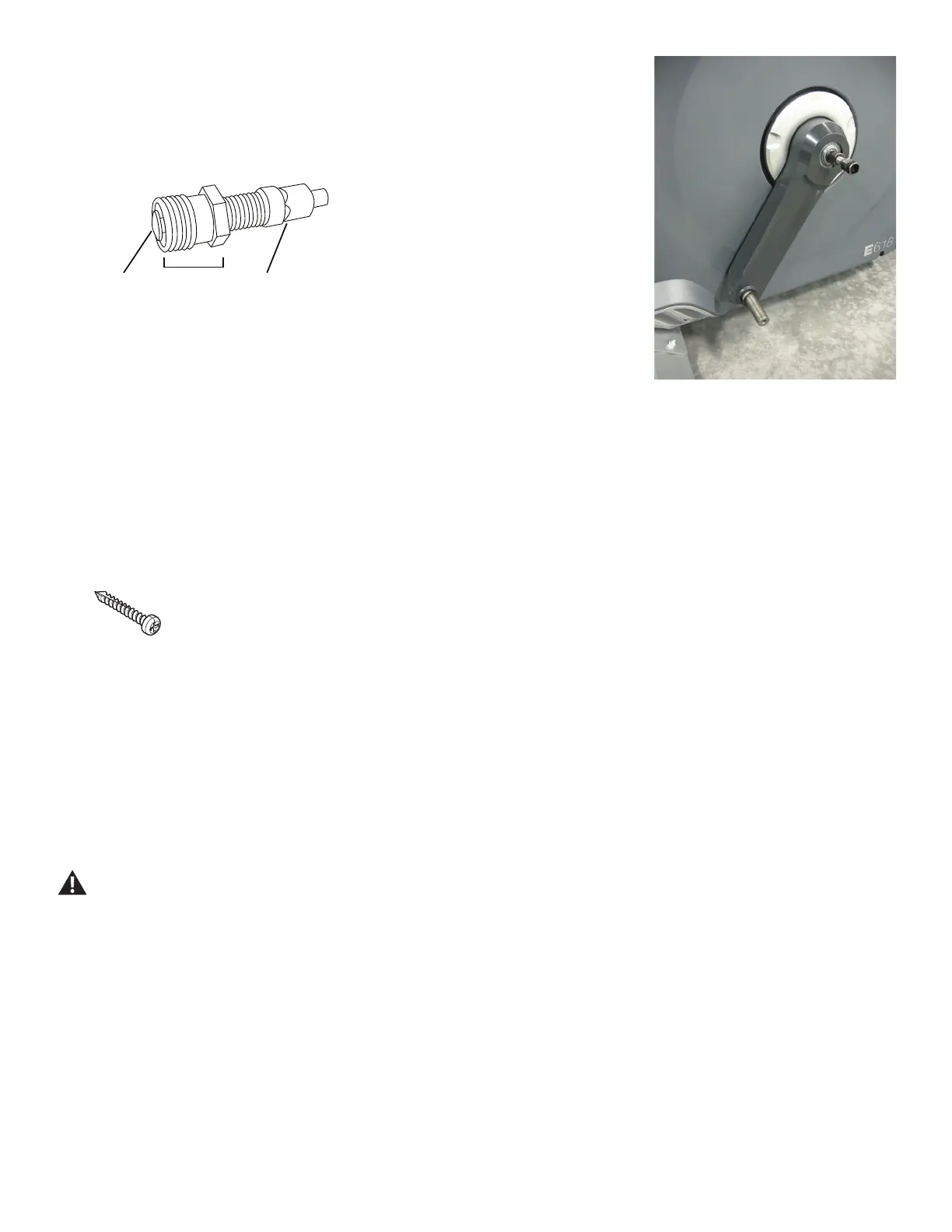

7. Thread the Crank Puller into the Crank Arm. When the Crank Puller is
in the correct position, only 1-2 threads on the outer portion (CP2) of the
Crank Puller should show.
Note: %HVXUHWKHHQGRIWKH%ROW&3RIWKH&UDQN3XOOHULVÀXVKZLWK
the Nut (CP2) as shown, before use.
8. Using a wrench, turn the inner portion (CP3) of the Crank Puller
clockwise. The Crank Arm will slide off as it is tightened.
Note: Be advised that it may take a lot of force to get the Crank Puller to
start to slide off the Crank Arm.
9.,QVWDOODWLRQLVWKHUHYHUVHSURFHGXUH3XWWKH/HIW6KURXGLQSRVLWLRQ¿UVW
WRDOLJQWKHVFUHZVIRUWKH5LJKW6KURXG,QVWDOOWKHWRSVFUHZV¿UVW%H
sure the tabs in the Motorized Lift Cover snap into the Side Shrouds.
NOTICE: This step may require two people. Be sure not to crimp
any cables.
Note: Self-tapping screws attach the Shrouds to the Frame.
Installation does not require the use of the crank puller. Be sure the Crank
Arms are connected at 180° from each other.
10. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
