Nautilus E616 Service Manual

45
Note: Your machine may not match the image. For reference only.

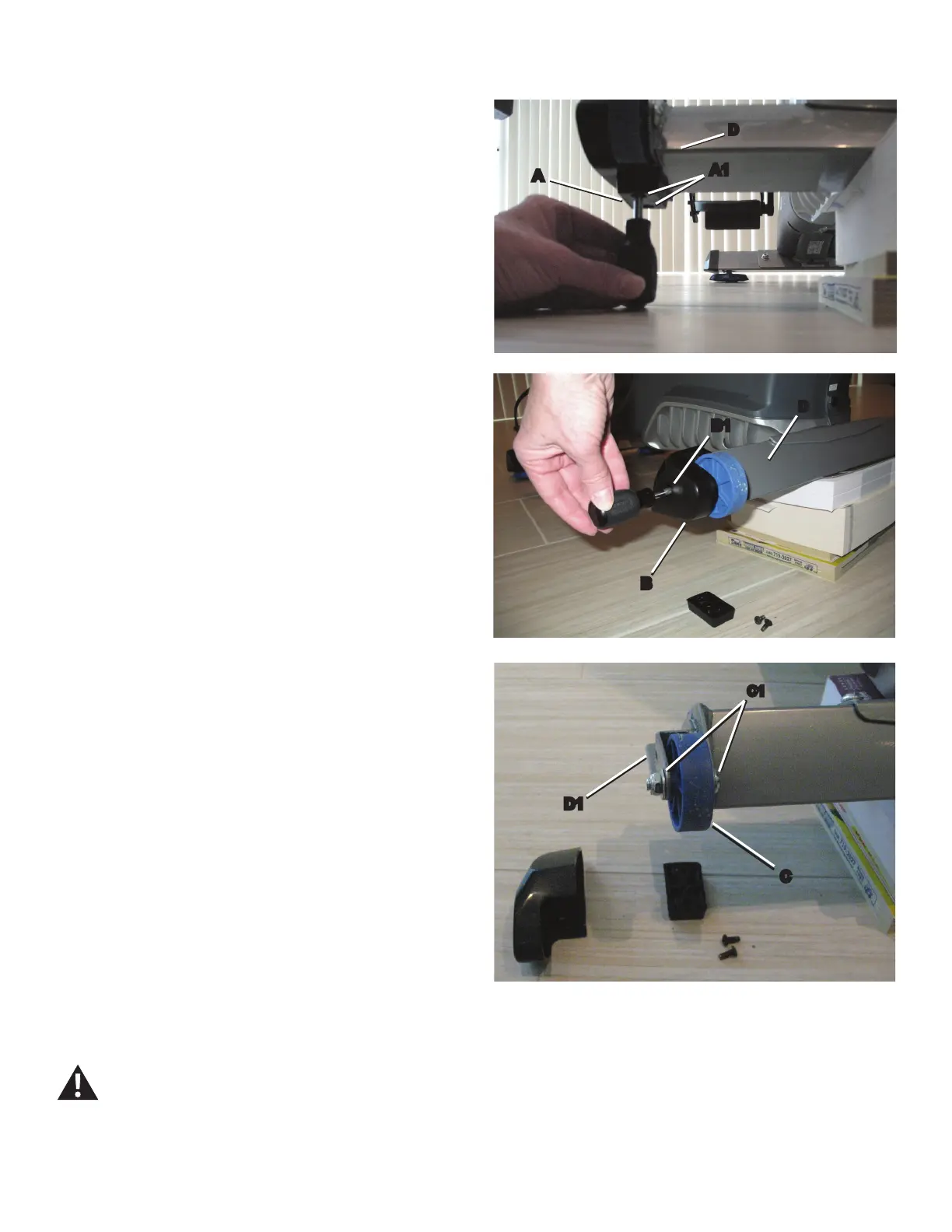

1. Place a static object (like a book or box) under the front stabilizer (C).
The static object should not be compressible.
2. Using a short #2 Phillips screwdriver, loosen and remove the screws
(A1) from the Footpad (A), and set them safely aside. Remove the
)RRWSDGIURPWKHIURQWVWDELOL]HU'6HWWKH)RRWSDGDQGVFUHZVVDIHO\
aside.
3. Loosen and remove the screw (B1) from the Endcap assembly (B)
DQGVHWLWVDIHO\DVLGH5HPRYHWKH(QGFDSIURPWKHIURQWVWDELOL]HU'
Set the Endcap and screw safely aside.
4. Using the 6mm hex key and 13mm wrench, loosen and remove
the hardware (C1) from the old Transport Wheel assembly (C). Remove
WKHROG7UDQVSRUW:KHHOIURPWKHIURQWVWDELOL]HUEUDFNHW'6HWWKH
Transport Wheel and hardware safely aside.
5. Installation is the reverse procedure.
NOTICE: Before fully attaching the Endcap, be sure that the Trans-
port Wheel can turn freely.
6. 'LVSRVHRIWKHROGSDUWV
7. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
A
D
A1
C1
C
D1
B1
B
D

Nautilus E616 Specifications

General

Type	Upright
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Drive System	Belt
Display	LCD
Heart Rate Monitoring	Contact and Telemetry Enabled
Max User Weight	300 lbs
Warranty	10 years frame, 1 year labor
Flywheel	Perimeter Weighted
Product Weight	78.5 lbs (35.6 kg)
