Nautilus NS300X
ASSEMBLY
STEP 9
Step 9 Components: Procedure:
# Component Qty

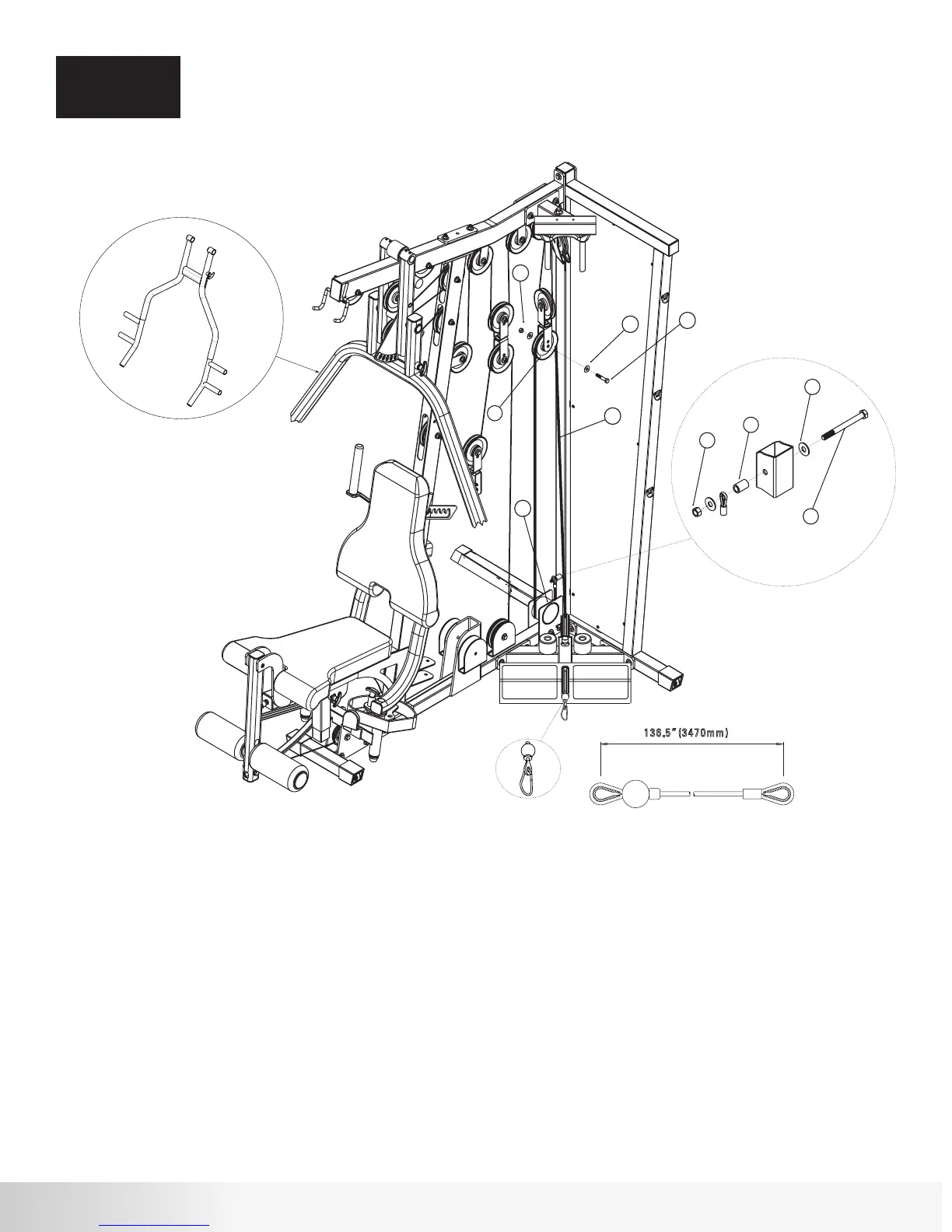

A. Loop Cable #1 (48) around a 4 1/2” Pulley (45) and place it in the Double
Floating Pulley Bracket shown. Attach Pulley to bracket in the inner hole
using the hardware shown. Tighten hardware securely.
B. Wrap Cable #1 (48) under Cable Housing (7) and attach termination to
Rear Frame using hardware shown in Detail A. DO NOT OVER TIGHTEN.
Note: This cable termination is used for exercise attachments such as a
leg press. If an attachment is used, do not install Cable Housing (7).
Please refer to attachment instructions for installation.
45
48
56
62
71
73
77
4 1/2” Pulley
Cable #1 - Low Row (136.5”)
Hex Bolt 3/8” x 4”L
Hex Bolt 3/8” x 2”L
3/8” Flat Washer
3/8” Lock Nut
Pulley Spacer
1
1
1
1
4
2
1
48
45
62
62
71
73
2" L
56
71
77
73
4" L
136.5” (3470mm)
A
B
NS300X Press Arm
