Nautilus R614 User Manual

37
Maintenance Parts
A
S
T
U
V
B
C
D
E
F
G
H
I
J
K
L
M
N
N
O
P
Q
R
T
V
W
X
Y
Z
AA
BB
CC
DD
FF
EE
R
GG
GG

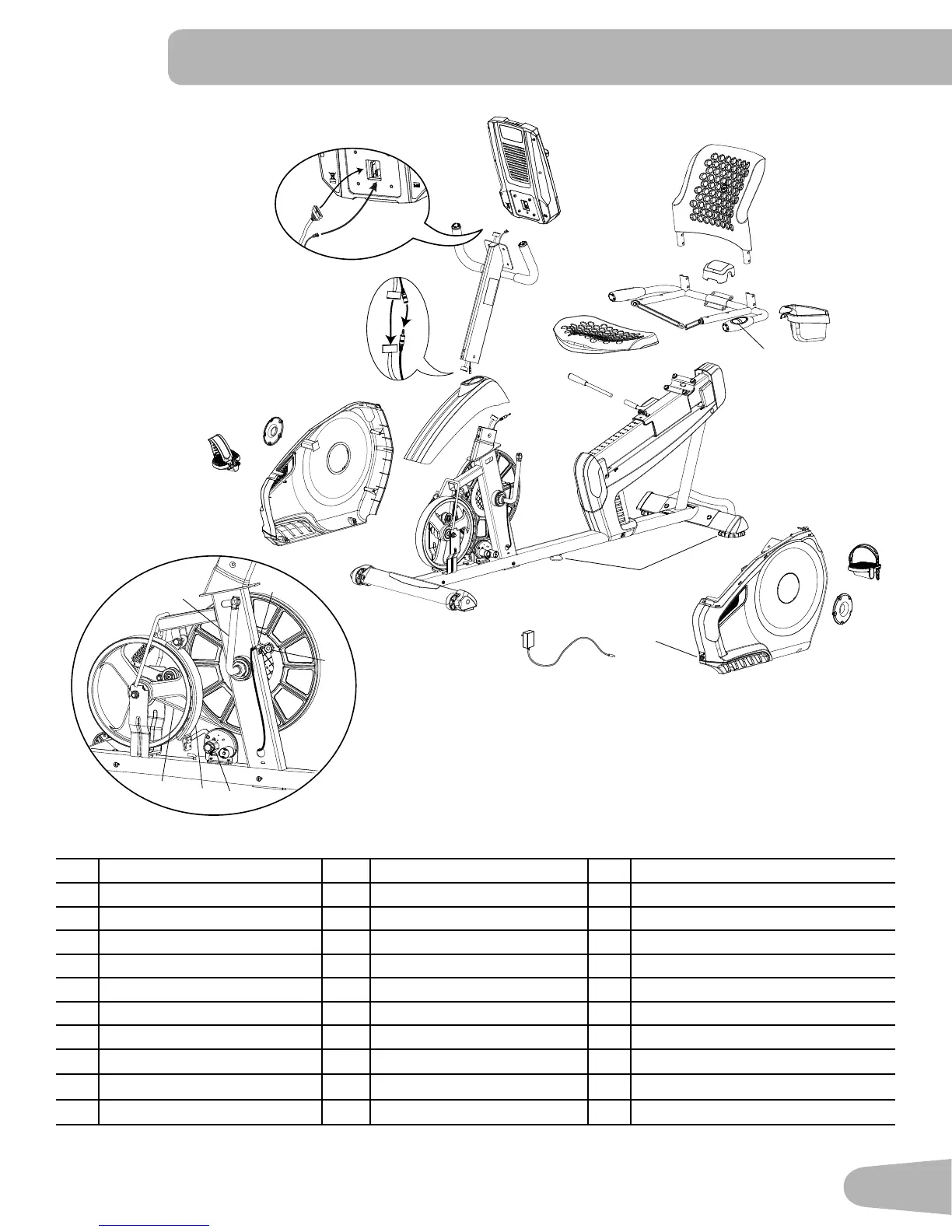

A Console L Stabilizer, Front W Contact Heart Rate Sensor (CHR)
B Console Mast M Transport Wheel X Flywheel
C Seat Back N Pedals Y Drive Pulley
D Seat Cover O Shroud, Right Z Servo Motor
E Water Bottle Holder P Shroud, Upper AA Brake Assembly
F Handlebar, Side Q Shroud, Left BB Drive Belt
G Seat Bottom R Crank Arm CC Speed Sensor Magnet
H Seat Adjustment Handle S Console Cable, Lower DD Speed Sensor
I Frame Assembly T Console Cable, Upper EE Power Inlet
J Rear Stabilizer U Heart Rate Cable, Lower FF AC Adapter
K Leveler V Heart Rate Cable, Upper GG Cover, Crank Disc
