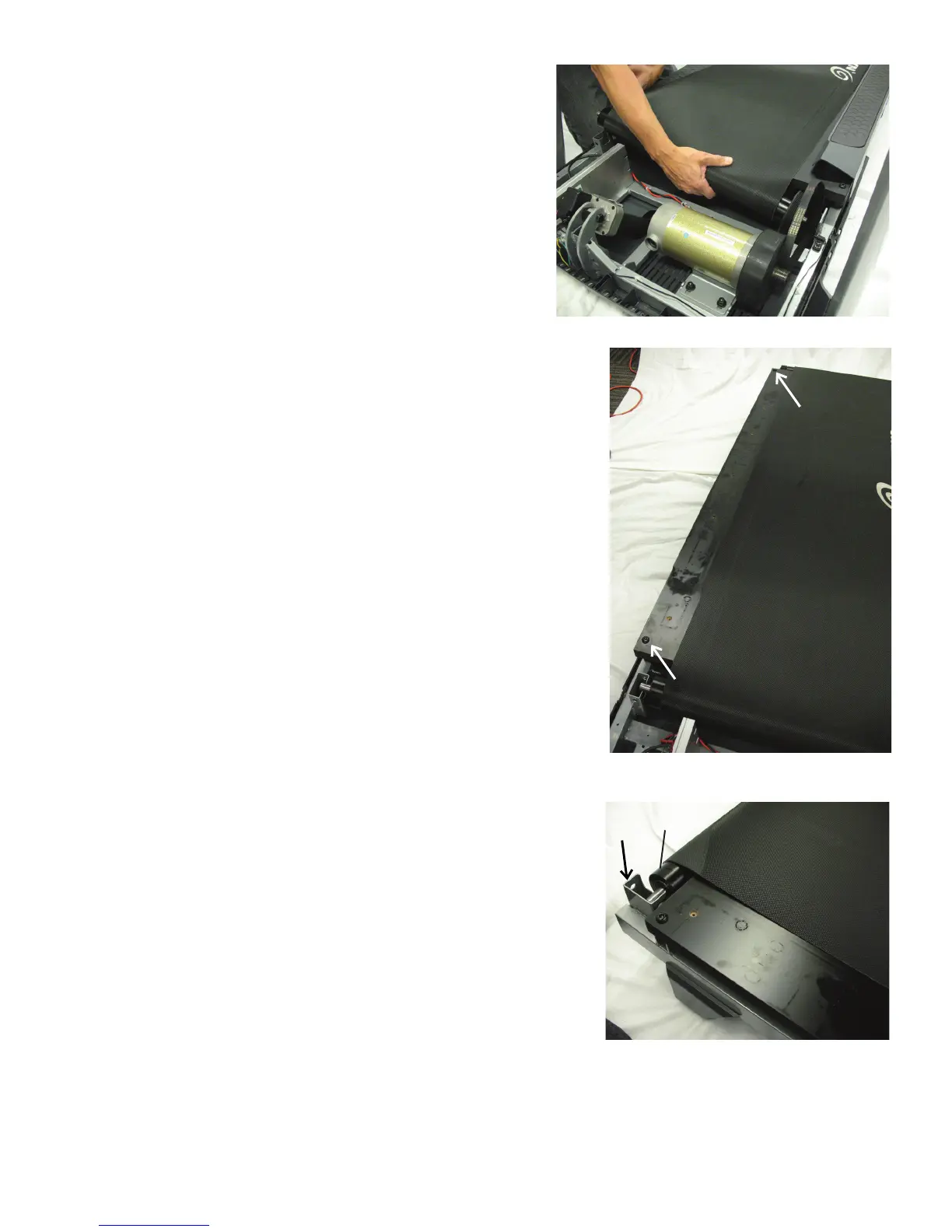

23. Lift and pivot the Front Roller out of the Frame, and slide it out of the
Walking Belt. This will free the Drive Belt from the Front Roller.
24. Using a 6mm hex wrench, remove the 2 indicated screws from the
Deck.
25.Usinga6mmhexwrench,nishremovingtheAdjustmentBoltfrom
the Rear Roller.
Note: be sure to record the number of turns of the Adjustment Bolt it takes
to remove it. This will assist with reassembly.
