Nautilus T624 Service Manual

21

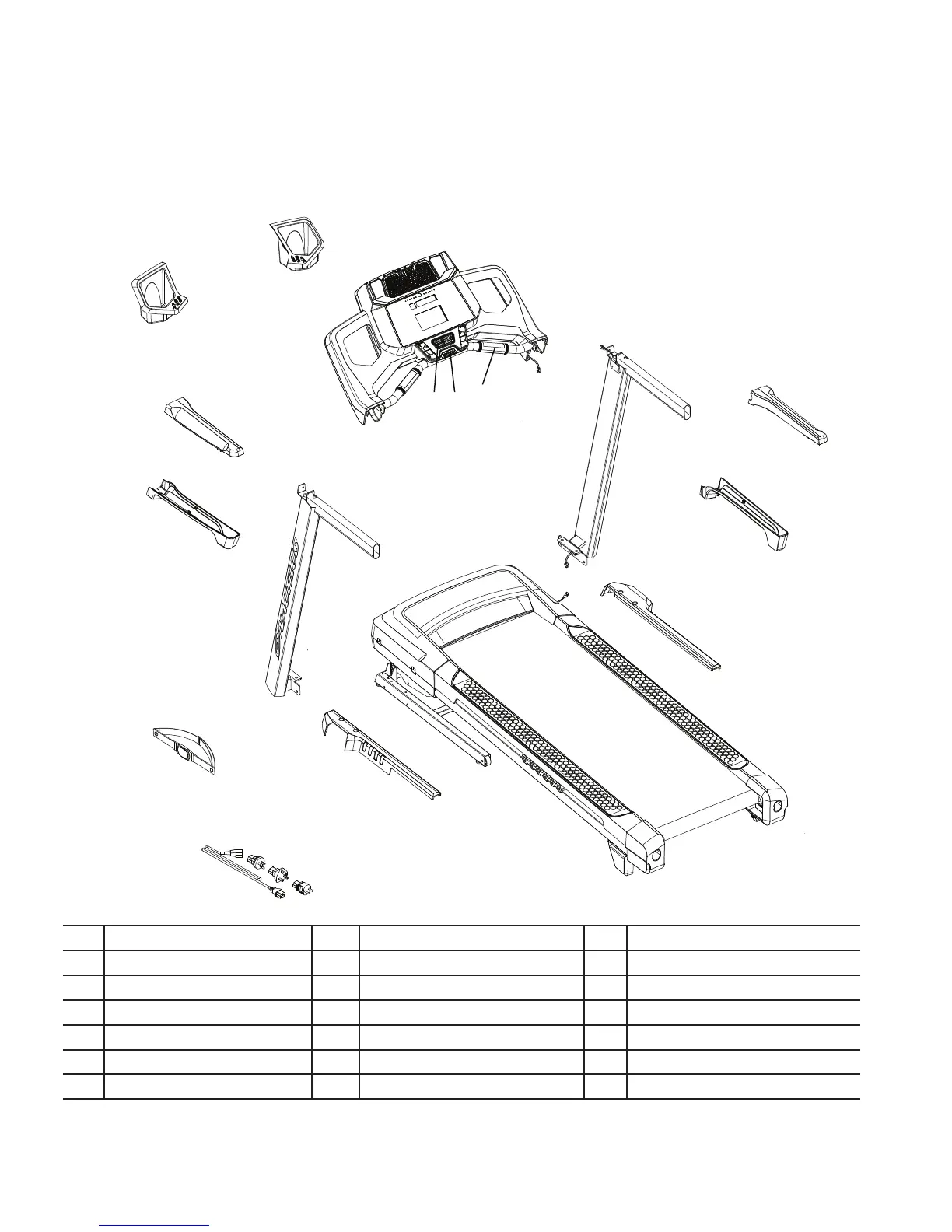

A Console Assembly H Grip, Upper Right O Heart Rate Chest Strap
B Safety Key Port I Grip, Lower Right P Upright, Left
C Fan J Base Shroud, Right Q Grip, Lower Left
D Contact Heart Rate Sensor K Base Cable R Grip, Upper Left
E Console Cable L Base Assembly S Tray, Left
F Right Upright Cable M Base Shroud, Left T Tray, Right
G Upright, Right N Power Cord
Maintenance Parts
T626 / T686 / 570
T
S
A
G
Q
R
H
I
J
L
M
P
O
N
D
C
B
F
E
K

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
