Nautilus T624 Service Manual

46
B
F
X2
A
F
X2
E
E
B
F
X2
A
F
X2
E
E

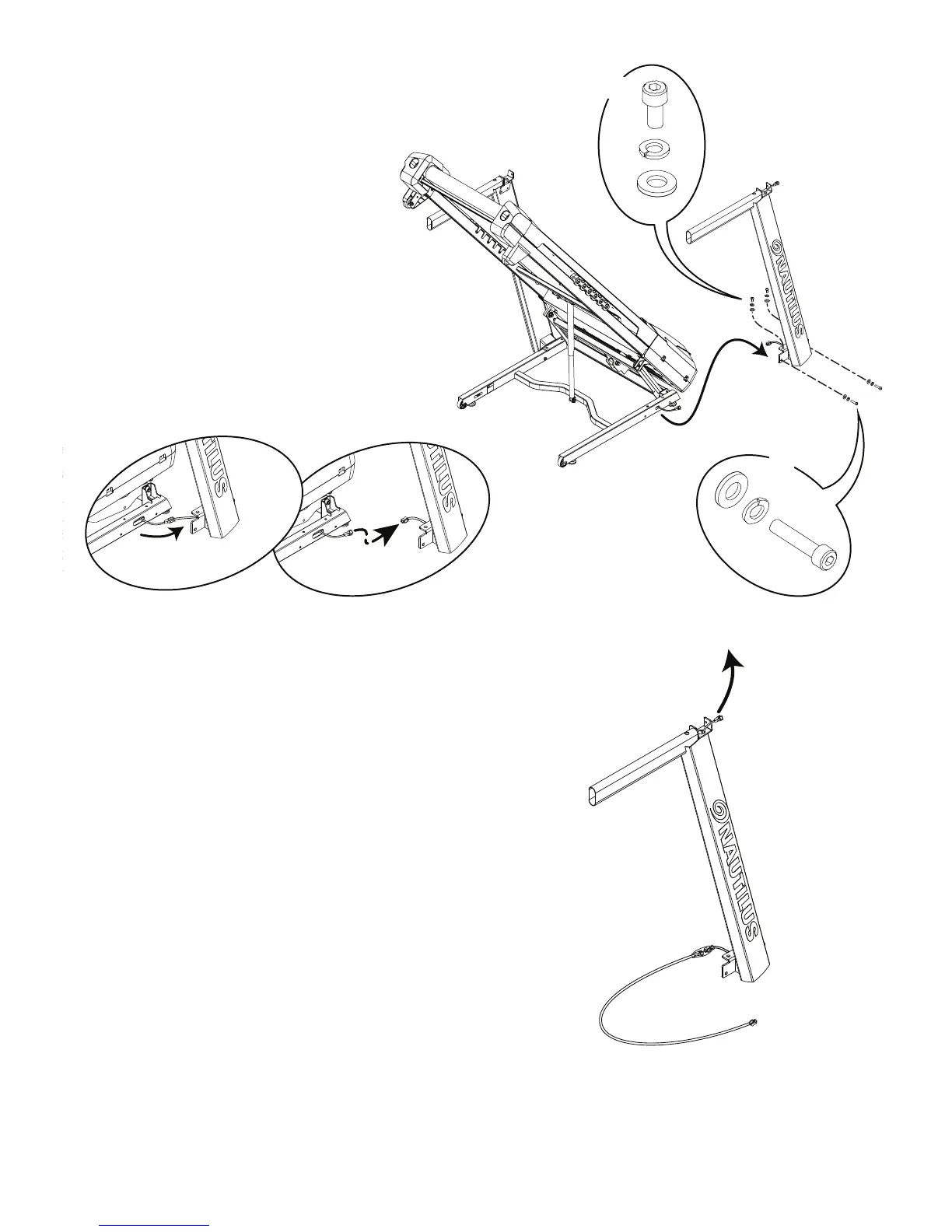

12. Using a 6mm hex wrench, remove the hardware from the Right Up-
right. Slightly remove the Right Upright from the Base Assembly exposing
the Input/Output (I./O) Cables. Disconnect the I/O Cables and remove the
Right Upright.
Note: do not crimp cables.
13. Using some cable or string, attach the upper connector of the new
Middle I/O Cable to the lower connector of the old Middle I/O Cable.
14. Gently pull the old I/O Cable from the Right Upright. This will pull out
the old I/O Cable and place the new I/O Cable.
Note: be sure the cable does not crimp when being routed.
15.ConnecttheInput/Output(I/O)CablesandAttachtheRightUprightto
Frame Assembly
Note: this step may take two people to safely hold the Right Upright while
the Cables are connected. Do not crimp the Cables. Do not fully tighten
the Hardware until the Console and Handlebar Assembly has been at-
tached.

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
