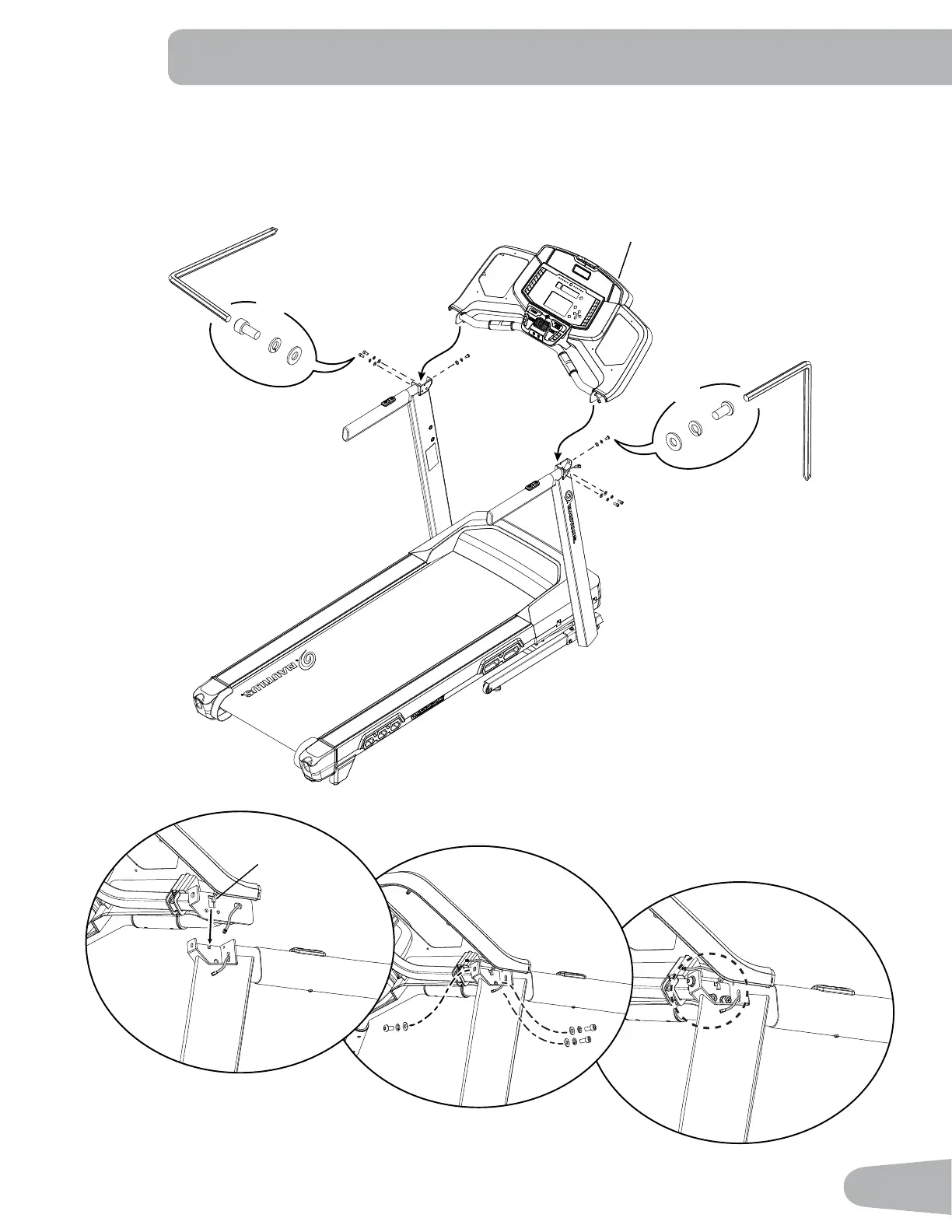

5. Attach the Console to Frame Assembly
NOTICE: Be sure that the hooks (1a) on each side of the Console are seated in the notches on the Uprights. Remove
the ziptie and rubberbands that attach the Cables. Do not crimp the Cables.
Do not fully tighten Hardware until instructed.
1
6mm
F
D
E
X4
E
F
C
X2
1a
